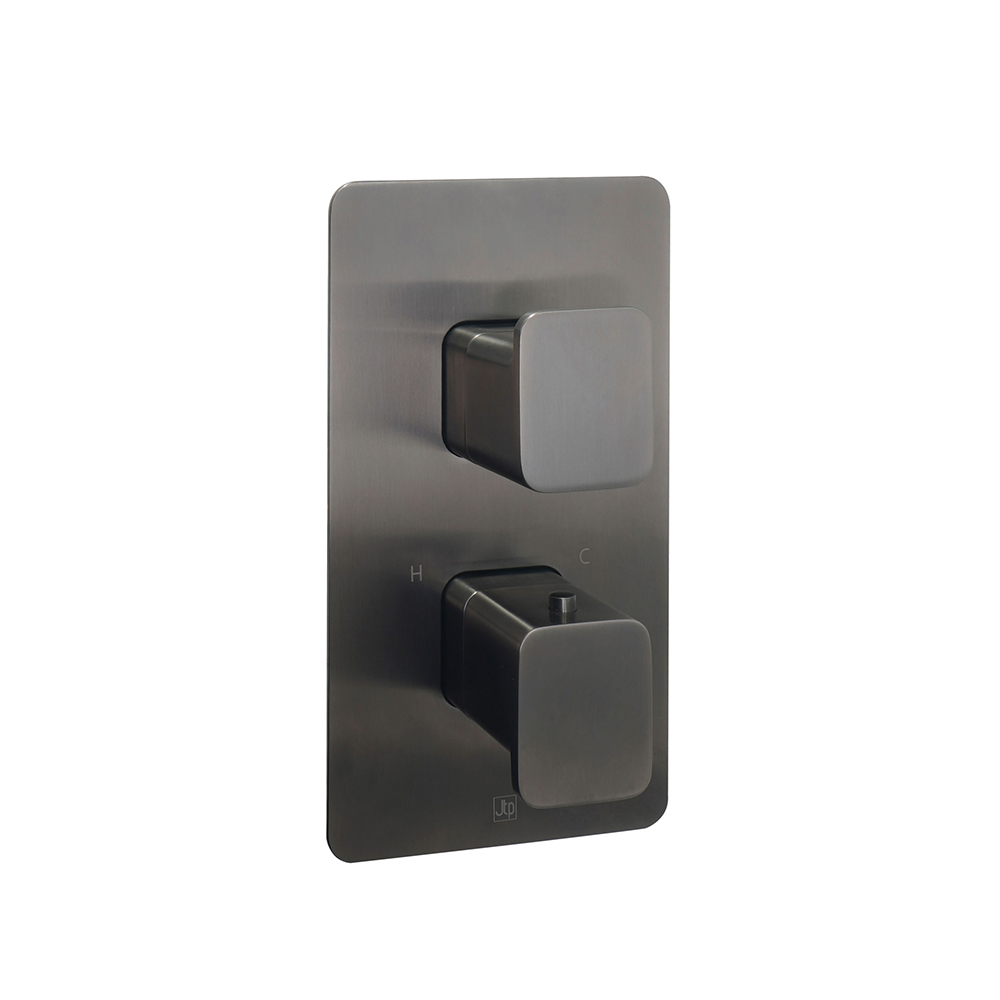

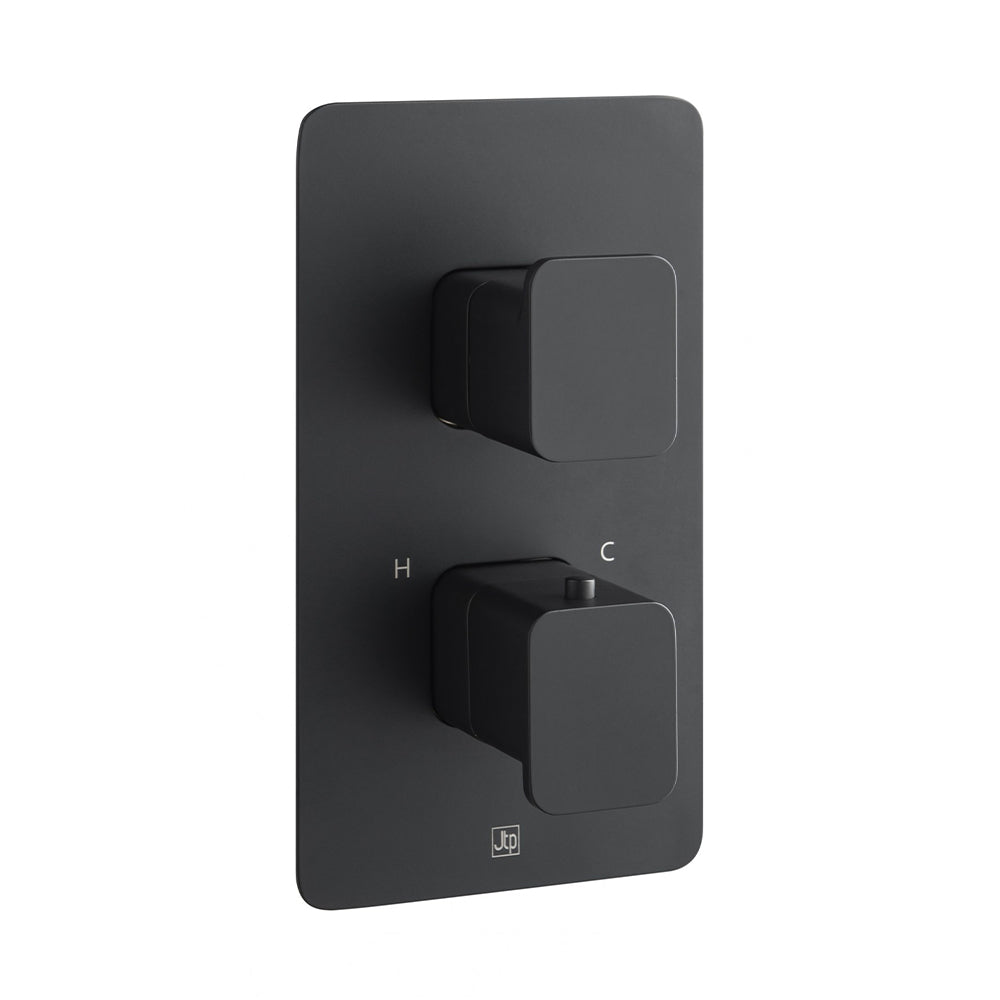

Create a sleek, built-in shower with this one outlet concealed thermostatic shower valve. Installed neatly into the wall, it keeps the area looking streamlined, while the square controls on a rectangular backplate add a sharp, modern touch.

Control is straightforward: one lever manages on/off operation, and the other adjusts the temperature. The thermostatic system helps keep the water at a consistent heat, reducing sudden changes for a more comfortable shower.

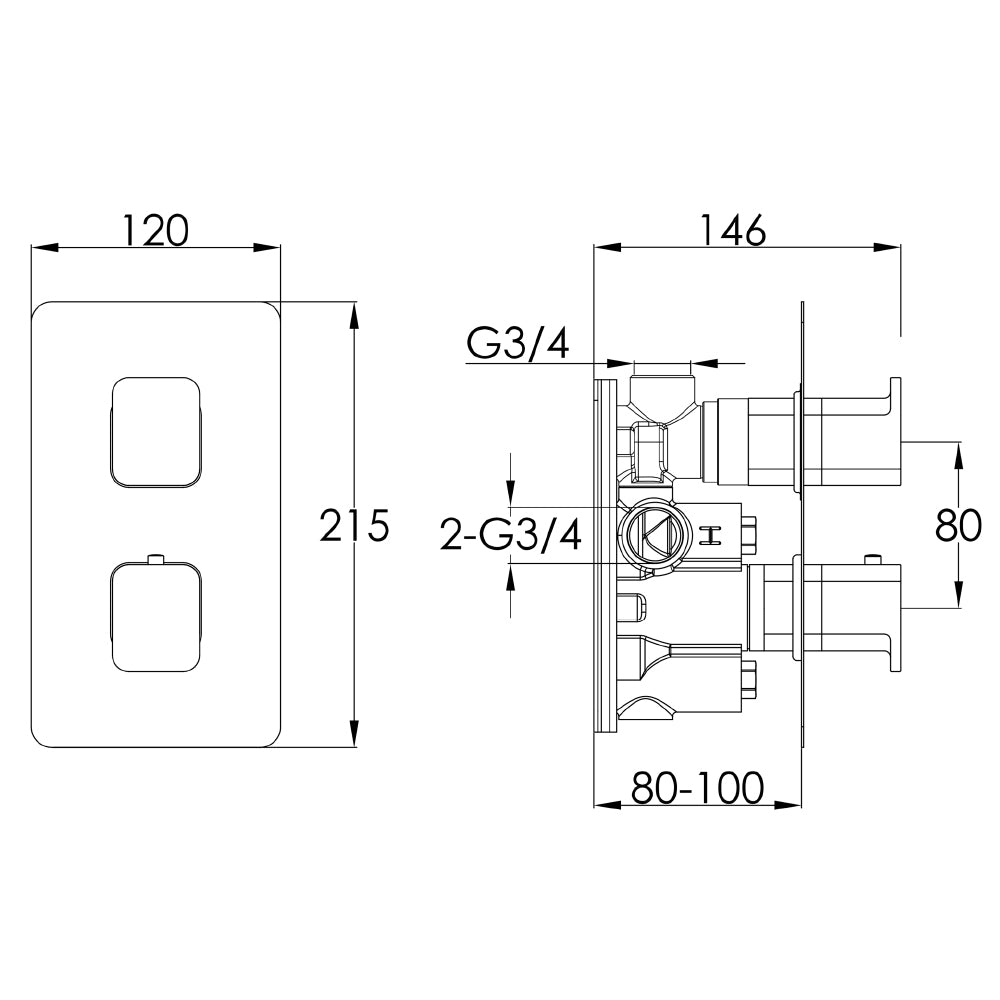

Designed for vertical installation, it measures 215mm height and 120mm in width to suit a wide range of layouts. Suitable for low-pressure systems with a minimum requirement of 0.2 bar, it also uses ceramic disc technology to support smooth, leak-resistant performance. Backed by a 15-year manufacturer’s guarantee for long-lasting reassurance.

Features & Benefits:

Modern 1-outlet concealed shower valve
Brushed black finish
Portrait layout with two controls: top for flow, bottom for temperature
Thermostatic control helps keep the temperature consistent
Ceramic disc technology helps prevent drips and leaks
Solid brass construction
Minimum water pressure: 0.2 bar
Easy-fix plate included
15-year manufacturer’s guarantee

Flow Rate:

0.2Bar: 12L/min
0.5Bar: 17L/min
1Bar: 21L/min
2Bar: 28.5L/min
3Bar: 36L/min

Product Code	TR37651BBL
Type	Concealed Shower Valves
Shape Plate	Rectangular
Material	Brass
Finish	Brushed Black
Colour	Brushed Black
Style	Modern
Mounting Type	Wall-Mounted
Number of Outlets	1 Outlets
Handle Type	Square, Single Control
Cartridge Type	Ceramic Disc
Orientation	Portrait
Minimum Water Pressure (bar)	0.2
Temperature Control	Thermostatic
Manufacturer Guarantee	15-years
