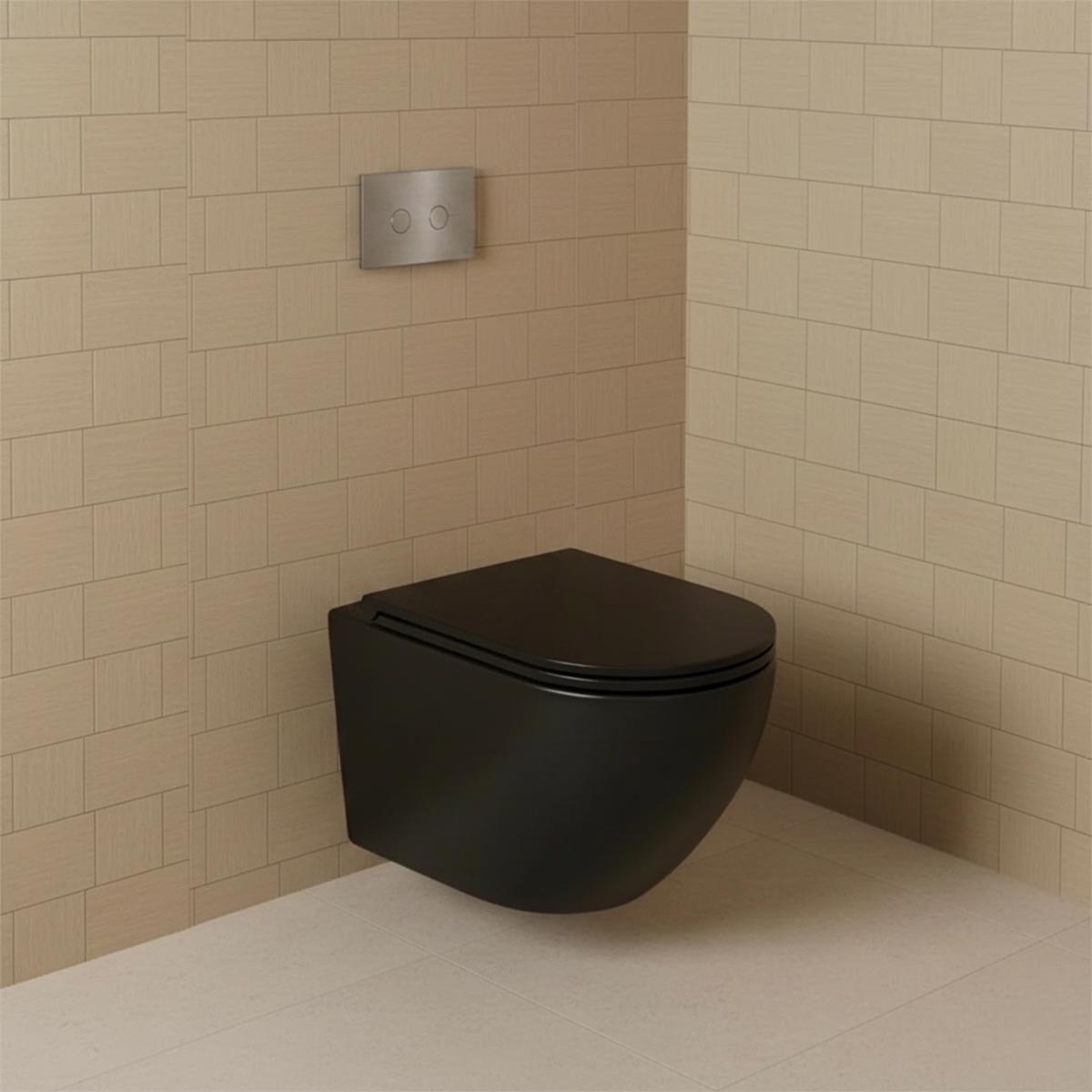

1.2m Pre-Wall W.C Cistern Frame & Wall Hung Toilet with Seat and Chrome Flush Plate

The concealed toilet set pairs a matt black toilet seat with a floor-mounted W.C. frame, integrated concealed cistern, and chrome flush plate for a coordinated modern look.

The D-shaped bowl is made from porcelain, and offers a durable, non-porous surface that is easy to maintain in everyday settings. A soft-close sandwich seat improves comfort and reduces noise, while the rimless interior helps minimise areas where residue may collect. Tornado flush technology supports stronger water movement around the bowl for a more consistent rinse, and the rear outlet is arranged for connection within the concealed service zone to keep pipework hidden.

Supporting the overall installation, the 1200mm metal frame is designed for secure pre-wall fixing and reliable load transfer for the suspended unit. Its full-height structure accommodates the cistern and related connections neatly within the framework. Brackets are provided for accurate alignment, while the W.C. bend connects the outlet to the waste run. The integrated cistern uses a dual flush mechanism with 3 litre / 6 litre settings, helping improve water efficiency during regular use.

Finished in polished chrome, the flush plate is designed for front-access installation. Its rectangular faceplate features two round pneumatic push buttons for smooth, reliable operation, while also allowing convenient access for servicing and maintenance.

Externally, only the toilet and flush plate remain visible, giving the installation a neat and uncluttered appearance suited to modern interiors.

Features & Benefits:

Wall Hung Toilet Pan:

• Wall hung design with a D-shaped profile
• Matt black finish for a bold modern touch
• Made from durable porcelain
• Rimless bowl helps simplify cleaning
• Tornado flush for effective bowl coverage
• Rear outlet for concealed waste setup
• Height: 365mm
• Width: 365mm
• Projection: 495mm
• 2-year guarantee, extendable to 15 years on registration

Concealed Cistern & W.C. Frame:

• Metal pre-wall floorstanding support frame
• Suitable for wall hung toilet installation
• Hidden cistern arrangement for a streamlined finish
• Supplied with brackets and W.C. bend
• 3L/6L dual flush for improved water efficiency
• Front flush installation only
• WRAS approved
• Height: 1200mm
• Width: 500mm
• 2-year guarantee, extendable to 5 years on registration

Flush Plate:

• Polished chrome finish
• Dual-button flush control
• Pneumatic mechanism
• Height: 145mm
• Width: 215mm
• 2-year manufacturer guarantee
