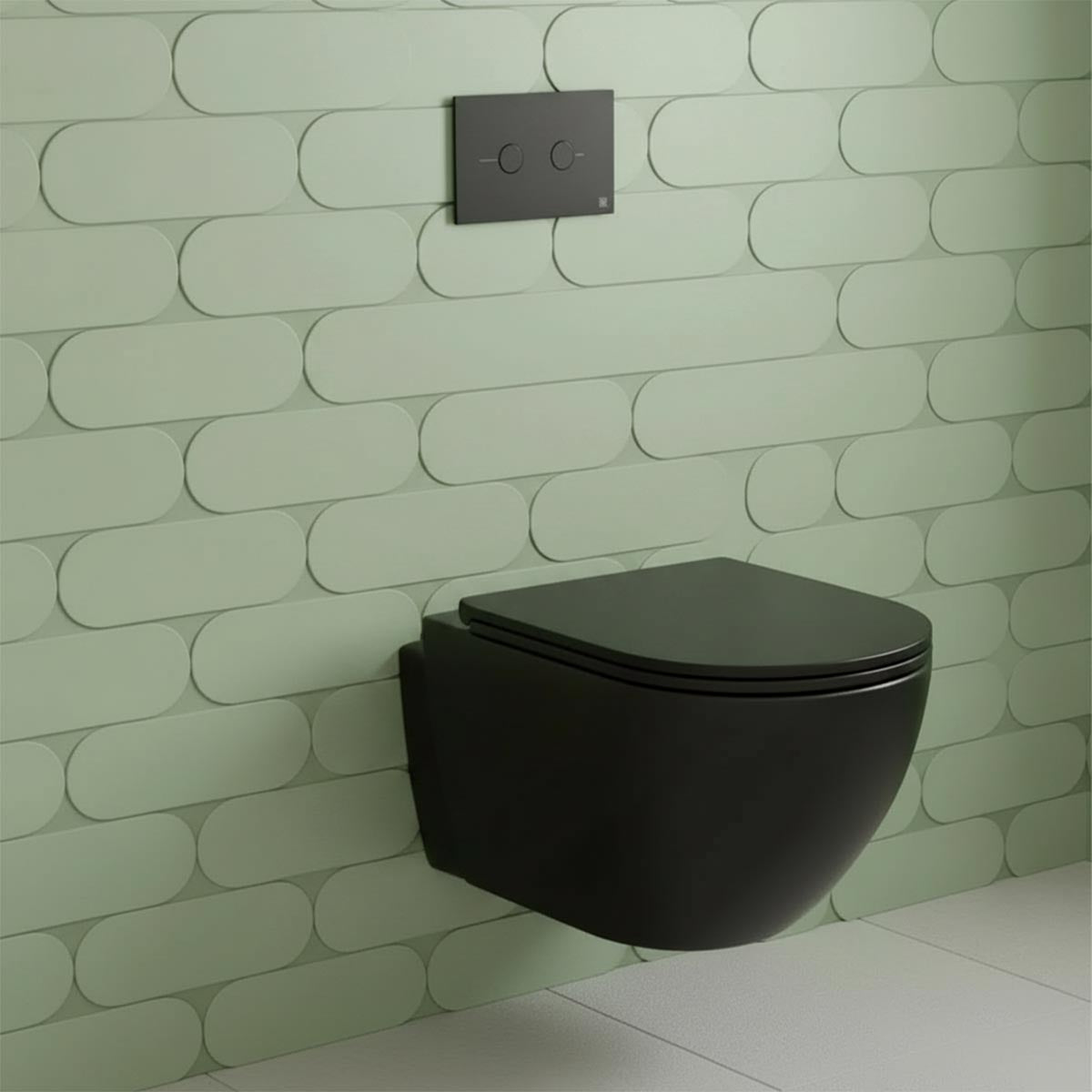

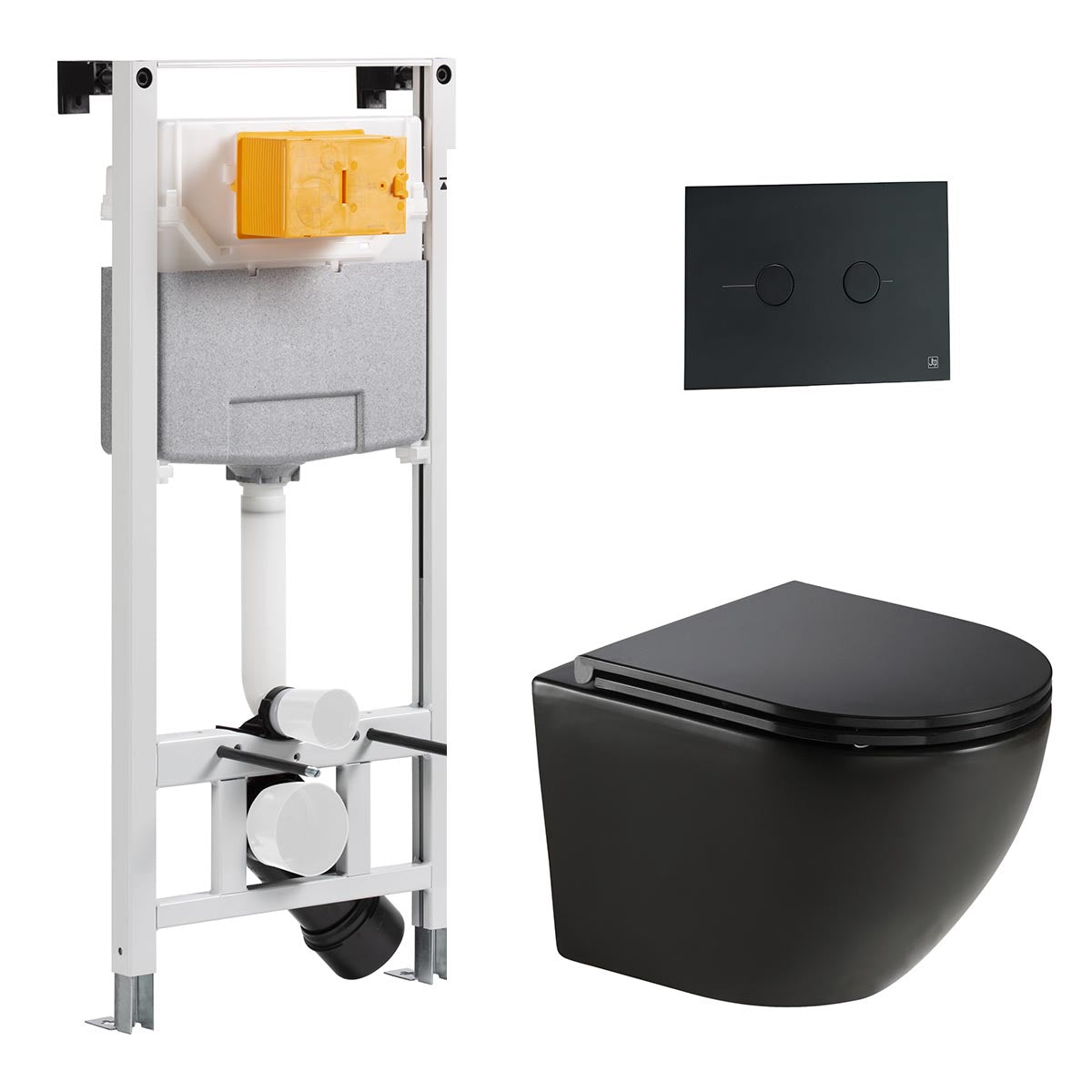

1.2m Pre-Wall W.C Cistern Frame & Wall Hung Toilet with Seat and Matt Black Flush Plate

Created to suit contemporary pre-wall bathroom layouts, the toilet set brings together a matt black wall-hung toilet pan, a 1.2m W.C. frame, concealed cistern, and matching matt black flush plate in one coordinated solution.

The D-shaped bowl is made from porcelain, offering a robust, non-porous surface that is easy to maintain and well suited to everyday use. A soft-close sandwich seat adds extra comfort and helps reduce noise, while the rimless design limits places where residue can collect. Tornado flush technology encourages better water movement around the bowl for a more consistent rinse, and the rear outlet is positioned for connection within the concealed service space to keep pipework neatly hidden.

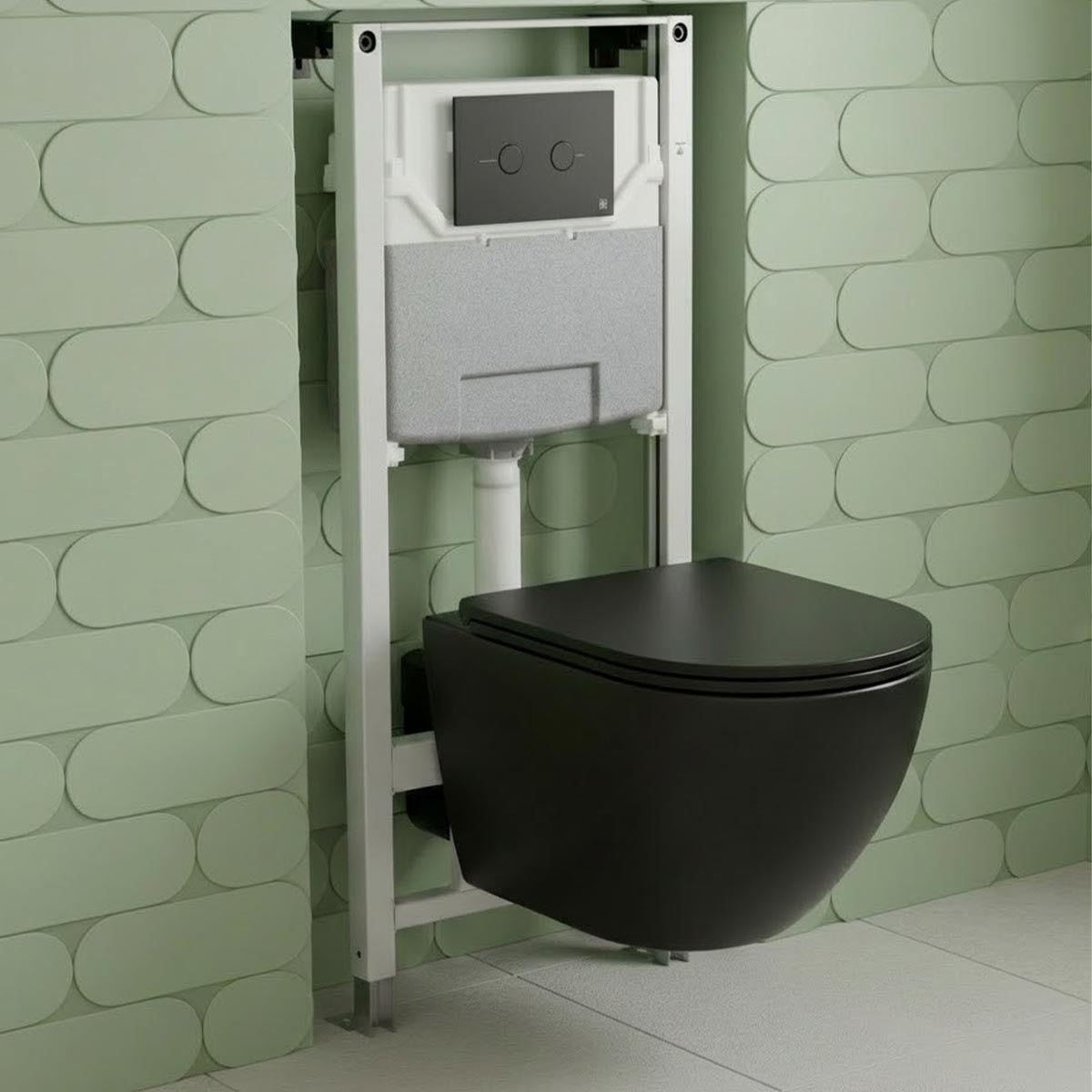

For secure installation, the 1200mm floor-mounted metal frame provides strong support for the suspended unit and is designed for pre-wall fixing. Its full-height structure houses the cistern and associated fittings within the frame, creating a stable and practical concealed setup. Brackets are provided for accurate placement, and the W.C. bend connects the outlet to the waste run. Inside the system, the integrated cistern uses a dual flush mechanism with 3 litre/6 litre options, allowing reduced or full flush volumes to support improved water efficiency.

The matt black flush plate forms the visible control point for the cistern and is intended for front access installation. Its rectangular design incorporates two round pneumatic push buttons for dependable operation and also allows access for maintenance when required. After installation, only the toilet and flush plate remain visible, creating a clean modern finish.

Features & Benefits:

Wall Hung Toilet Pan:

• D-shaped wall hung toilet
• Matt black finish
• Strong porcelain build
• Rimless bowl for easy cleaning
• Tornado flush technology
• Rear outlet for concealed waste connection
• Height: 365mm
• Width: 365mm
• Projection: 495mm
• 2-year guarantee, extendable to 15 years on registration

Concealed Cistern & W.C. Frame:

• Floorstanding pre-wall metal support frame
• Made for wall hung toilet installation
• Concealed cistern for a cleaner look
• Includes brackets and W.C. bend
• Dual flush 3L/6L cistern
• Front flush installation
• WRAS approved
• Height: 1200mm
• Width: 500mm
• 2-year guarantee, extendable to 5 years on registration

Flush Plate:

• Dual-button flush plate
• Matt black finish
• Pneumatic flush operation
• Height: 145mm
• Width: 215mm
• 2-year manufacturer guarantee
