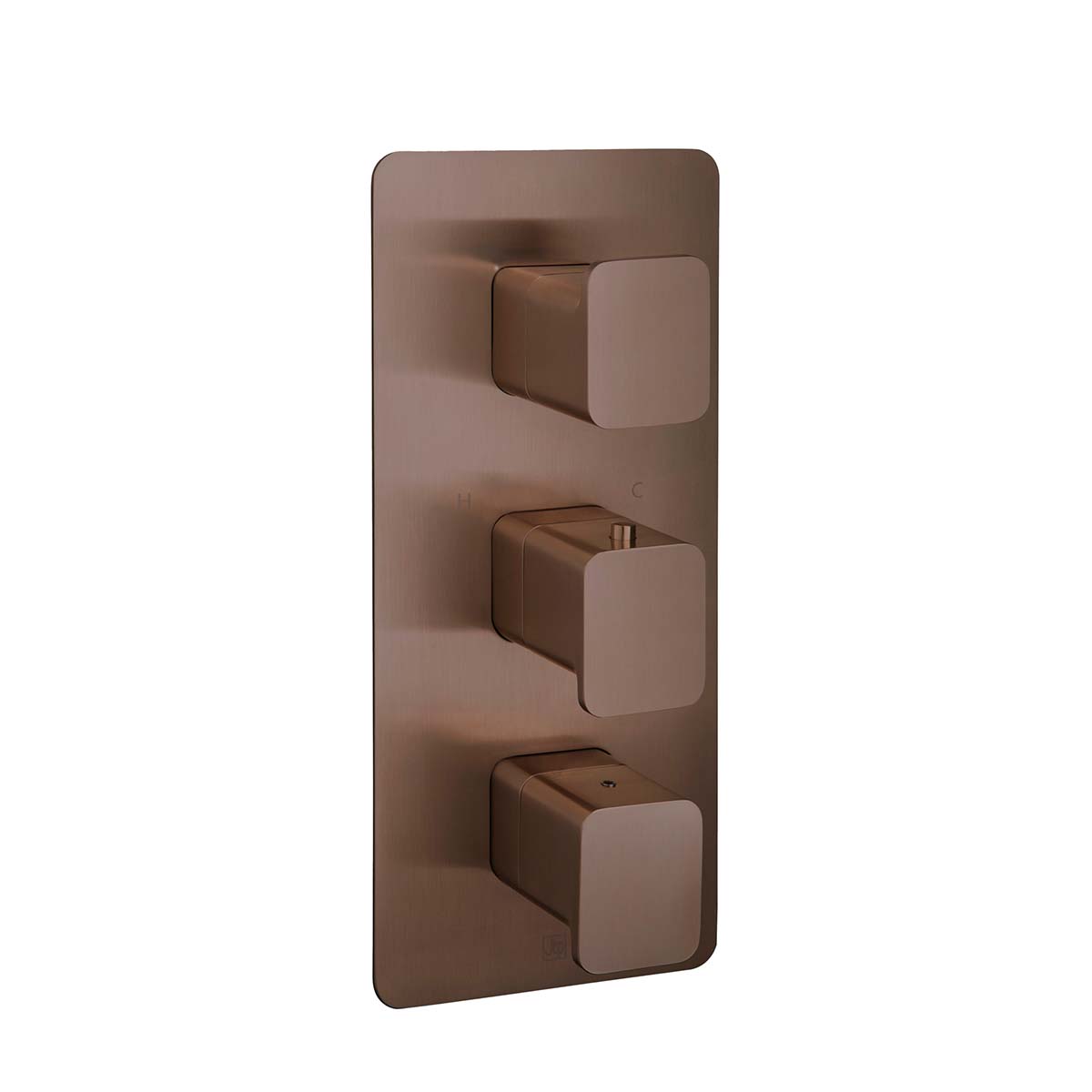

Create a well-organised shower area with this triple control thermostatic shower valve, designed to manage several functions from one central fitting. The three handles are spaced 80mm apart, with each serving a specific purpose: one adjusts the temperature, another regulates the water flow, and the third switches the supply between connected 3 outlets such as an overhead rainfall head, riser rail, handset all of which are sold separately.

The thermostatic system maintains the chosen setting and limits unexpected hot or cold changes for a more comfortable experience. Made from brass with a brushed bronze finish, the valve is installed vertically and measures 275mm in height, 120mm in width and 146mm in projection. WRAS approved, it operates from a minimum water pressure of 0.5 bar.

Features & Benefits:

Solid brass with a brushed bronze finish
Triple square controls for 3-outlets
Separate temperature, flow and diverter operation

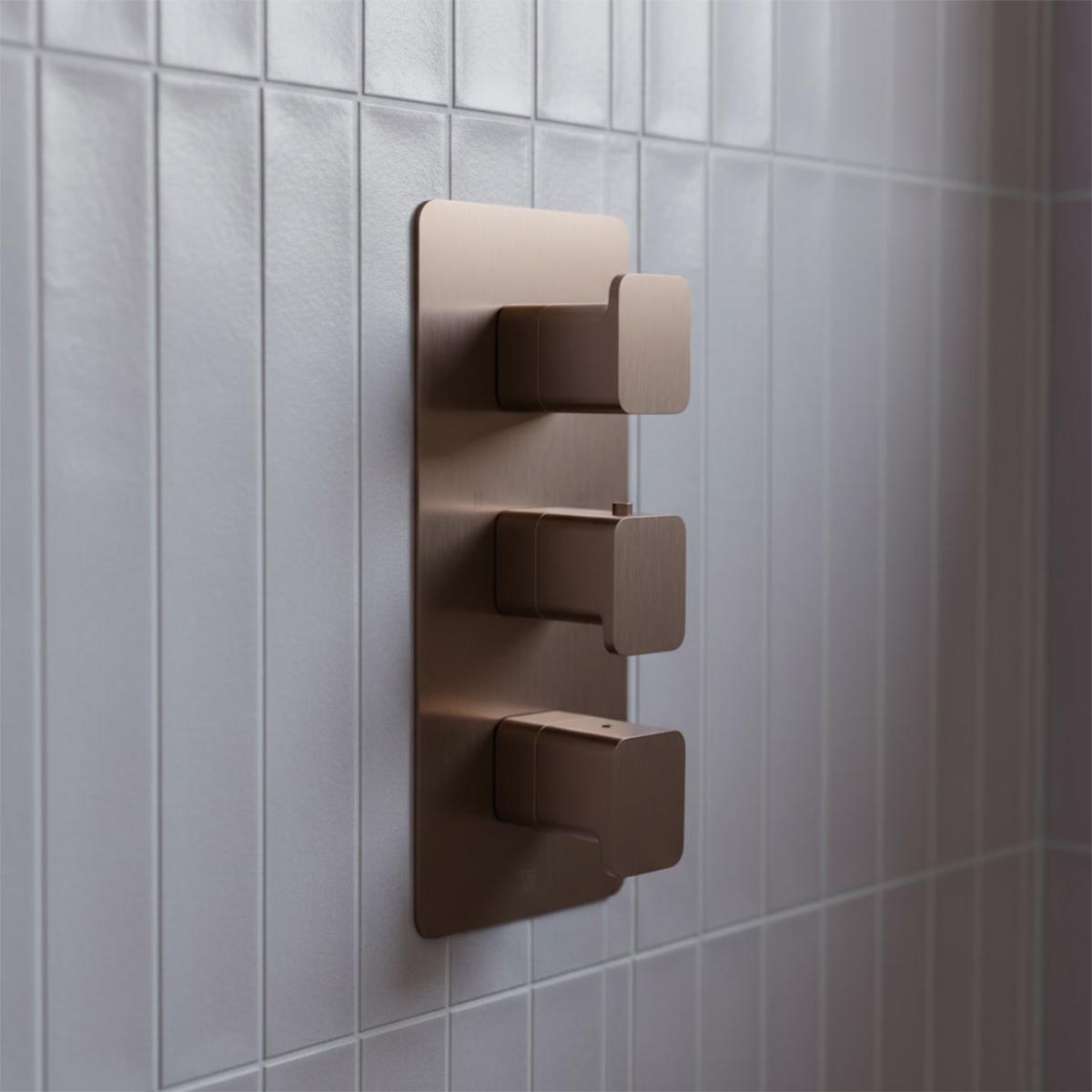

Concealed vertical wall installation

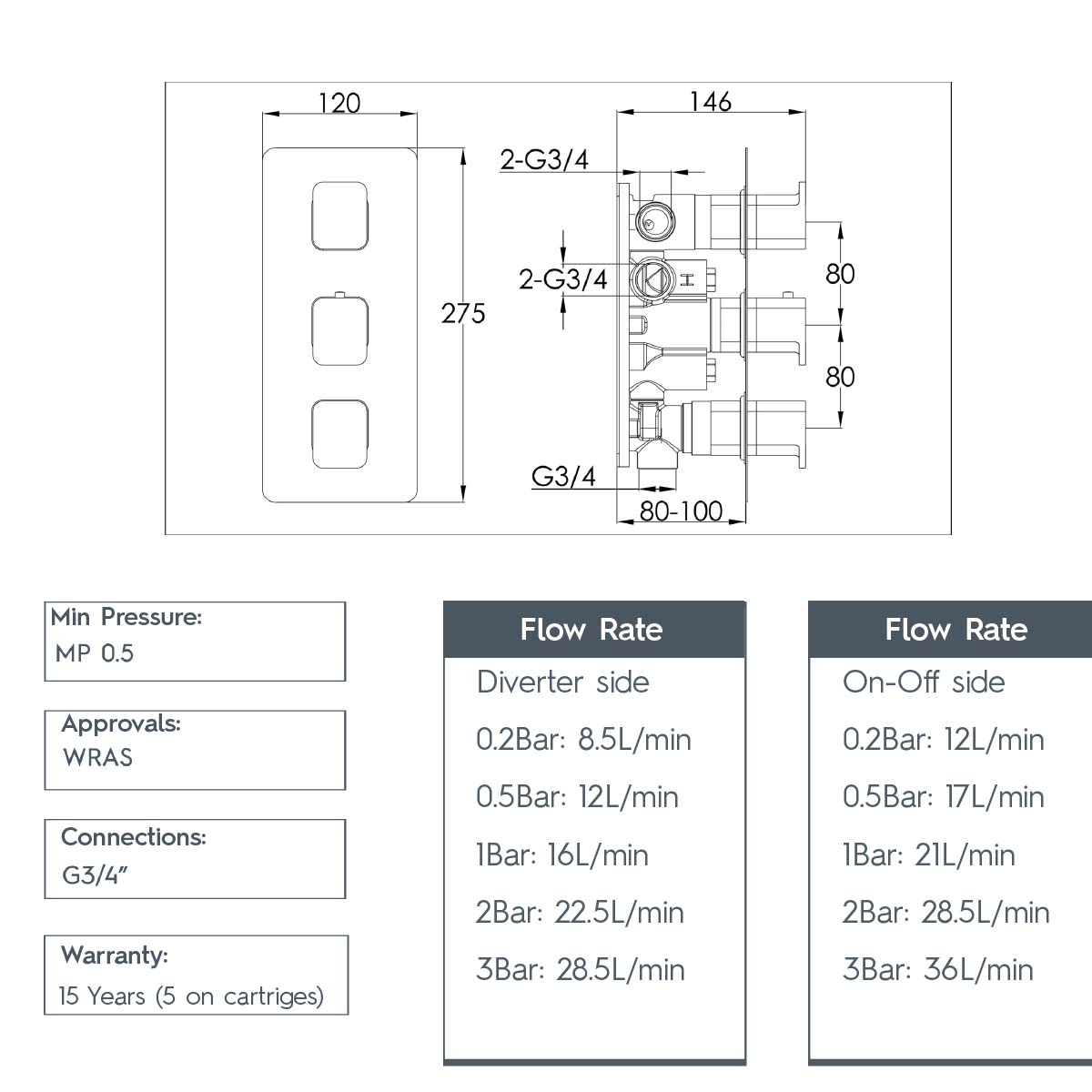

Height: 275mm
Width: 120mm
Projection: 146mm
Handle spacing: 80mm
WRAS approved
Minimum water pressure of 0.5 bar

Flow Rate (On-Off side):

0.2Bar: 12L/min
0.5Bar: 17L/min
1Bar: 21L/min
2Bar: 28.5L/min
3Bar: 36L/min

Flow Rate (Diverter side):

0.2Bar: 8.5L/min
0.5Bar: 12L/min
1Bar: 16L/min
2Bar: 22.5L/min
3Bar: 28.5L/min

Product Code	TR31691BRZ
Type	Concealed Shower Valves
Shape Plate	Rectangular
Material	Brass
Finish	Brushed Bronze
Colour	Bronze
Style	Modern
Mounting Type	Wall Mounted
Number of Outlets	3 Outlets
Handle Type	Square, Triple Control
Cartridge Type	Ceramic Disc
Height (mm)	275
Width (mm)	120
Projection (mm)	146
Orientation	Portrait
Minimum Water Pressure (bar)	0.5
Temperature Control	Thermostatic
Manufacturer Guarantee	15 years
