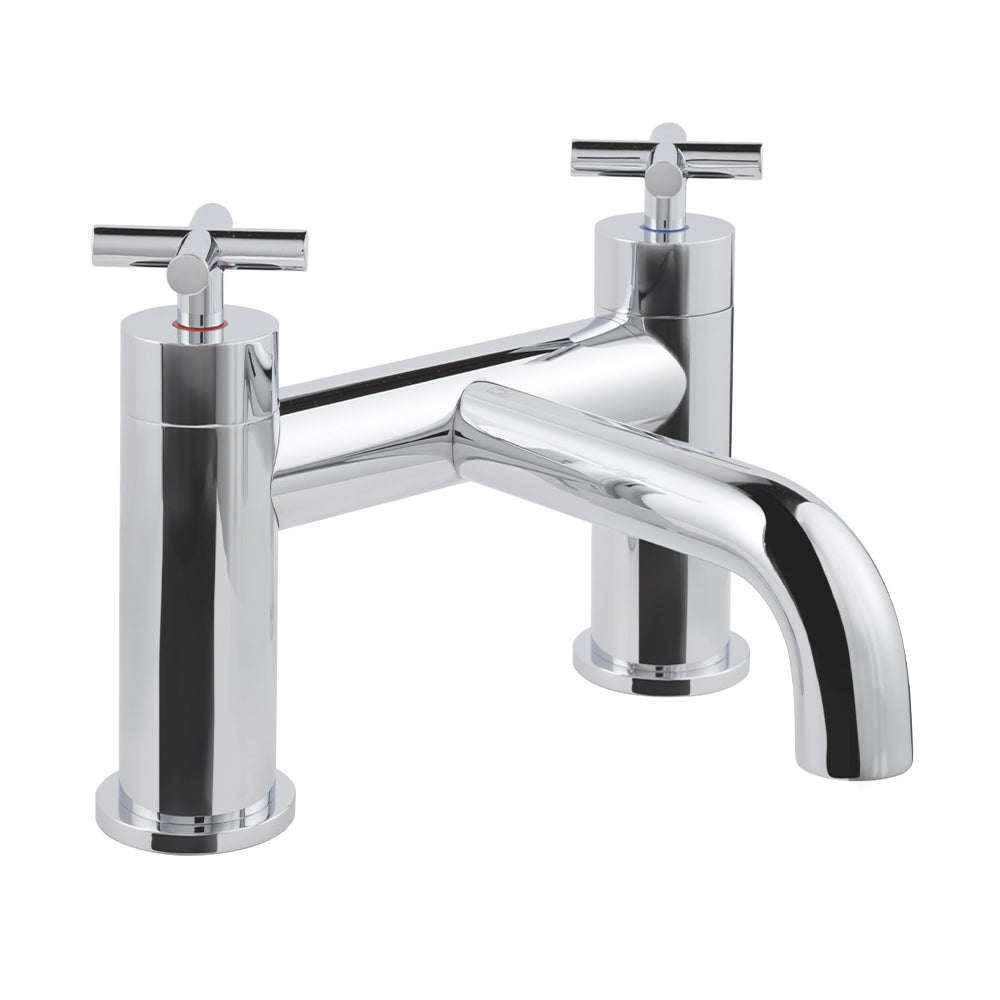

Modern Deck Mounted Bath Filler Tap – Chrome

For a neat, well-proportioned setup for the bathtub, this brass bridge style 2-hole deck mounted bath mixer tap is set at 180mm centres and has a 120mm projection to position the spout comfortably over the tub. Standing 185mm high, it is suitable for systems operating from a minimum water pressure of 0.5 bar.

The design is distinctly marked by the dual crosshead handles and a curved spout, giving this deck mounted bath filler a distinguished charm. The 2 tap hole design features a single outlet and regulates water and temperature smoothly, avoiding the hassle of complications of fluctuations and ridding all inconsistencies.

Manufactured using high-quality brass, the bath filler mixer tap projects an elevated level of durability with its rust and corrosion-resistant properties.

Those choosing a single-hole installation can opt for a floor mounted bath tap, available separately with a matching chrome bath waste.

Features & Benefits:

• Modern polished chrome finish
• Solid brass construction
• Contemporary bridge-style bath filler
• Twin crosshead handles control hot and cold supplies
• Manual adjustment of water flow and temperature
• Curved, fixed spout
• Ceramic disc technology supports smooth, drip-resistant operation
• Two-hole deck-mounted installation

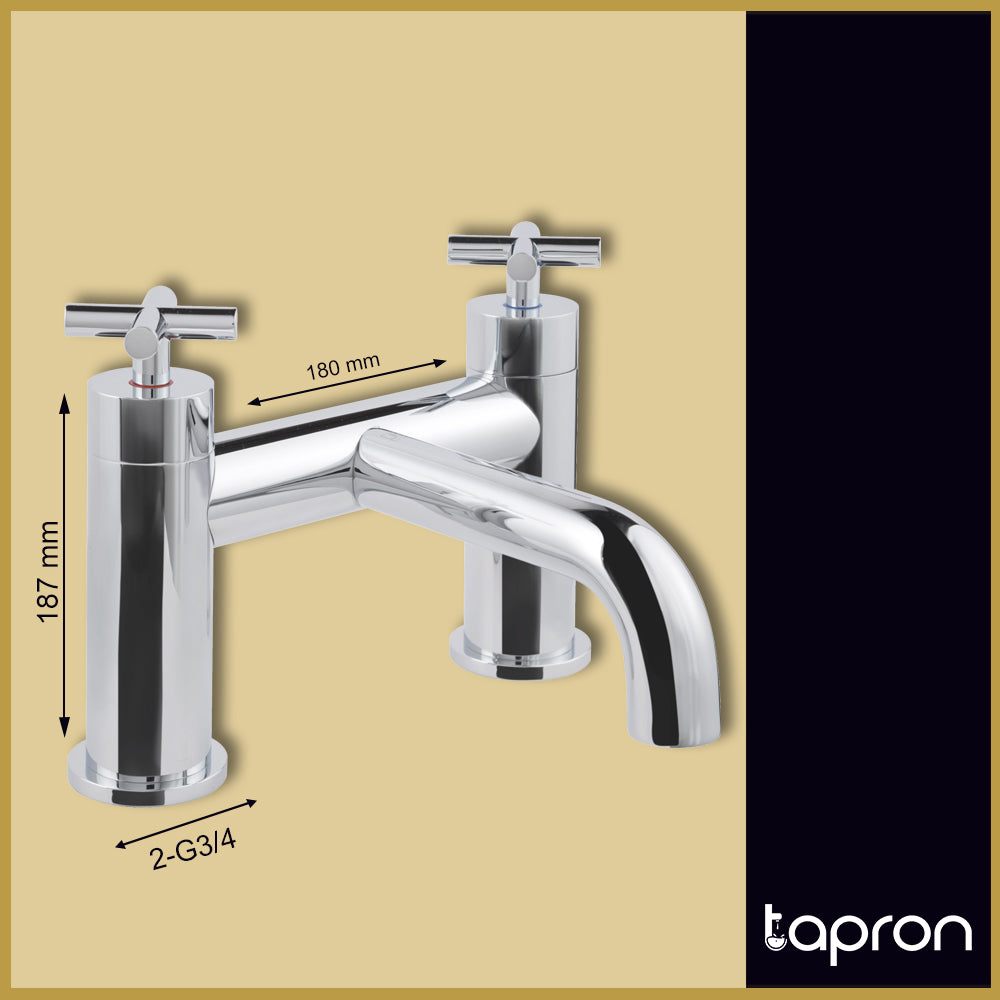

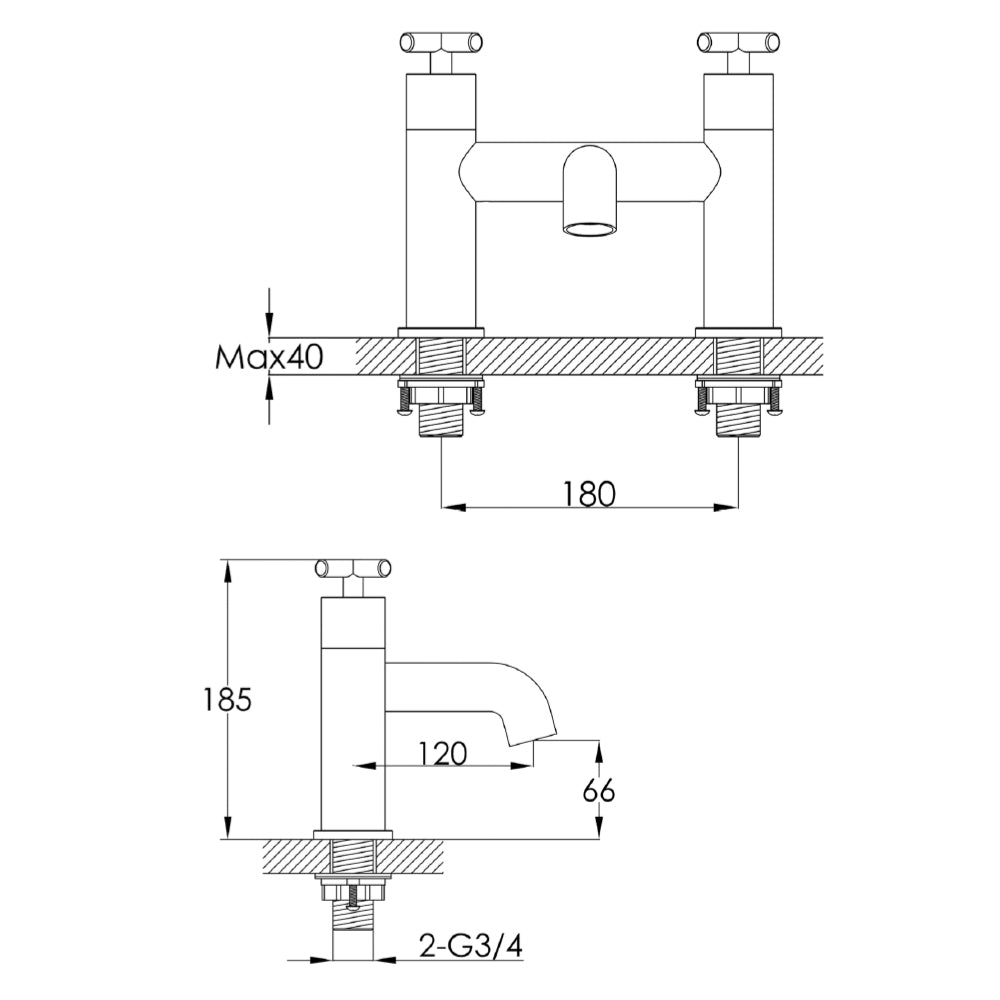

• Tap centres: 180mm
• Height: 185mm
• Projection: 120mm
• G3/4" threaded connections
• Minimum operating pressure: 0.5 bar
• 15-year manufacturer’s guarantee

Flow Rate:

• 0.5Bar: 5.9L/min
• 1Bar: 8.3L/min
• 2Bar: 12L/min
• 3Bar: 16L/min
