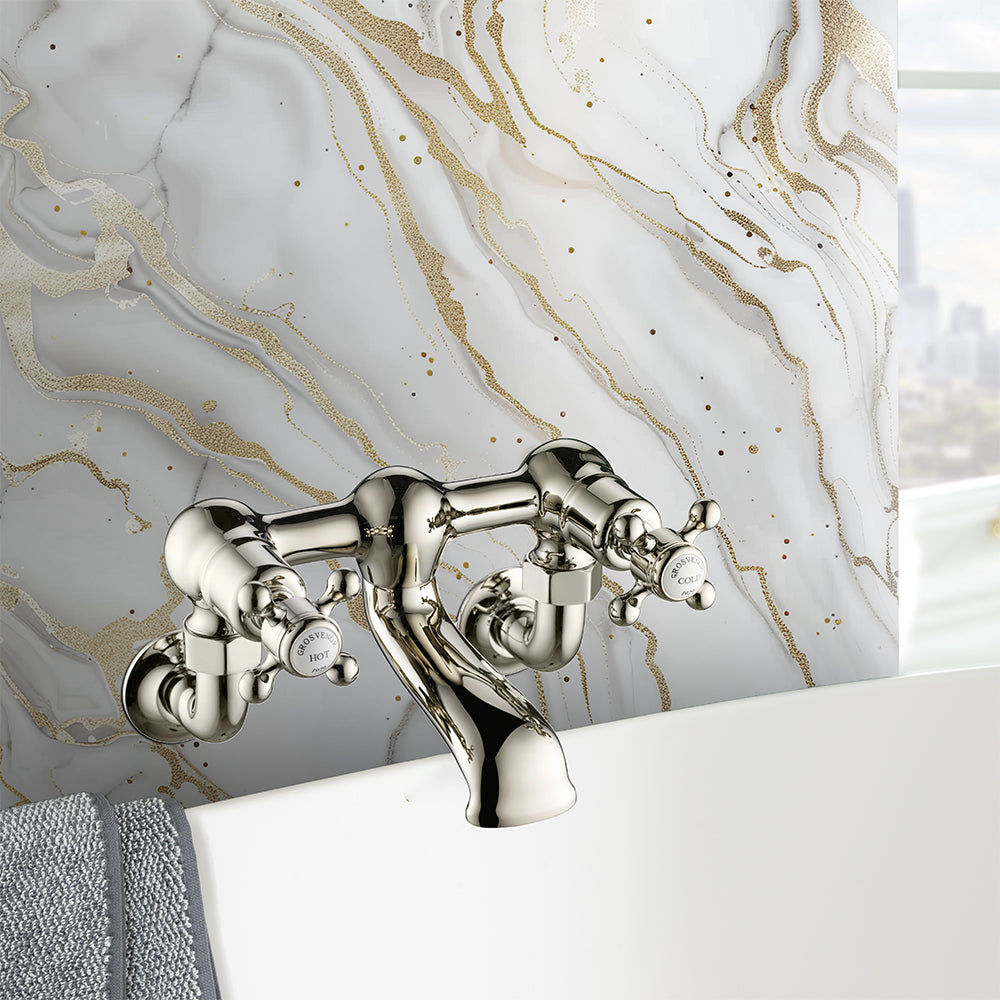

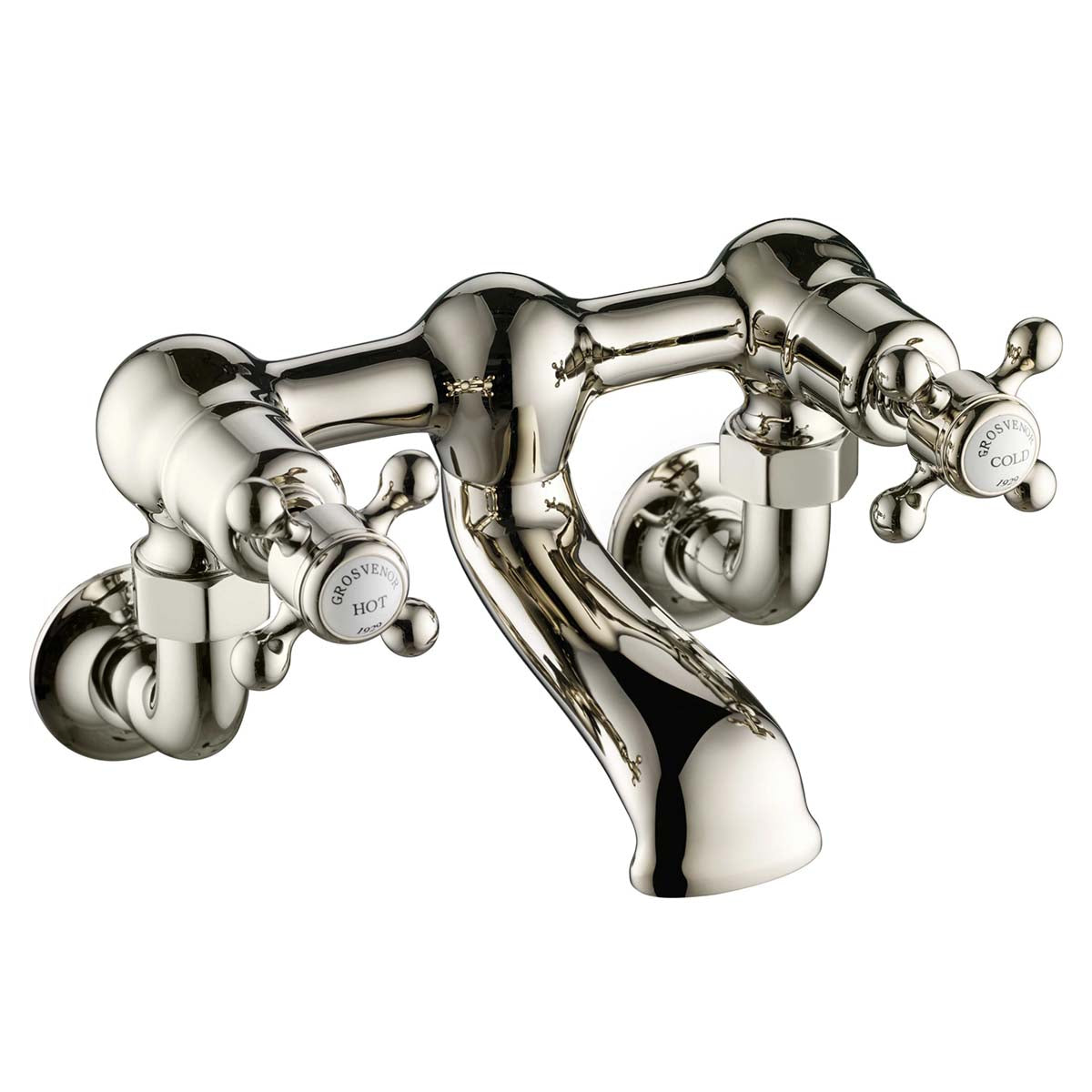

Made for bathrooms that love a traditional finish with a clean, confident feel, this nickel bath tap delivers timeless character with dependable performance. Round and classically styled, the curved fixed spout delivers a smooth, steady flow through one water outlet. Solid brass construction with a polished surface keeps the finish looking smart.

Dual control operation allows hot and cold to be adjusted separately, using crosshead handles topped with white ceramic caps to clearly mark each temperature side. Designed for a wall-mounted, 2-hole installation, the setup keeps the bath surround looking neat and uncluttered. With a height of 126mm and a projection of 1185.5mm, the proportions create a confident presence and comfortable reach. Suitable for a minimum water pressure of 0.5 bar, compatibility is broadened across many household systems. Protected with a manufacturing guarantee of 15-years.

Features and Benefits:

Made of brass with a nickel finish
Wall mounted installation
Height: 126mm
Projection: 1185.5mm
Minimum water pressure 0.5
Manufacturer’s guarantee: 15 years

Flow Rate Bath:

0.2Bar: 9L/min
0.5Bar: 10.5L/min
1Bar: 12.5L/min
2Bar: 17L/min
3Bar: 20.2L/min

Product Code	TR76223WMNK
Type	Bath Fillers, Bridge Bath Taps
Shape	Round
Material	Brass
Colour	Nickel
Style	Traditional
Mounting Type	Wall-Mounted
Tap Holes	2 Holes
Spout Type	Curved Spout, Fixed Spout
Number of Outlet	1 Outlet
Handle Type	Crosshead, Dual Control
Cartridge Type	Ceramic Disc
Height(mm)	126
Projection(mm)	1185.5
Minimum Water Pressure (bar)	0.5
Temperature Control	Manual
Manufacturer Guarantee	15-years
