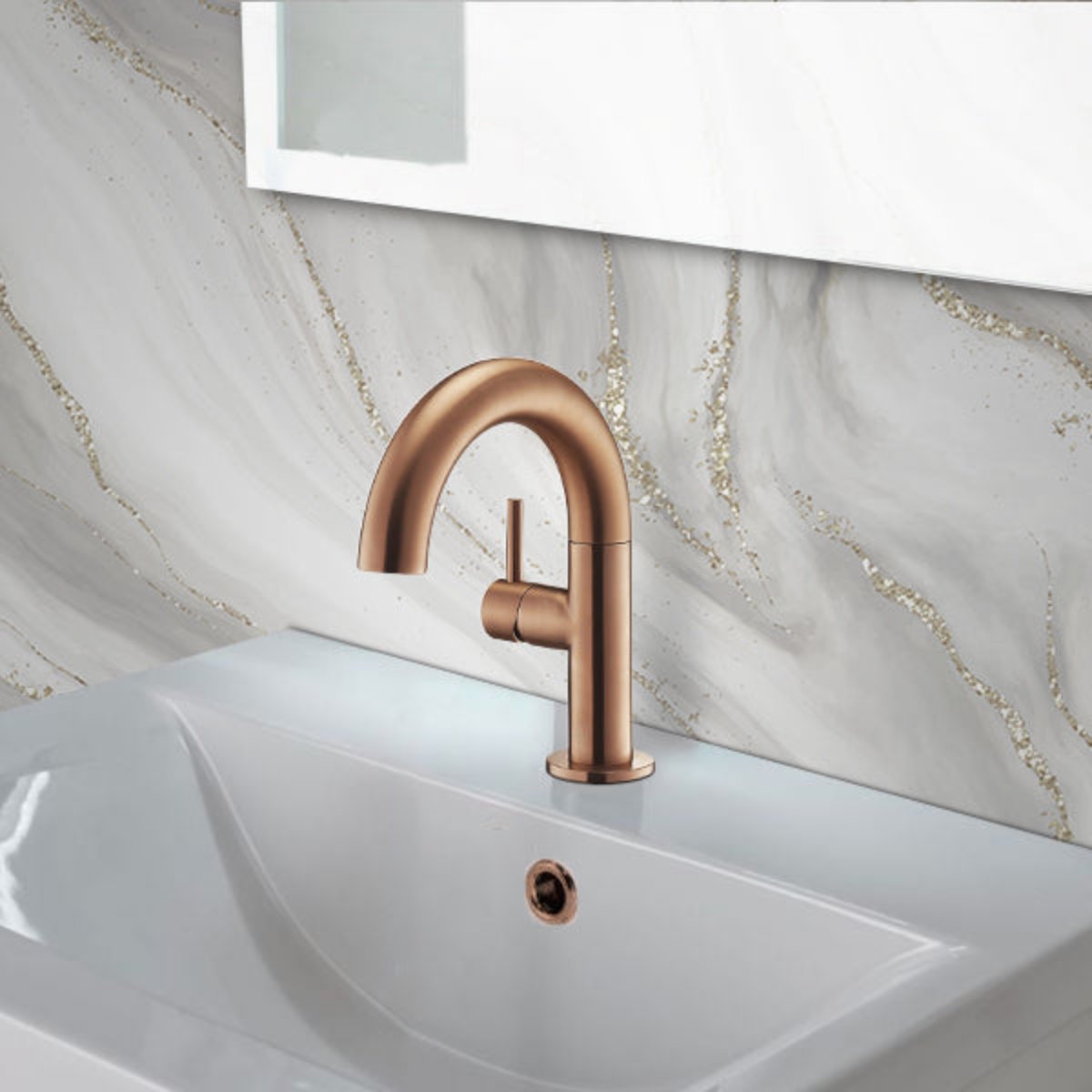

Deck Mounted Brushed Bronze Side Lever Basin Mixer Tap

Designed for deck-mounted installation, this brushed bronze mono basin mixer tap with swivel spout rotates through 360°, giving you plenty of flexibility around the bowl whether you are washing your hands, rinsing the basin or moving the spout aside while cleaning. The round spout measures 30mm across, stands 200mm high and projection of 140mm, giving it a tall, neatly curved profile.

All water control is handled from the side lever. Moving the handle through its 25° operating range turns the flow on or off, while a separate 90° up-and-down movement adjusts the mix between hot and cold. This makes the single lever basin tap simple to operate from one control, without the need for separate temperature handles.

Made from brass with a PVD coating, the tap with swivel spout sits on a 52mm round base plate for a clean finish at the mounting point. As a deck-mounted design, it is installed directly through the basin or worktop, with the plumbing concealed underneath and 1/2" connections linking it to the water supply.

The bronze basin tap operates from a minimum water pressure of 0.5 bar. A matching twin lever version is also available with the same rotating spout design for anyone who prefers separate hot and cold controls. To complete the basin area, a universal slotted and unslotted waste and bottle trap can be purchased separately.

Features & Benefits:

• Modern brushed bronze finish
• Solid brass construction with protective PVD coating
• Single-hole deck-mounted installation
• Single lever controls both flow and temperature
• Curved 360° swivel spout for flexible positioning
• Ceramic disc technology supports smooth, drip-resistant operation
• 52mm round base plate provides a neat mounting finish
• Height: 200mm
• Projection: 140mm
• Spout diameter: 30mm
• G1/2" threaded connections
• Minimum operating pressure: 0.5 bar
• 15-year manufacturer’s guarantee

Flow Rate:

• 0.2Bar: 3.8L/min
• 0.5Bar: 4.7L/min
• 1Bar: 5.4L/min
• 2Bar: 7.6L/min
• 3Bar: 9L/min
