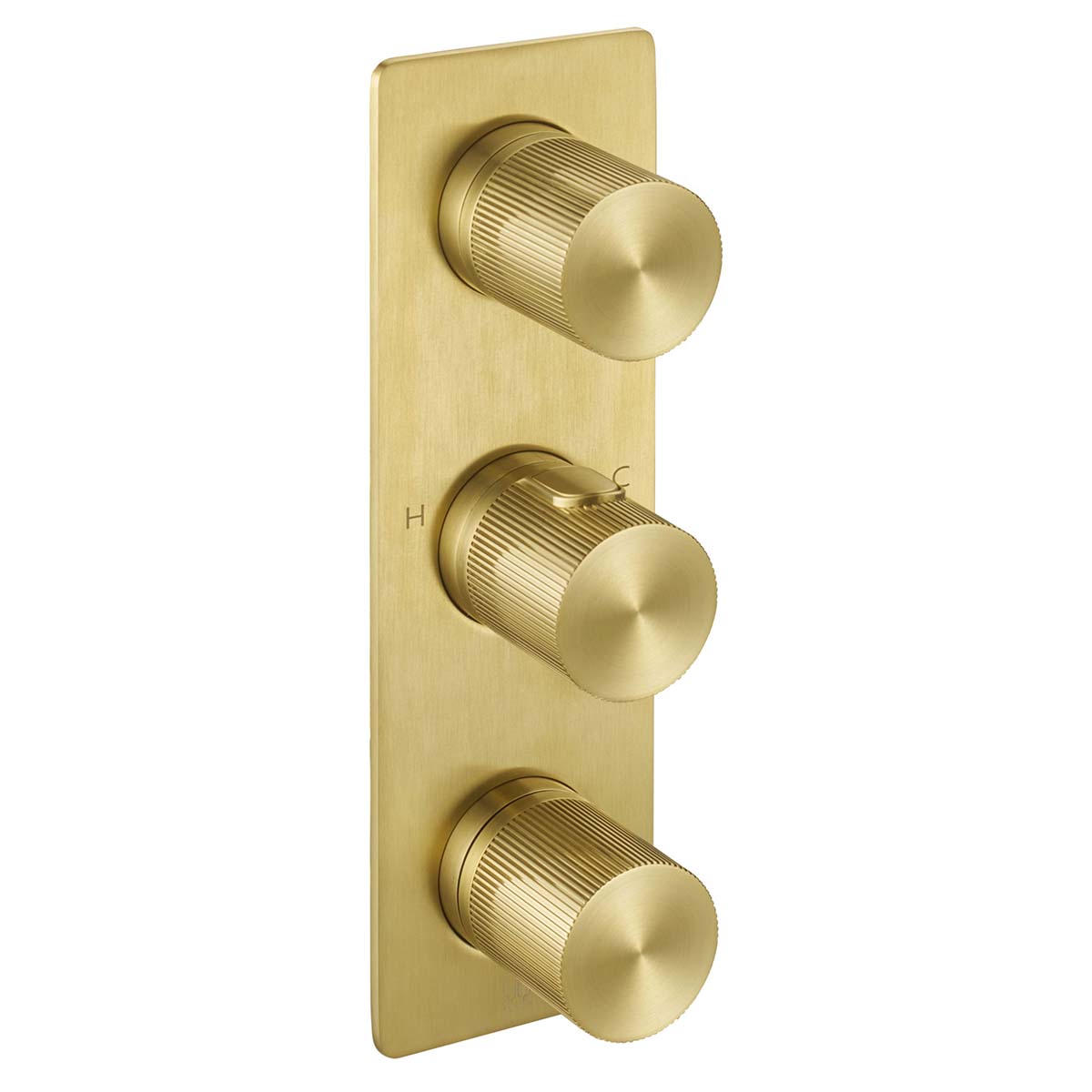

Brushed Brass Concealed Thermostatic 2 Outlet Shower Valve with 3 Handles

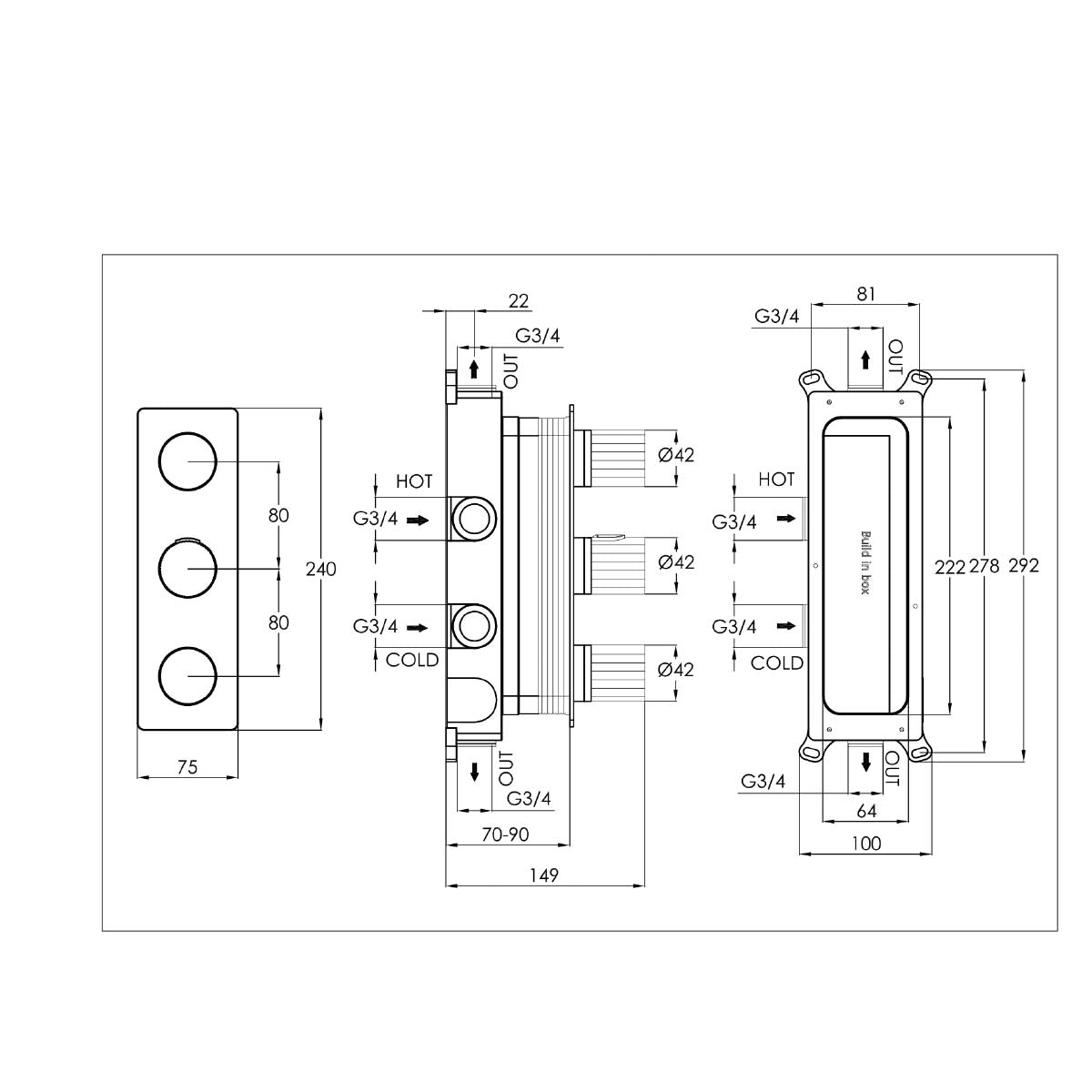

Designed for concealed wall installation, this brushed brass 2 way thermostatic shower valve keeps its working components hidden behind the finished surface, leaving only the controls and rectangular backplate visible. Made from durable brass, it measures 240mm high, 75mm wide and 149mm in projection, offering a neat, modern appearance.

The central dial adjusts the water temperature and features a push button to override the preset safety limit when needed. The other two controls independently manage water flow to fittings such as an overhead shower head with arm and a riser rail kit with handset, both sold separately. Each of the three round handles measure 42mm in diameter, are spaced 80mm apart and feature knurled edges for a secure grip, even with wet hands.

WRAS approved for compliance with recognised water fittings standards, the concealed shower mixer valve features a thermostatic mechanism that helps maintain a steady water temperature by balancing the hot and cold supplies. Its ceramic disc cartridge provides smooth operation, while the G1/2" connections and minimum water pressure of 0.5 bar make it suitable for compatible plumbing systems.

Features & Benefits:

• Modern, brushed brass finish
• Sturdy brass material for lasting quality
• 2-outlet thermostatic mixer for flexible shower arrangements
• Three round knurled grips ensure comfortable handling
• Dedicated central control with safety override for temperature adjustment
• Thermostatic regulation helps maintain a steady heat level
• Height: 240mm
• Width: 75mm
• Projection: 149mm
• Wall-recessed installation with a vertical rectangular backplate
• Ceramic disc cartridge minimises drips and supports reliable operation
• G1/2" threaded inlets for convenient plumbing
• Requires a minimum supply pressure of 0.5 bar
• WRAS-approved design meets recognised water standards
• Manufacturer's guarantee of 15 years, additional 5-year cover for the cartridge

Flow Rate:

• 0.2Bar: 9L/min
• 0.5Bar: 12L/min
• 1Bar: 16L/min
• 2Bar: 23Lmin
• 3Bar: 29L/min
