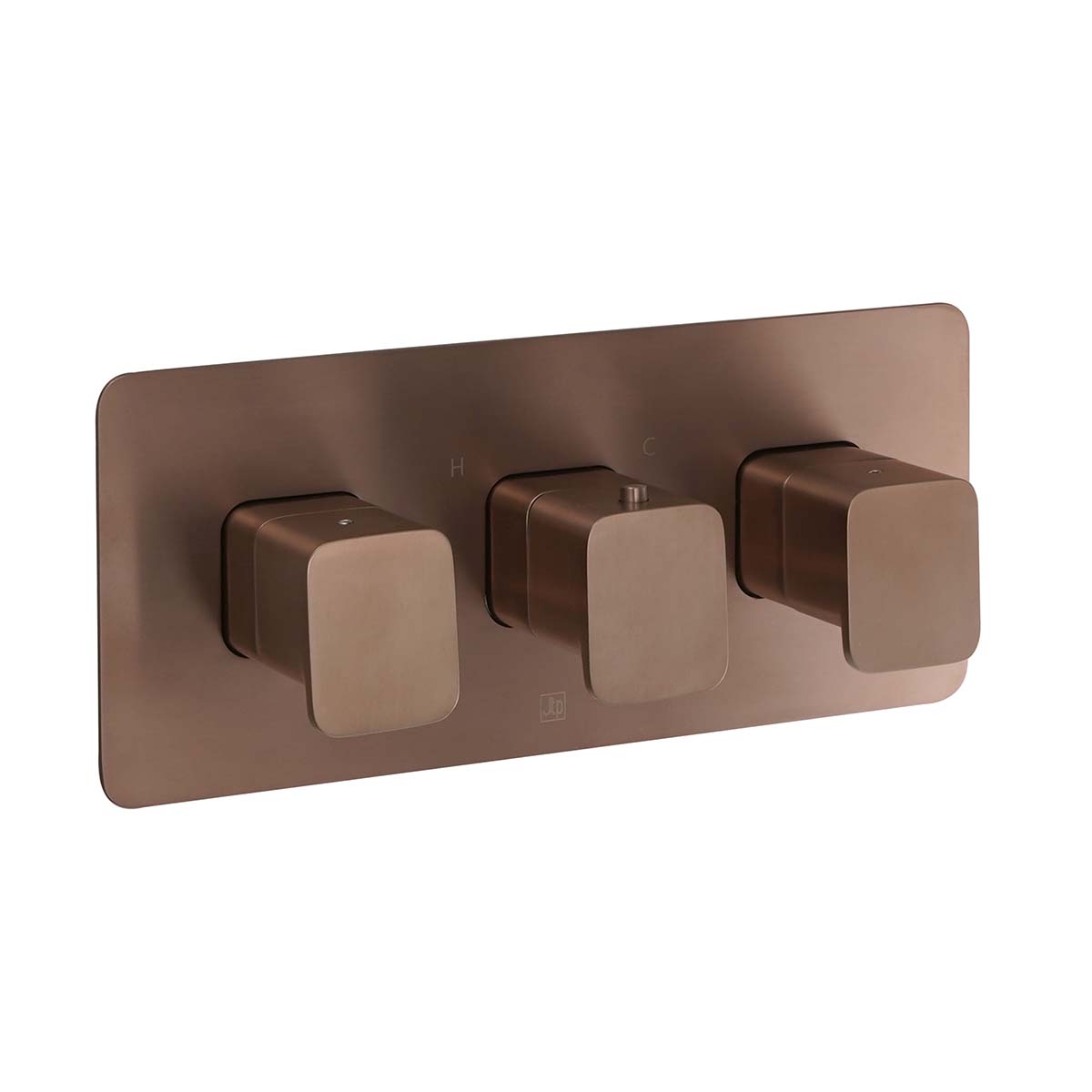

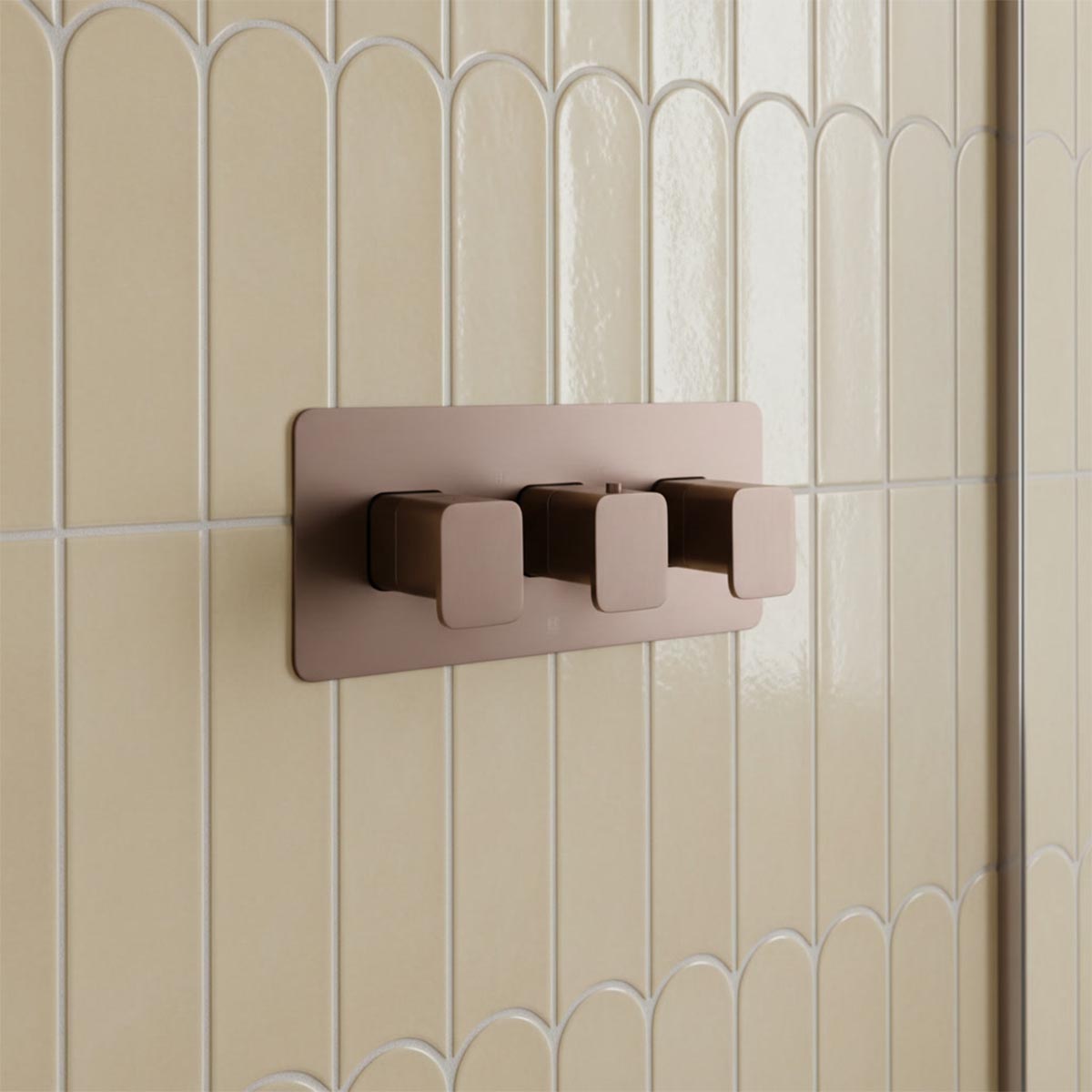

Set horizontally into the wall, this brushed bronze square concealed shower valve creates a clean, built-in arrangement with only the rectangular backplate and three handles on display, positioned at 80mm intervals for a balanced layout.

Each control performs a different function. One regulates the water flow, another sets the preferred temperature, and the third switches the supply between three connected outlets. This makes it possible to manage fittings such as an overhead shower head, handset and body jets from one central point; all outlet accessories are sold separately. Thermostatic regulation maintains a consistent heat during use, helping to reduce sudden changes for a more comfortable experience.

WRAS approved and built from durable brass, the fitting operates from a minimum water pressure of 0.5 bar. Measures 120mm in height, 275mm in width and 146mm in projection.

Features & Benefits:

WRAS approved
Brass construction with brushed bronze finish
Square three-lever design with 3-outlets
Thermostatic temperature regulation
Concealed landscape installation
Height: 120mm
Width: 275mm
Projection: 146mm
Minimum water pressure: 0.5 bar
Includes 15-years guarantee

Flow Rate (On-Offside):

0.2Bar: 12L/min
0.5Bar: 17L/min
1Bar: 21L/min
2Bar: 28.5L/min
3Bar: 36L/min

Flow Rate (Diverterside):

0.2Bar: 8.5L/min
0.5Bar: 12L/min
1Bar: 16L/min
2Bar: 22.5L/min
3Bar: 28.5L/min

Product code	TR31692BRZ
Type	Concealed shower valves
Shape plate	Rectangular
Material	Brass
Finish	Brushed Bronze
Colour	Bronze
Style	Modern
Mounting type	Wall mounted
Number of outlets	3 outlets
Handle type	Square, triple control
Cartridge type	Ceramic disc
Height (mm)	120
Width (mm)	275
Projection (mm)	146
Orientation	Landscape
Minimum water pressure	0.5
Temperature control	Thermostatic
Manufacturer guarantee	15 years
