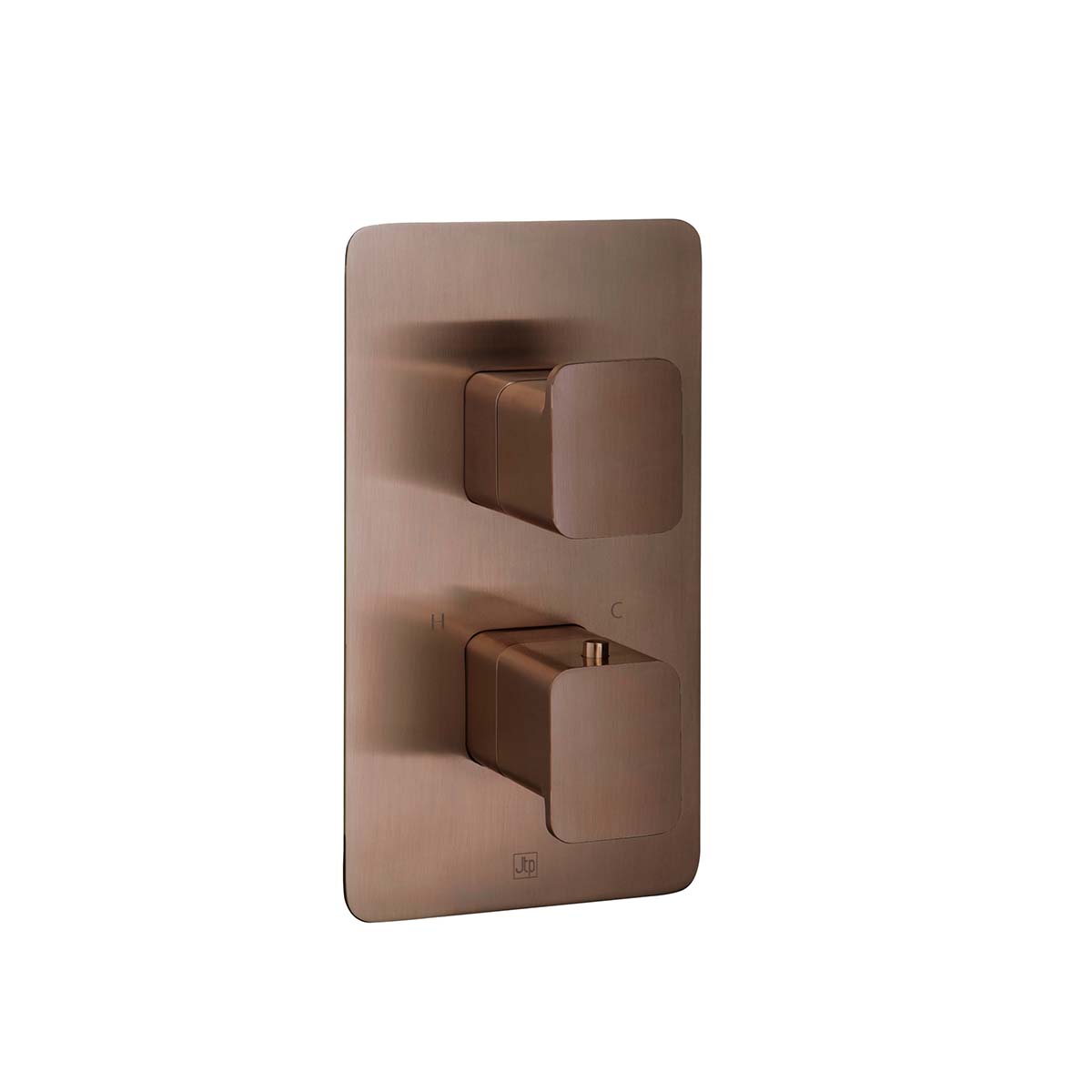

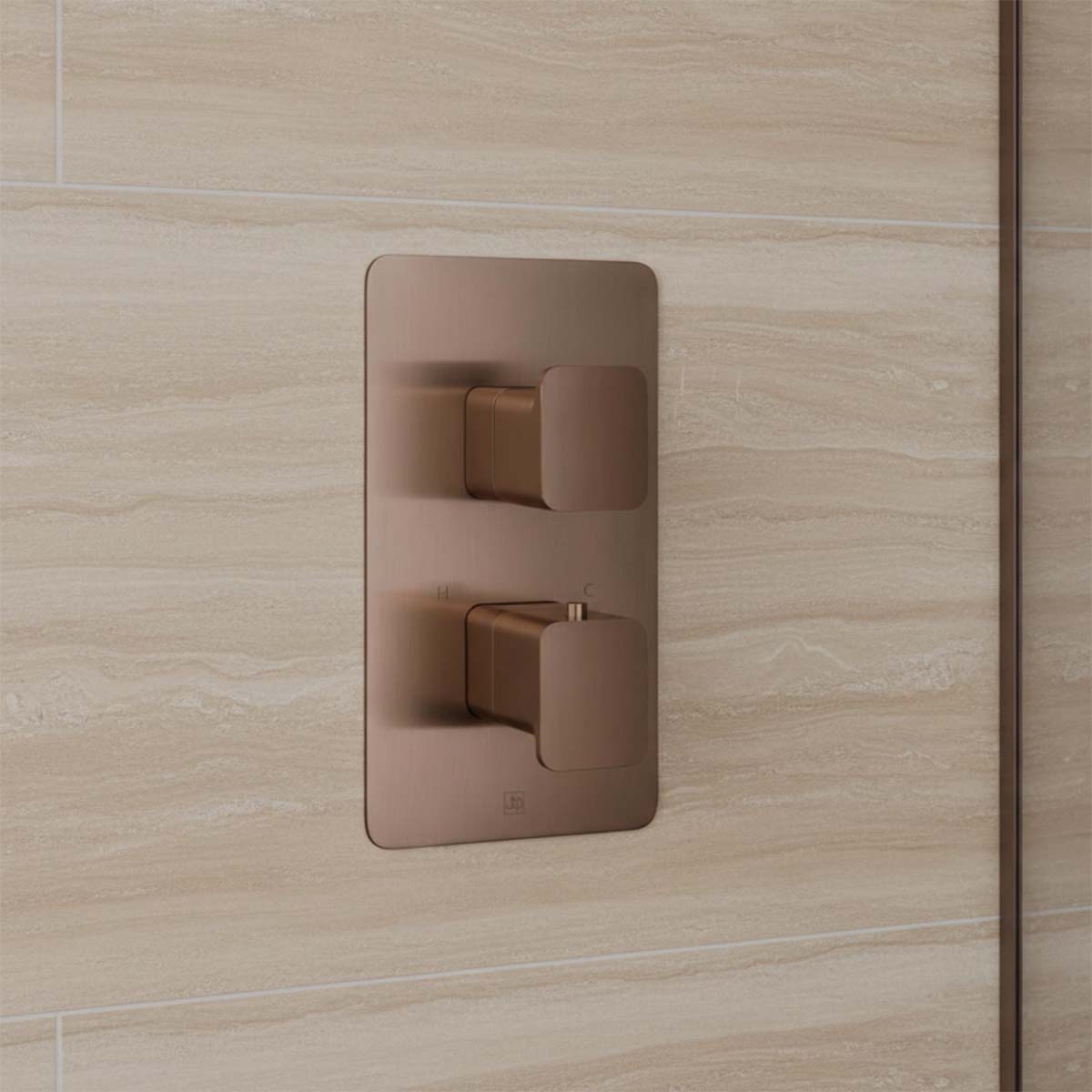

Perfect for bathrooms where a tidy layout is important, this square brushed bronze 1 outlet shower valve conceals the working parts behind the surface, leaving only the slim rectangular backplate and two square levers visible, positioned 80mm apart for a balanced appearance.

The upper handle turns the water on and off for a single outlet, such as an overhead shower head or riser rail kit, while the lower one adjusts the temperature. Thermostatic regulation maintains the chosen level and helps reduce sudden hot or cold changes during showering. TMV2 approval adds reassurance, while ceramic disc technology provides smooth movement and helps prevent dripping.

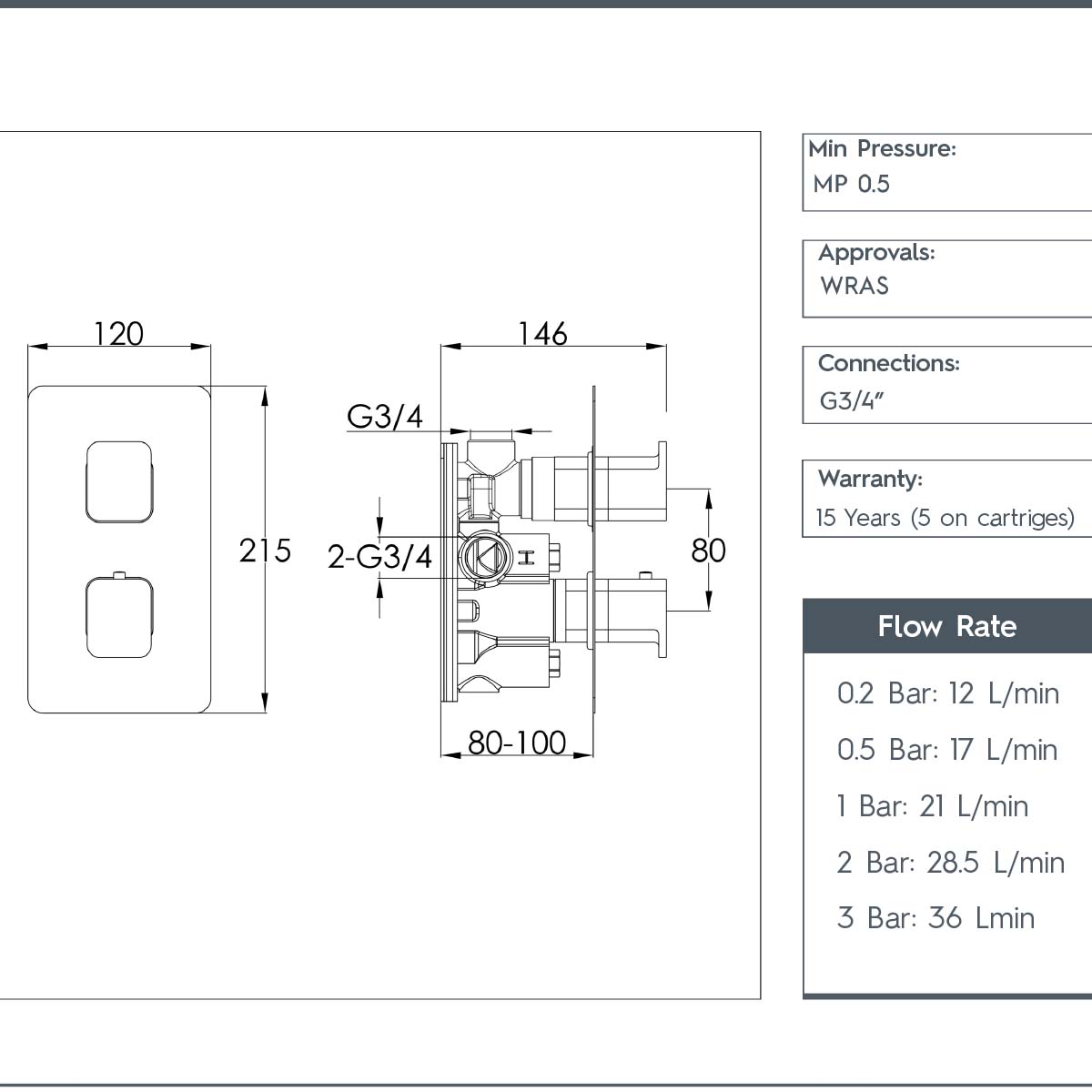

Crafted from brass, the fitting measures 215mm in height, 120mm in width and 146mm in projection. Designed for concealed installation in an upright position, it operates from a minimum water pressure of 0.5 bar.

Features & Benefits:

Modern brushed bronze finish
Solid brass body
Square, concealed single-outlet valve
Thermostatic temperature stability
Height: 215mm
Width: 120mm
Projection: 146mm
Minimum water pressure: 0.5 bar
15-year manufacturer’s guarantee

Flow Rate:

0.2Bar: 12L/min
0.5Bar: 17L/min
1Bar: 21L/min
2Bar: 28.5L/min
3Bar: 36Lmin

Product Code	TR31651BRZ
Type	Concealed Shower Valves
Shape Plate	Rectangular
Material	Brass
Finish	Brushed Bronze
Colour	Bronze
Style	Modern
Mounting Type	Wall-Mounted
Number of Outlets	1 Outlet
Handle Type	Square, Dual Control
Cartridge Type	Ceramic Disc
Height (mm)	215
Width (mm)	120
Projection (mm)	146
Orientation	Portrait
Minimum Water Pressure (bar)	0.5
Temperature Control	Thermostatic
Manufacturer Guarantee	15-years
