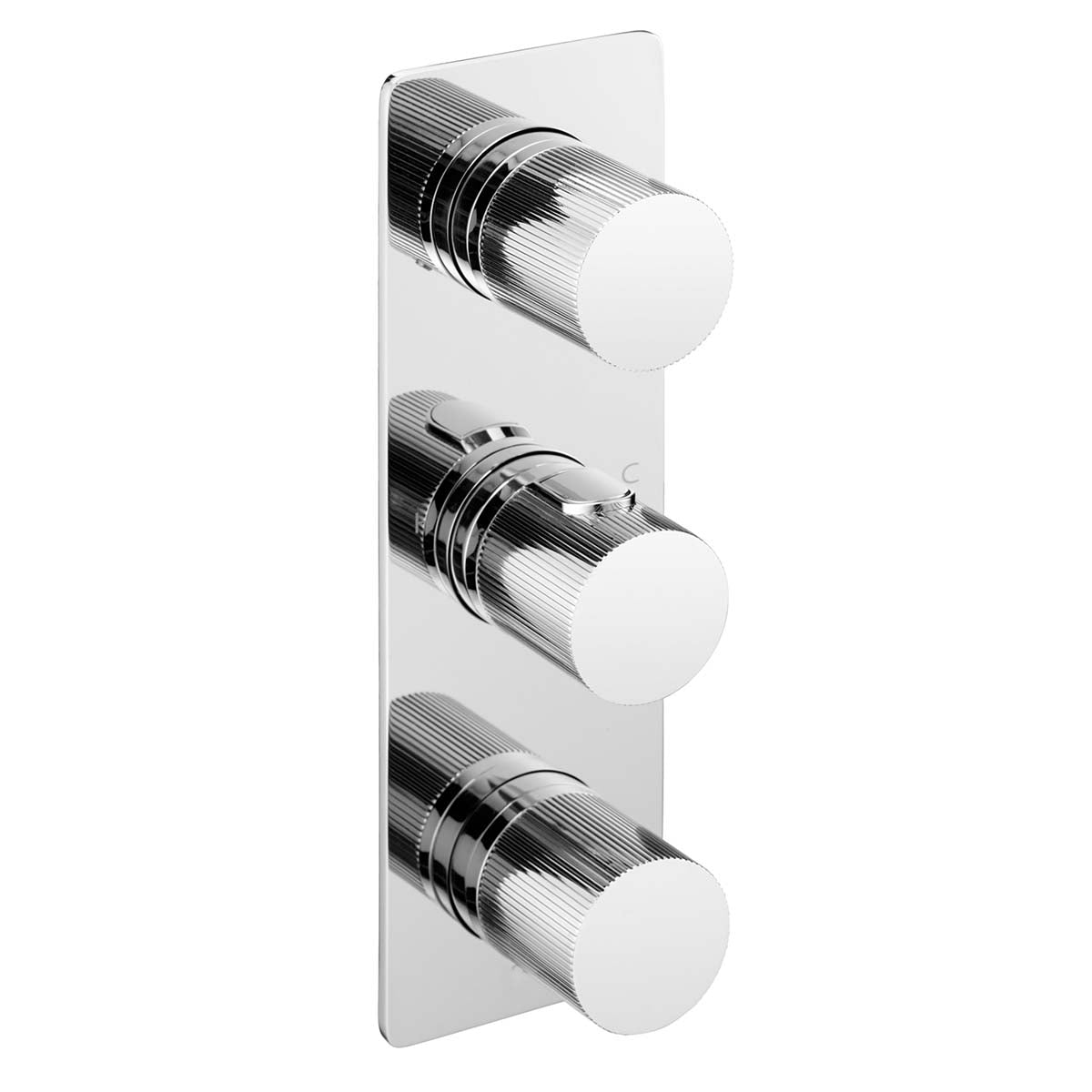

Chrome Concealed Shower Mixer Valve 2 Outlets 3 Handles

Embellished with a polished chrome finish, this modern 2 outlet shower valve features a sleek rectangular backplate designed for wall-mounted installation. Made from durable brass, it measures 240mm in height, 75mm in width and 149mm in projection, offering a neat appearance that complements modern bathrooms.

Three round, knurled handles are arranged vertically, each measuring 42mm in diameter and spaced 80mm apart. Two of the dials independently manage water flow to the connected outlets, such as a round shower head with arm and a riser rail kit, both available separately. The central handle adjusts the mix of hot and cold water, with a built-in push button to override the preset temperature safety limit when needed. Their textured edges provide a secure grip, even with wet hands.

The concealed thermostatic shower valve is installed behind the finished wall, keeping the internal mechanism out of sight while the backplate and handles remain accessible. Its thermostatic system helps maintain a consistent water temperature, while the ceramic disc cartridge supports smooth operation. Featuring G1/2" connections and requiring a minimum operating pressure of 0.5 bar, it is WRAS approved, providing reassurance of compliance with recognised water fittings requirements.

Features & Benefits:

• Durable brass material with a modern polished chrome finish
• WRAS certified for water safety compliance
• 2-outlet thermostatic system enables independent shower operation
• Three textured knurled handles provide effortless control
• Middle temperature dial features a convenient safety override button
• Thermostatic function reduces unexpected heat fluctuations
• Ceramic disc cartridge supports smooth, leak-resistant performance
• Concealed wall-mounted design with an elegant rectangular plate
• G1/2" threaded fittings for secure water connections
• Suitable for water pressures starting at 0.5 bar
• Height: 240mm
• Width: 75mm
• Projection: 149mm
• Covered by a 15-year manufacturer's guarantee
• Additional 5-year guarantee on the cartridge

Flow Rate:

• 0.2Bar: 9L/min
• 0.5Bar: 12L/min
• 1Bar: 16L/min
• 2Bar: 23Lmin
• 3Bar: 29L/min
