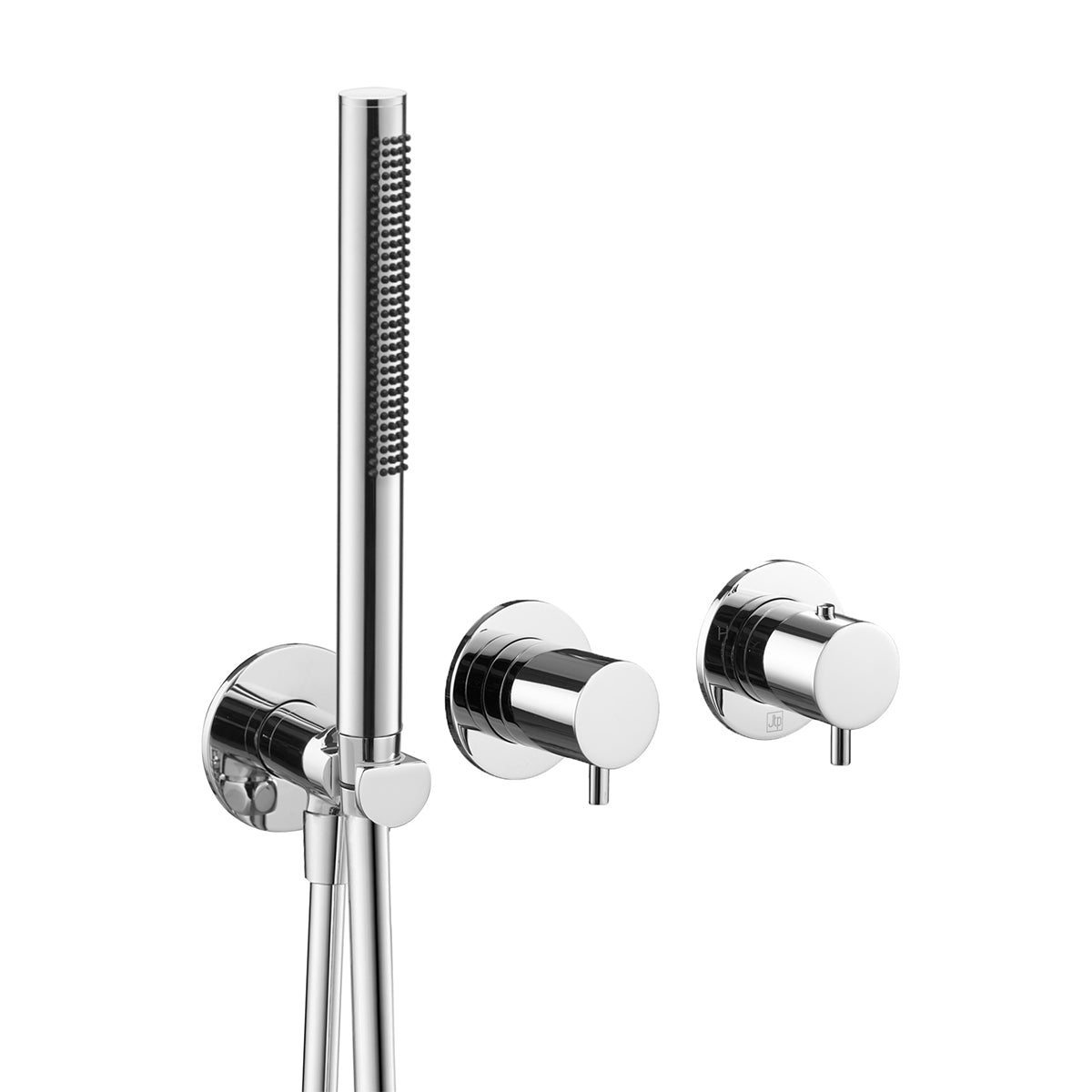

Chrome Thermostatic Concealed 2 Outlet Shower Valve With Handset

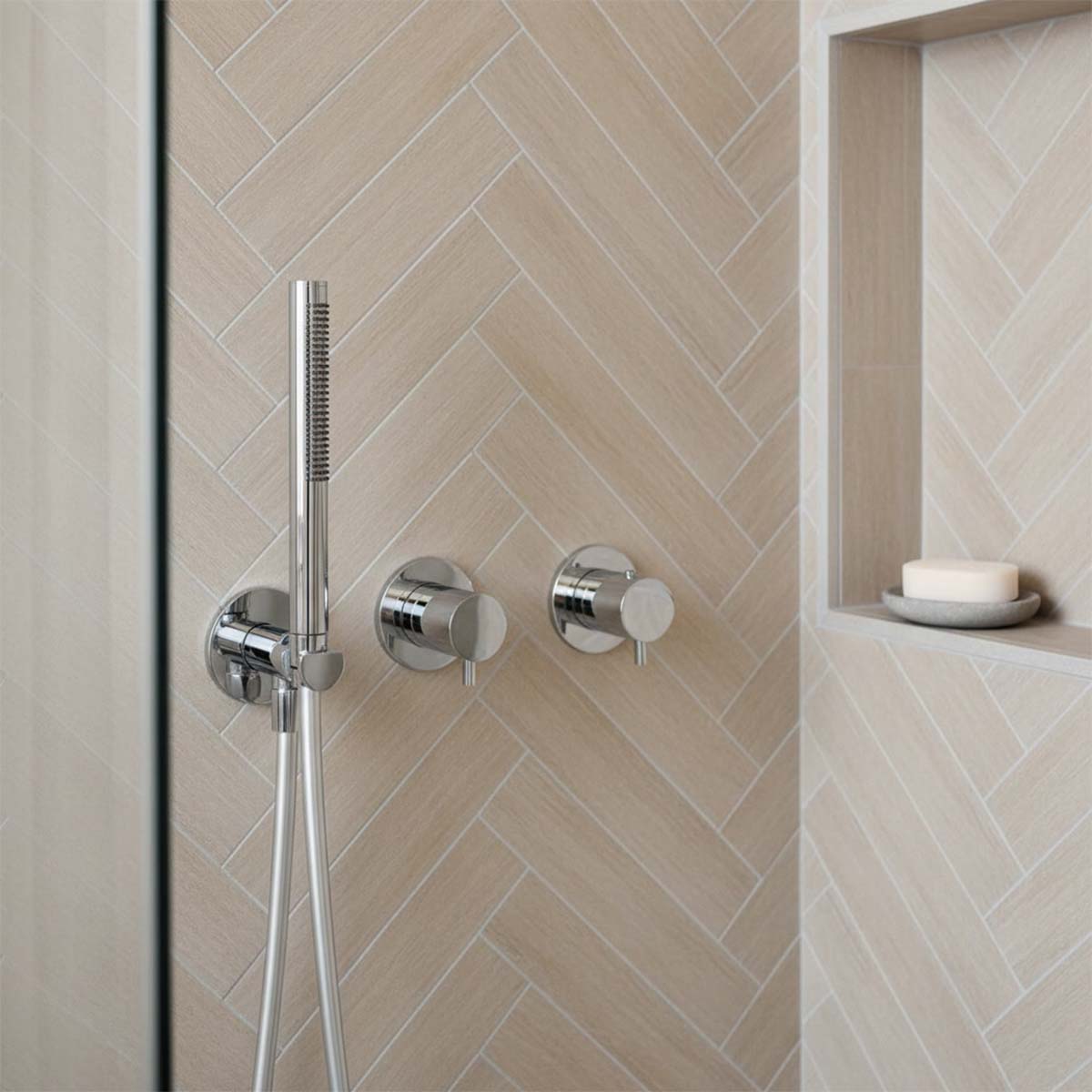

Bring crisp styling and practical versatility to your shower area with this refined 2 way shower valve kit with handset. Crafted from solid brass, the chrome set offers dependable durability with a clean, light-reflective appearance. Three separate elements are arranged horizontally across the wall, creating a neat and spacious composition. On the left, the slim pencil handset sits securely in its holder and is supplied with a flexible hose, giving you a convenient second showering option without disturbing the streamlined look of the installation.

At the centre, the thermostatic control adjusts the balance between hot and cold water, allowing you to reach a comfortable temperature with smooth, intuitive movement. The right-hand dial manages the water flow between the two outlets, directing the supply to the pencil handset or a second fitting such as a rainfall shower, which is available separately. As a shower valve wall mounted design, the working mechanisms remain concealed behind the surface, leaving only the elegant controls and 72mm circular backplates visible for a clean contemporary finish.

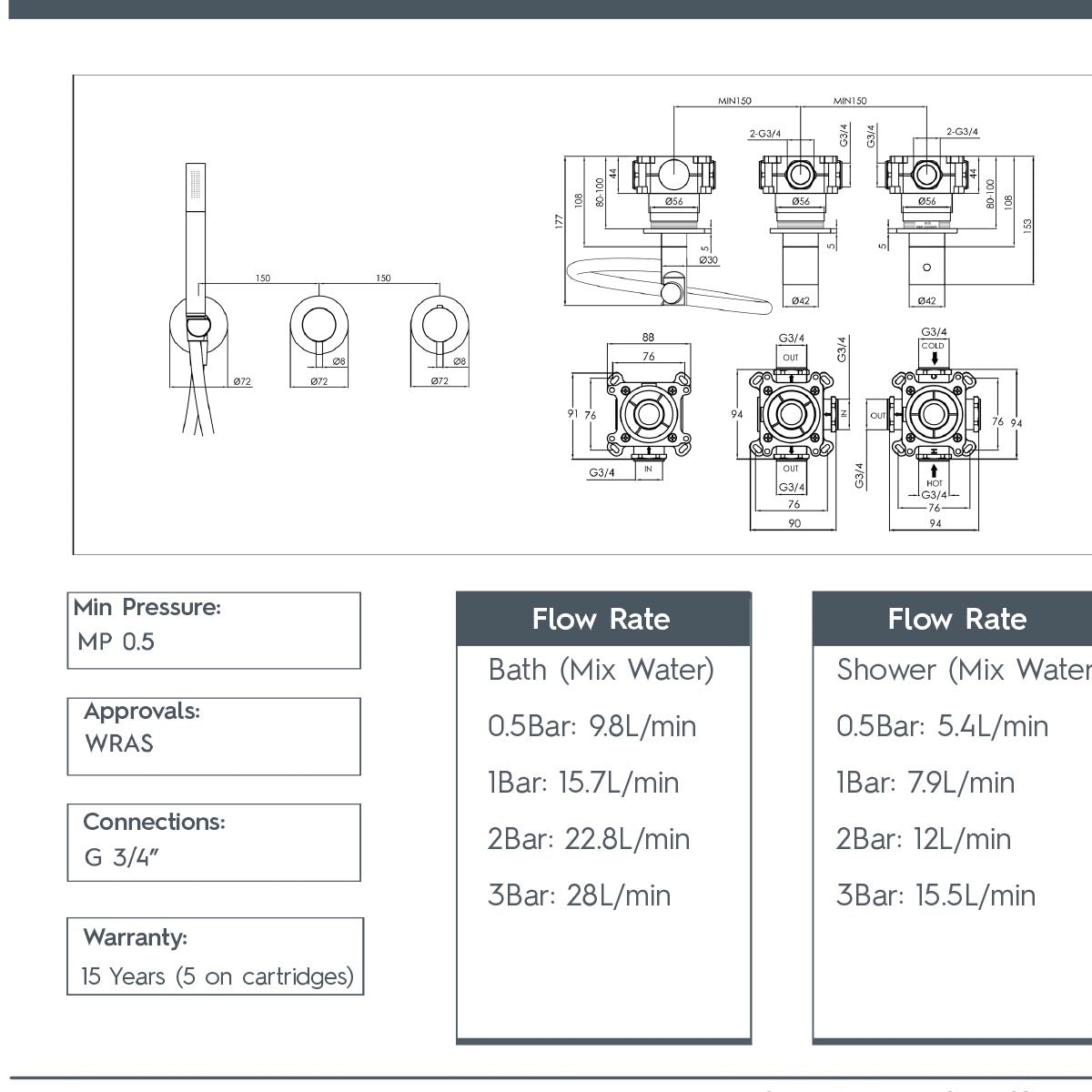

Engineered for reliable everyday performance, the system operates from a minimum water pressure of 0.5 bar and uses secure G 3/4-inch threaded plumbing connections. The controls are spaced 150mm apart, while each valve measures 42mm in width and 153mm in length. WRAS approval provides added reassurance, and ceramic disc supports precise, drip-resistant operation. Backed by a 15-year manufacturer’s guarantee with five-year cartridge cover, this polished chrome set can be paired with a matching rainfall shower, wall-mounted arm, taps, wastes and coordinated accessories to create a bright, harmonious bathroom scheme.

Features and benefits:

• Solid brass construction
• Polished chrome finish
• Horizontal three-part layout for a clean and balanced wall-mounted design
• Concealed valve mechanisms for a neat and uncluttered finish
• Pencil handset supplied with holder and flexible hose for convenient everyday use
• Central thermostatic control for balancing hot and cold water
• Smooth temperature adjustment for a comfortable showering experience
• Right-hand dial for directing water flow between two shower outlets
• Two-outlet configuration
• 72mm circular backplates
• Ceramic disc for smooth and drip-resistant operation
• WRAS approved
• Suitable for medium-pressure water systems
• Minimum operating pressure: 0.5 bar
• G 3/4" threaded plumbing connections
• Gap between controls: 150mm
• Valve width: 42mm
• Valve length: 153mm
• 15-year manufacturer’s guarantee
• Five-year guarantee on cartridges


Flow rate - Bath (Mix Water):

• 0.5Bar: 9.8L/min
• 1Bar: 15.7L/min
• 2Bar: 22.8L/min
• 3Bar: 28L/min

Flow rate - Shower (Mix Water):

• 0.5Bar: 5.4L/min
• 1Bar: 7.9L/min
• 2Bar: 12L/min
• 3Bar: 15.5L/min
