Concealed Thermostatic Mixer Shower Kit with Overflow Bath Filler

Polished chrome concealed shower set made from brass, designed to bring together modern styling, practical control, and coordinated bathroom functionality in one complete package.

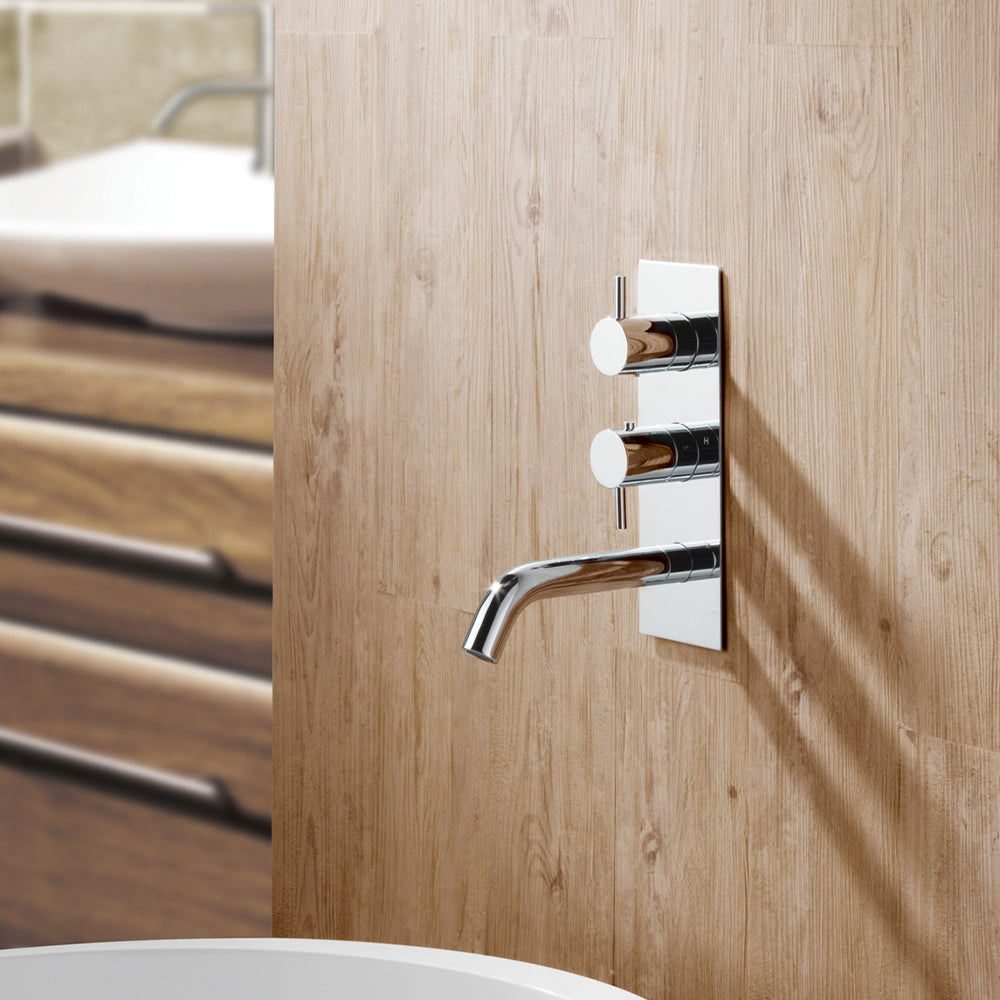

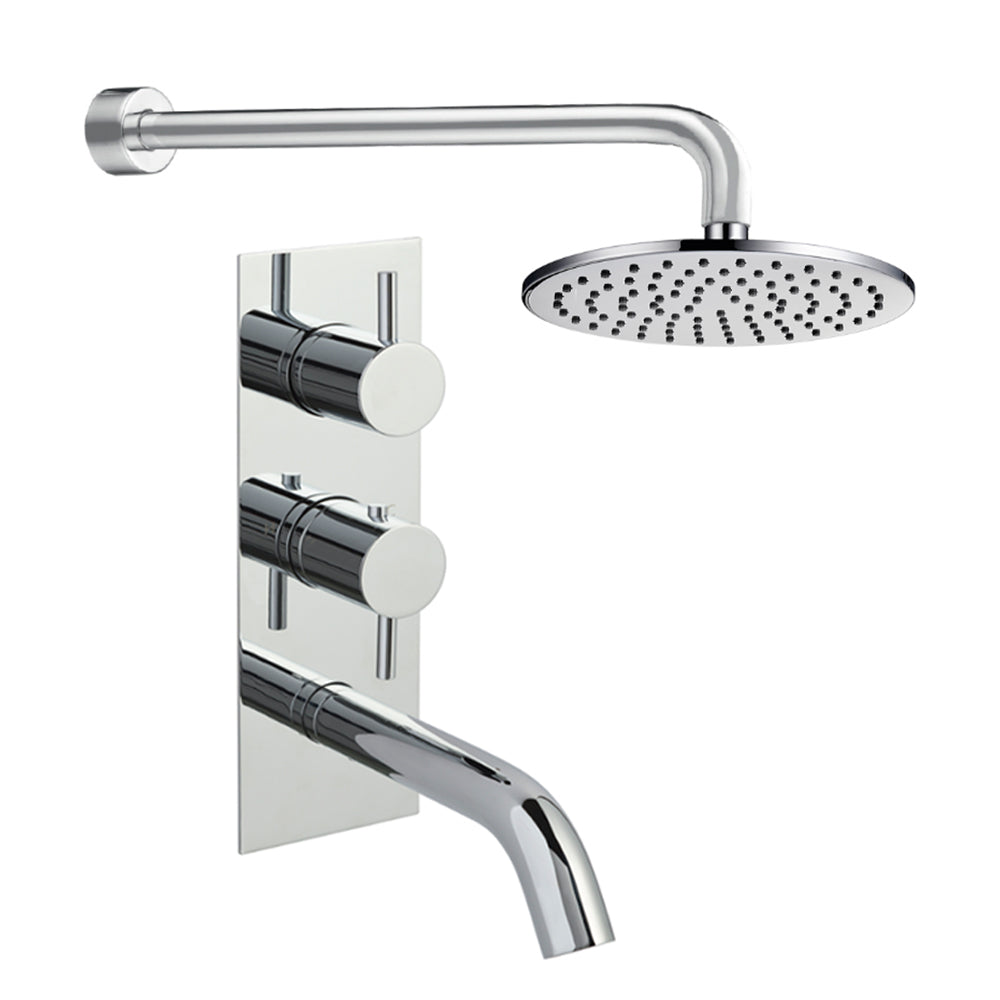

At the centre of the set is a 3 outlet thermostatic valve set on a vertically mounted rectangular backplate with a clean contemporary appearance. Its three lever handle design uses separate controls for each outlet, allowing easy selection between functions, while the central handle regulates the blend of hot and cold water for accurate temperature adjustment. A small button positioned above this handle allows the preset temperature to be overridden when required, adding both safety and flexibility during use.

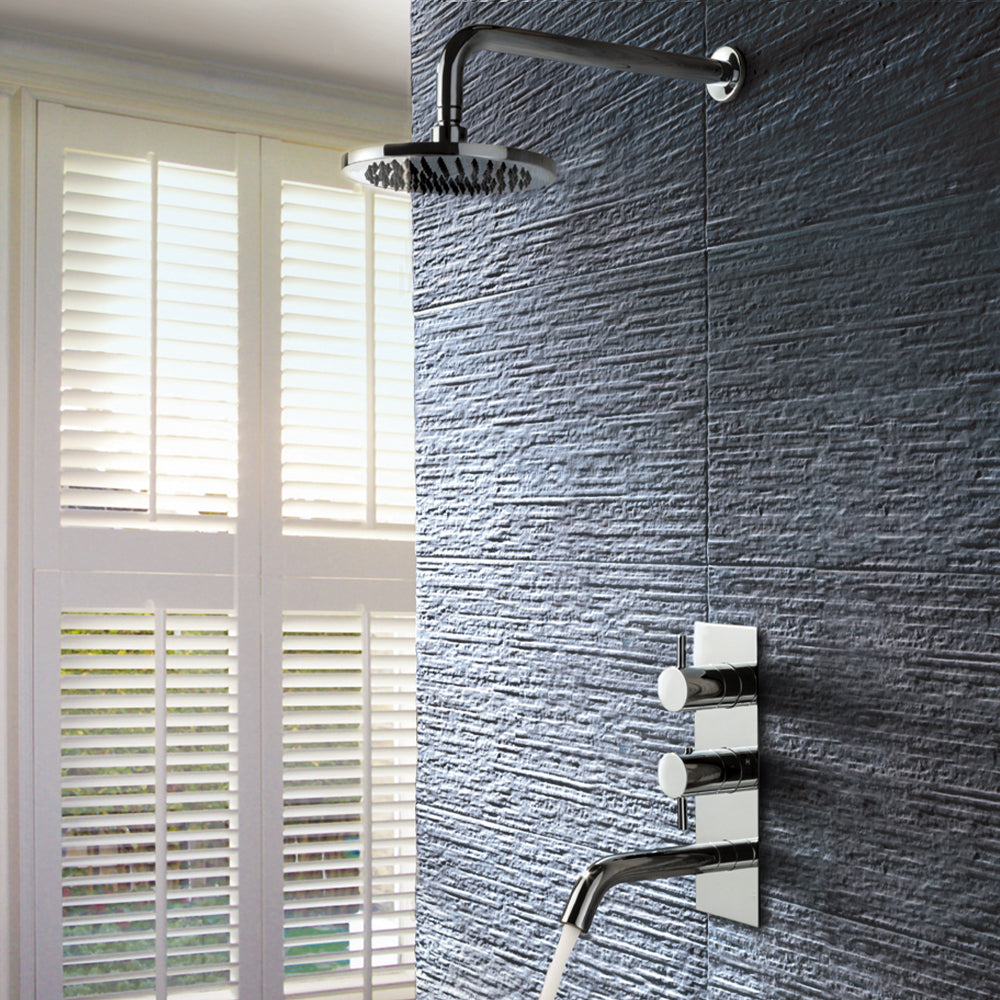

The overhead shower head has a round 190 mm design, paired with a 300 mm wall-mounted shower arm for a neat, streamlined installation. This combination creates a balanced look and delivers effective overhead coverage for a comfortable showering experience.

Also included is a slim microphone-style shower handset that offers a minimalist modern look. It is supplied with a metal hose, holder, and water outlet, providing a practical secondary option for showering and everyday rinsing tasks.

To complete the set, the round brass overflow bath filler is mounted directly into the bath overflow for a controlled flow of hot and cold water. Beneath the bath, a 600 mm flexible cord connects to a slimline click-clack exofill and pop-up waste, allowing easy draining with a simple press.

Set includes:

- Round shower arm 300mm

- Round shower head 190mm

- Round water outlet with holder, metal hose, and slim hand shower

- Thermostatic concealed 3 outlet shower valve with three handles

-  Round slimline, click clack overflow bath filler , 60cm

Features and Benefits:

Shower Head and Arm:

• Round 190mm shower head
• 300mm shower arm
• Polished chrome finish
• Brass construction
• Wide water coverage
• Wall-mounted design

Hand Shower Set:

• Slim single-function handset
• Modern cylindrical styling
• Polished chrome finish
• Solid brass body
• 25 mm round shape
• Height: 210 mm
• Projection: 75 mm
• Metal flexible hose
• Holder with integrated outlet
• G ½ connection
• Minimum water pressure: 0.2 bar
• 15-year manufacturing guarantee

Thermostatic Shower Valve:

• 3 outlet thermostatic valve
• Three lever handles
• Controls flow and temperature
• Easy outlet selection
• Concealed installation
• Portrait orientation
• Polished chrome finish
• Height: 275 mm
• Width: 120 mm
• Projection: 153mm
• Minimum water pressure: 0.5 bar
• 15-year manufacturing guarantee

Overflow Bath Filler and Waste:

• Round brass bath filler for overflow installation
• Provides a smooth flow of hot and cold water
• 600 mm flexible connecting cord
• Slimline click-clack exofill design
• Pop-up waste for easy draining
• Press cap operation for simple use
• Minimum Water Pressure of 0.5 bar

Flow Rate Diverter side:

• 0.2Bar: 8.5L/min
• 0.5Bar: 12L/min
• 1Bar: 16L/min
• 2Bar: 22.5L/min
• 3Bar: 28.5L/min

Flow Rate On-Offside:

• 0.2Bar: 12L/min
• 0.5Bar: 17L/min
• 1Bar: 21L/min
• 2Bar: 28.5L/min
• 3Bar: 36L/min
