Manufactured from sturdy brass, the 2 outlet shower valve is highly resistant to rust owing to the high-quality material that goes into its construction. It also features a brushed brass finish that ensures that fingerprints and stains are not retained on the surface, even with constant usage.

The thermostat system allows the concealed shower valve to bring in the perfect blend of hot and cold water without fluctuations.

Invest in a quality product with this stunning piece that comes fulfilled with a manufacturer’s guarantee of 15 years for maximum benefit and assurance.

Features and Benefits:

Ensures a constant temperature even if the water pressure fluctuates
Concealed design with rectangular backplate.

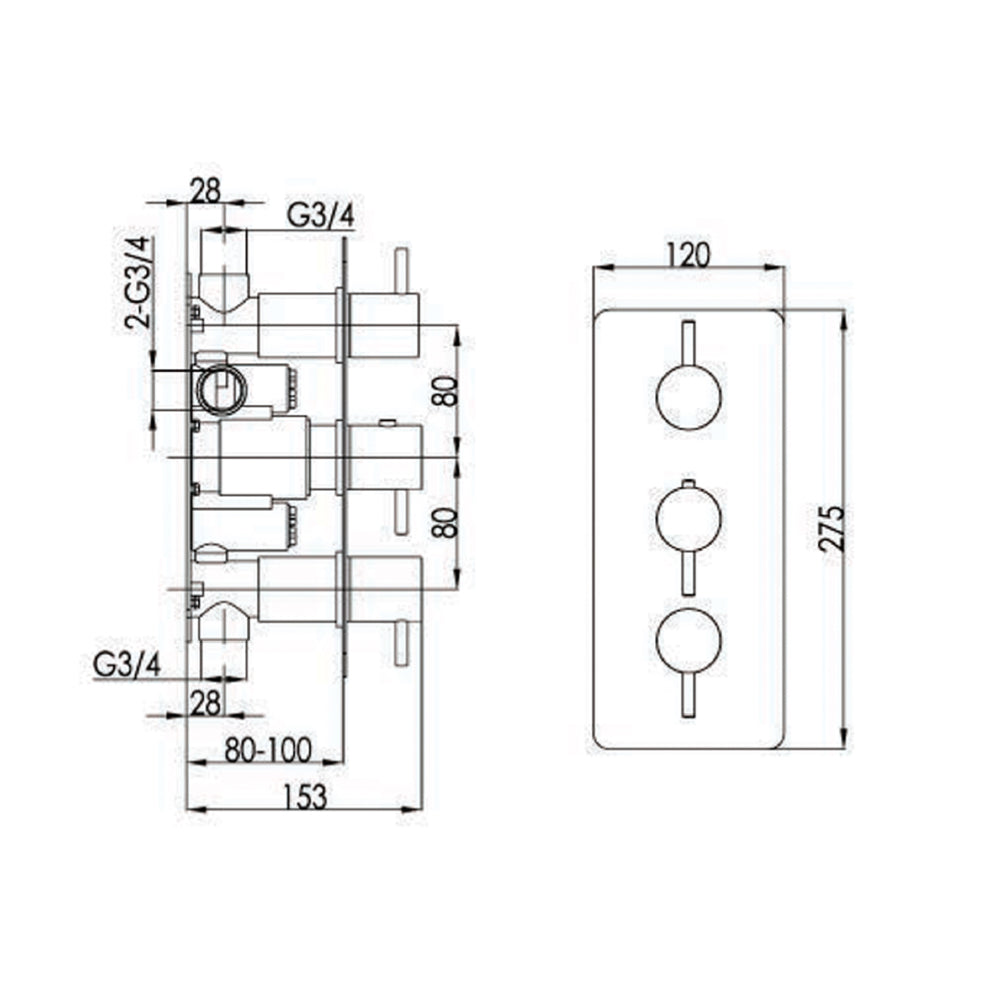

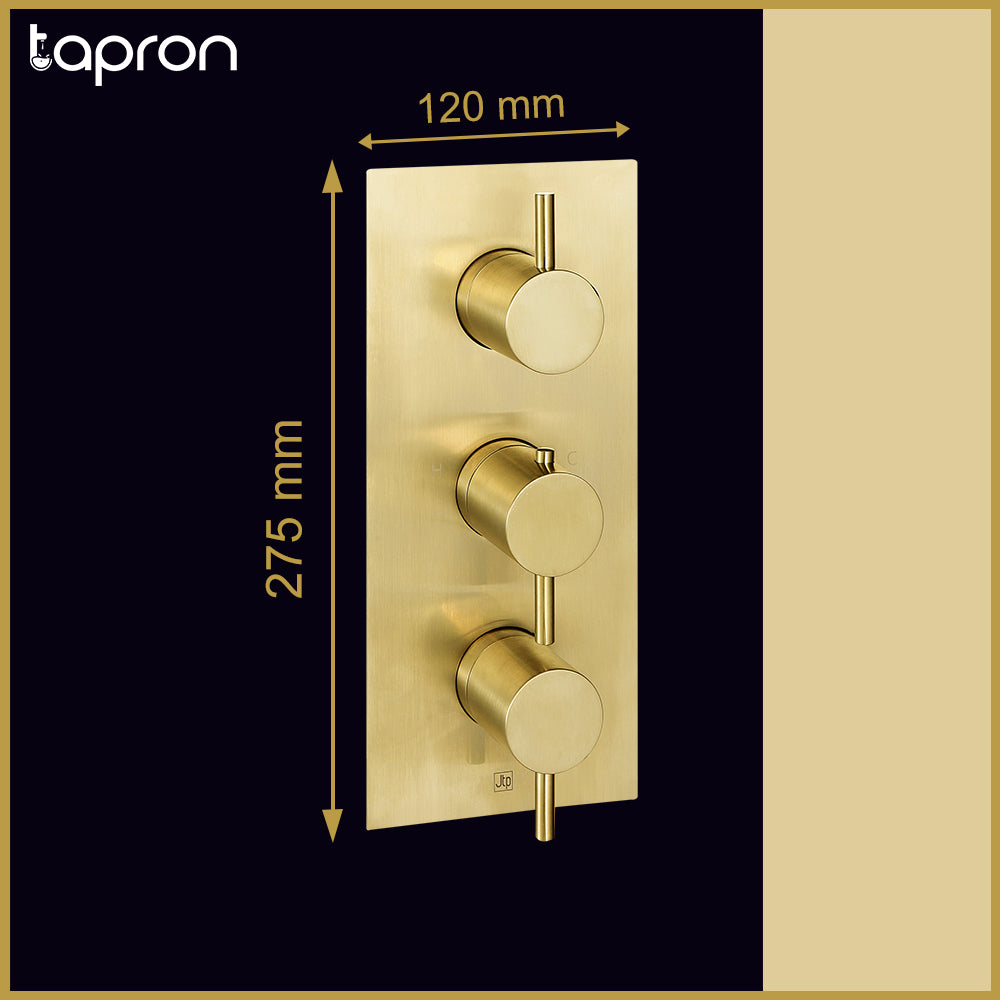

Backplate size: 275H x 120W mm
Easy fitting plate
WRAS approved
Vertical orientated
Outlets: 2.
Handles: 3.
Made of brass with brushed brass finishing
Requires water pressure is MP 0.5 bar
Suitable for use with bath spouts, slide rail kits, jets, and shower heads (All sold separately).
Also available with designer handle
15 years manufacture guarantee

Flow Rate:

0.2Bar: 12L/min
0.5Bar: 17L/min
1Bar: 21L/min
2Bar: 28.5L/min
3Bar: 36L/min

Product code	TR23690ABBR
Type	Concealed Shower Valves
Shape plate	Rectangular
Material	Brass with PVD Coating
Finish	Brushed Brass
Colour	Gold
Style	Modern
Mounting type	Wall Mounted
Number of outlets	2 Outlets
Handle type	Round, Triple Control
Cartridge type	Ceramic Disc
Height (mm)	275
Width (mm)	120
Orientation	Portrait
Minimum water pressure (bar)	0.5
Temperature control	Thermostatic
