Constructed from high-quality brass, the concealed shower mixer valve offers exceptional resistance to rust and tarnish, making it ideal for moisture-prone environments.

Requiring a minimum water pressure of 0.5 bar, this thermostatic shower valve is suitable for homes with medium water pressure systems. The easy installation and low maintenance make the triple outlet thermostatic concealed shower valve adaptable for any home. Its advanced thermostat system ensures a constant, comfortable water temperature. As a WRAS-approved product with a ceramic disc cartridge that provides leak-proof and drip-free operation, sealing off water outlets when not in use.

Experience exceptional functionality and style with this gold shower valve, backed by a 15-year manufacturer's guarantee for your peace of mind.

Features and Benefits:

Product Composition: Brass with PVD brushed brass finish
Minimum water pressure requirement: 0.5 bar
Wall mounted design with 3 outlets
Square handles with triple controls
Horizontal rectangular backplate
Ceramic disc technology
Thermostatically controlled
Manufacturer’s guarantee: 15 years
WRAS-approved

Flow rate

Diverter side
0.2Bar: 8.5L/min
0.5Bar: 12L/min
1Bar: 16L/min
2Bar: 22.5L/min
3Bar: 28.5L/mi

On-Offside
0.2Bar:12L/min
0.5Bar:17L/min
1Bar:21L/min
2Bar:28.5L/min
3Bar:36L/min

Product code	TR33692BBR
Type	Concealed shower valves
Shape plate	Rectangular
Material	Brass
Finish	Brushed Brass
Colour	Gold
Style	Modern
Mounting type	Wall mounted
Number of outlets	3 outlets
Handle type	Square, triple control
Cartridge type	Ceramic disc

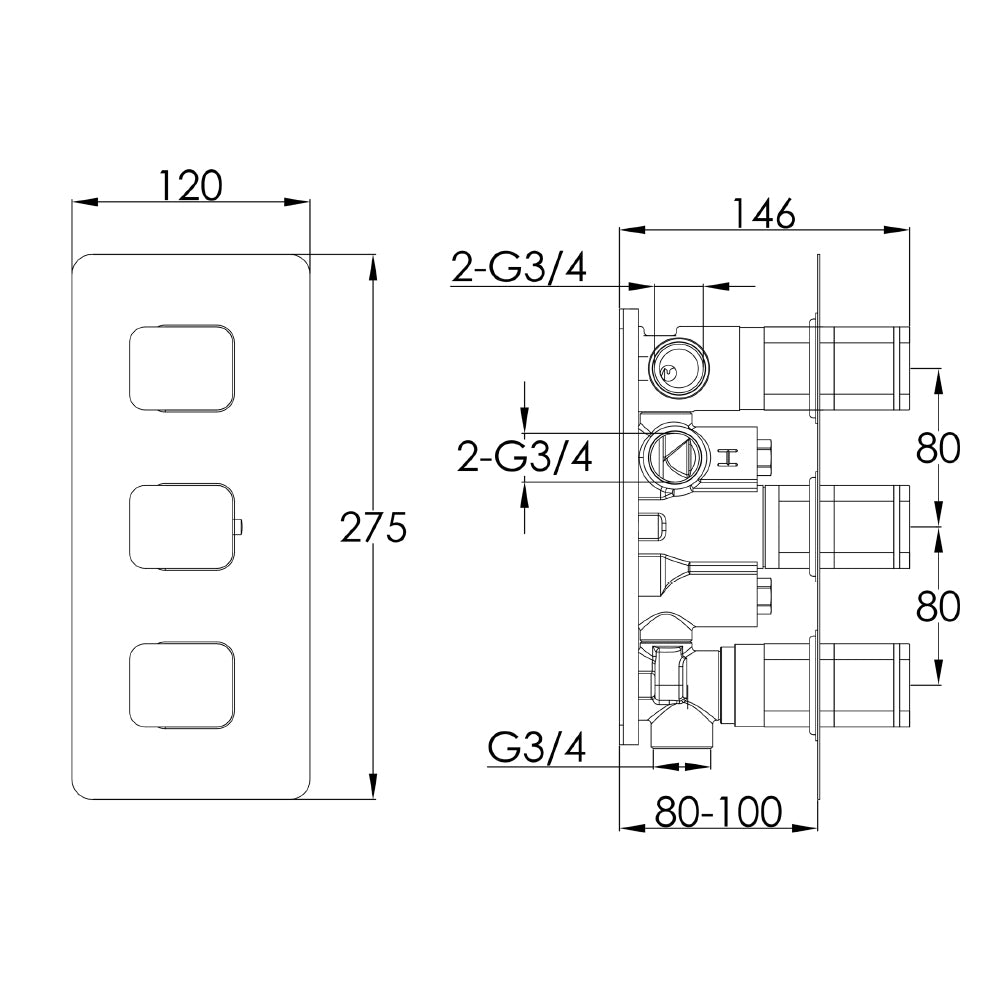

Height (mm)	275
Width (mm)	120
Orientation	Landscape
Minimum water pressure	0.5
Temperature control	Thermostatic
Manufacturer guarantee	15 years on product & 2 years on finish
