Required Products

When an overhead shower and handset need to work from the same fitting, this modern 2 way shower valve provides simple control without crowding the wall. The upper square lever switches the supply between the two connected outlets, while the lower handle adjusts both the water flow and temperature.

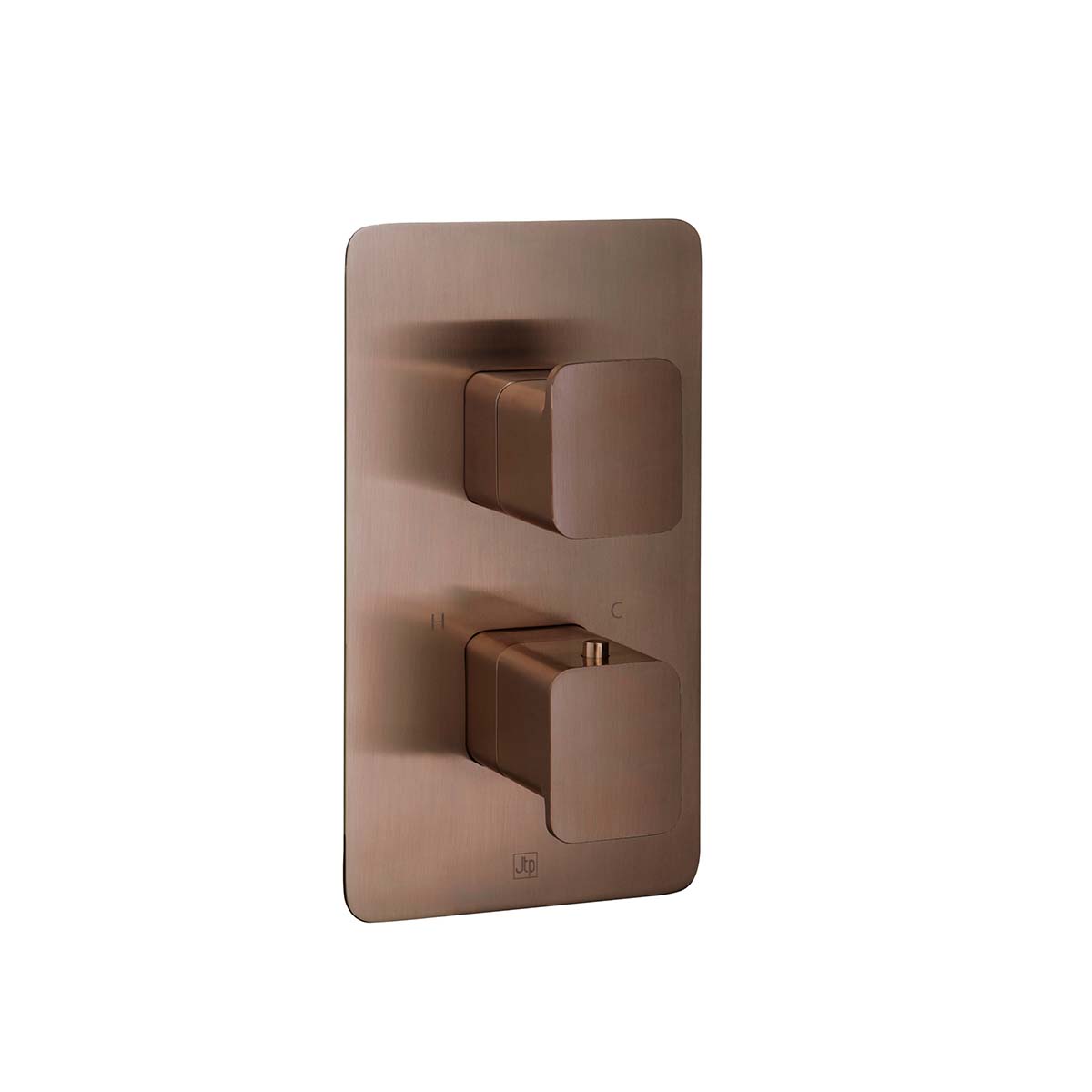

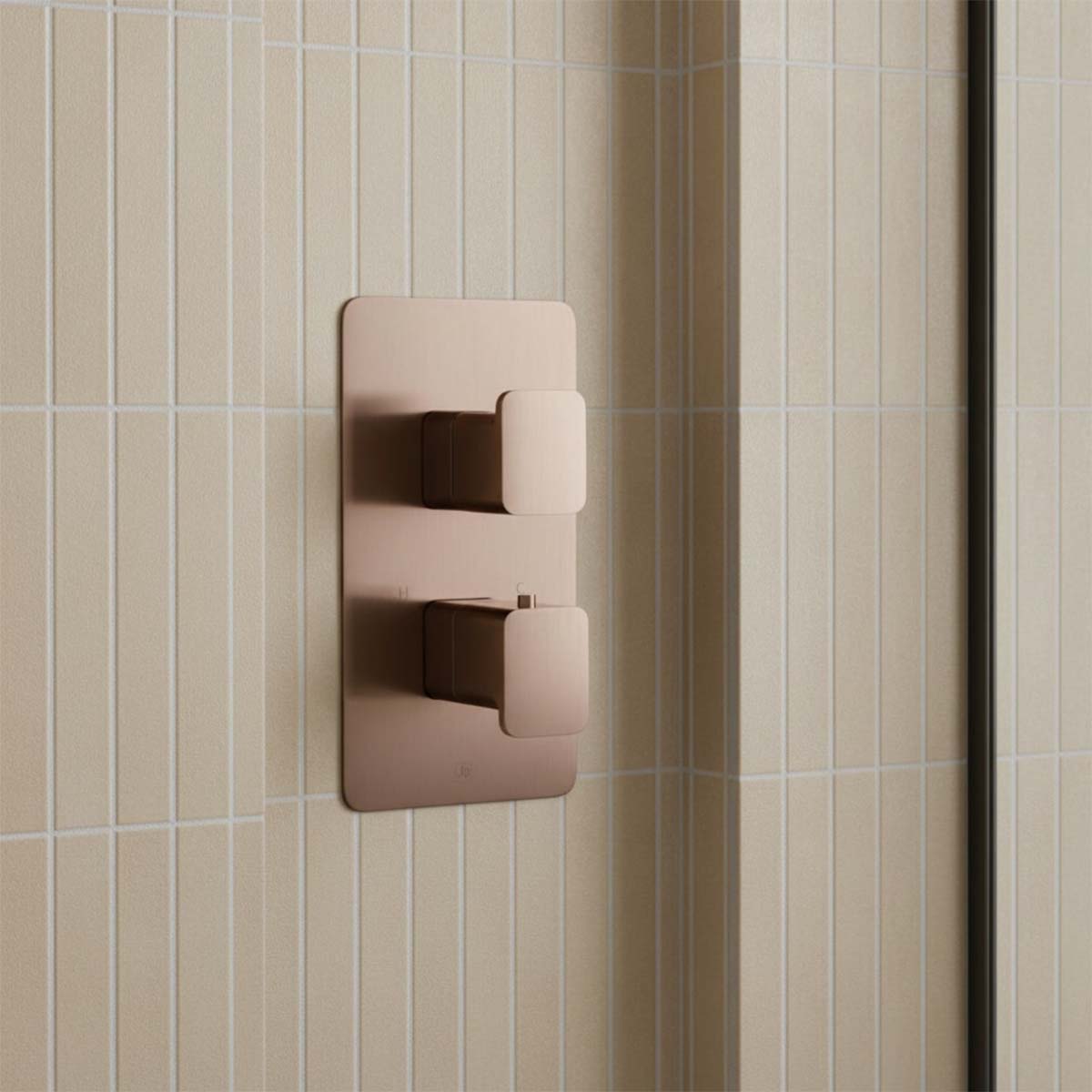

A thermostatic mechanism works behind the surface to keep the selected heat steady, helping to reduce sudden hot or cold changes during showering. Only the slim rectangular backplate and controls remain visible, creating a tidy vertical arrangement with a warm brushed bronze finish.

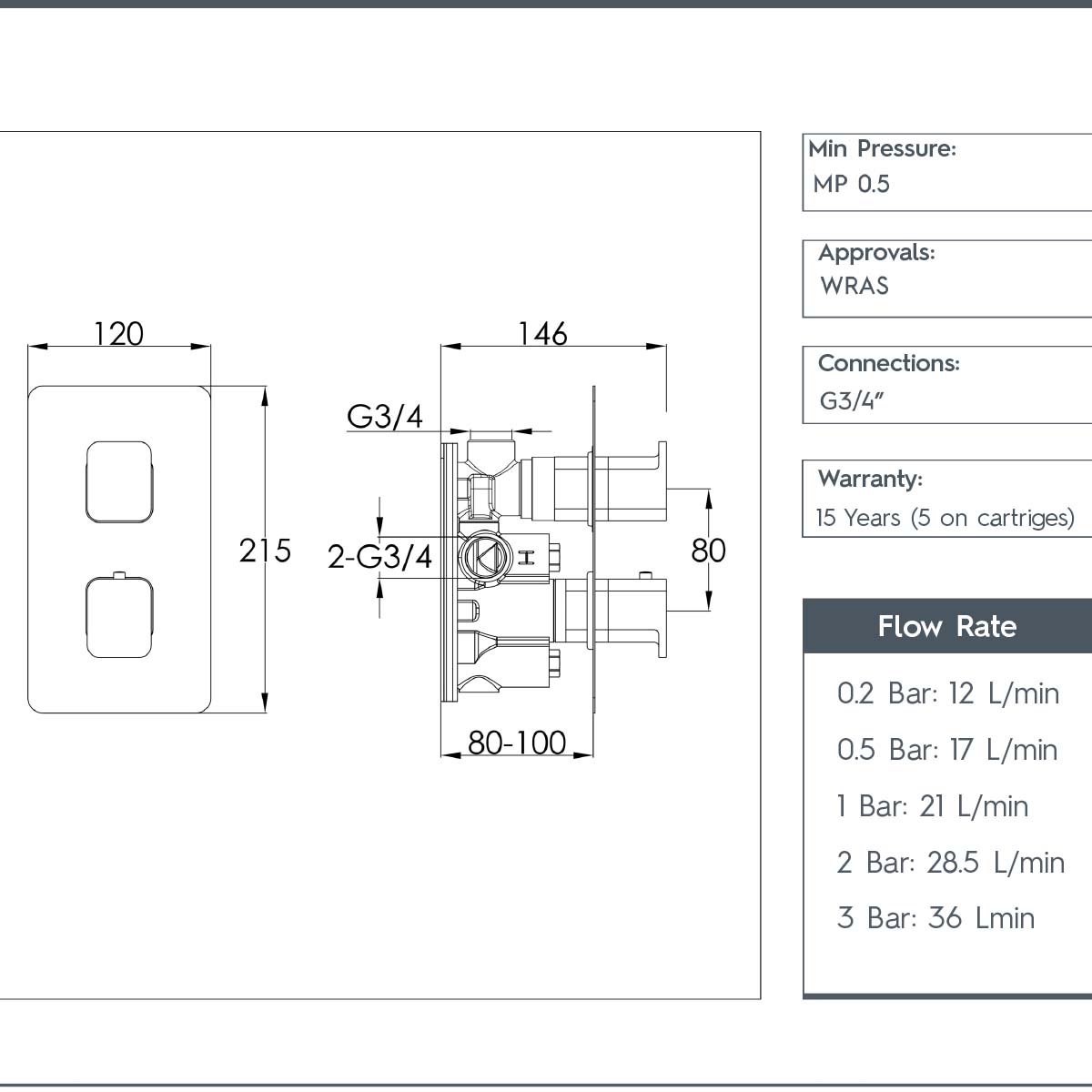

Made from brass, the wall-mounted concealed shower valve measures 215mm in height, 120mm in width and 146mm in projection. The two levers are positioned 80mm apart for a balanced appearance.

Features & Benefits:

Brushed bronze finish for modern look
Brass construction
Two-way outlet selection
Square control levers
Neat concealed wall fitting
Height: 215mm
Width: 120mm
Projection: 146mm
WRAS approved
Minimum water pressure: 0.5 bar
Offers 15-year guarantee

Flow Rate:

0.2Bar: 8.5L/min
0.5Bar: 12L/min
1Bar: 16L/min
2Bar: 22.5L/min
3Bar: 28.5Lmin

Product Code	TR31671BRZ
Type	Concealed Shower Valves
Shape Plate	Rectangular
Material	Brass
Finish	Brushed Bronze
Colour	Bronze
Style	Modern
Mounting Type	Wall Mounted
Number of Outlets	2 Outlets
Handle Type	Square, Dual Control
Cartridge Type	Ceramic Disc
Height (mm)	215
Width (mm)	120
Projection (mm)	146
Orientation	Portrait
Minimum Water Pressure (bar)	0.5
Temperature Control	Thermostatic
Manufacturer Guarantee	15 years
