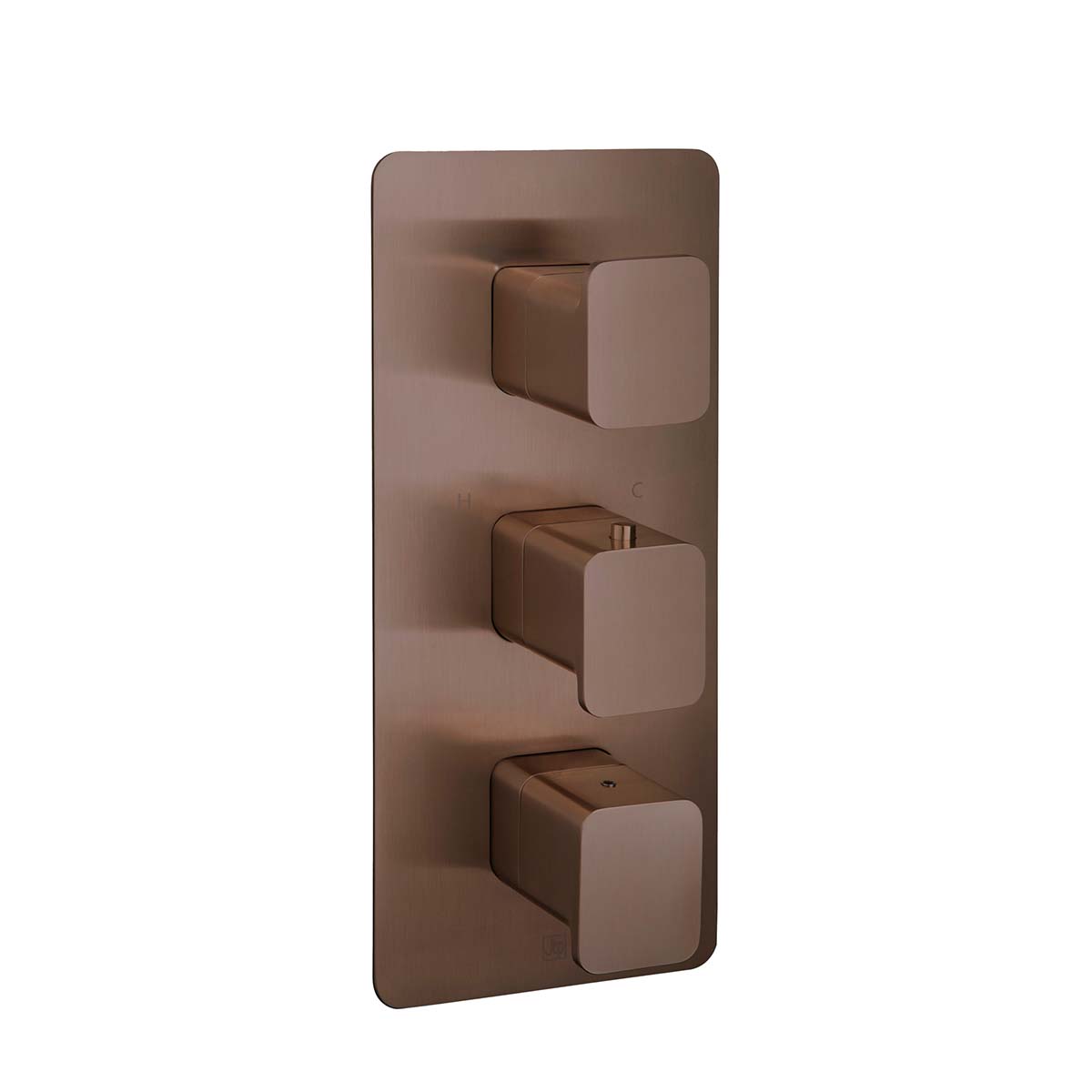

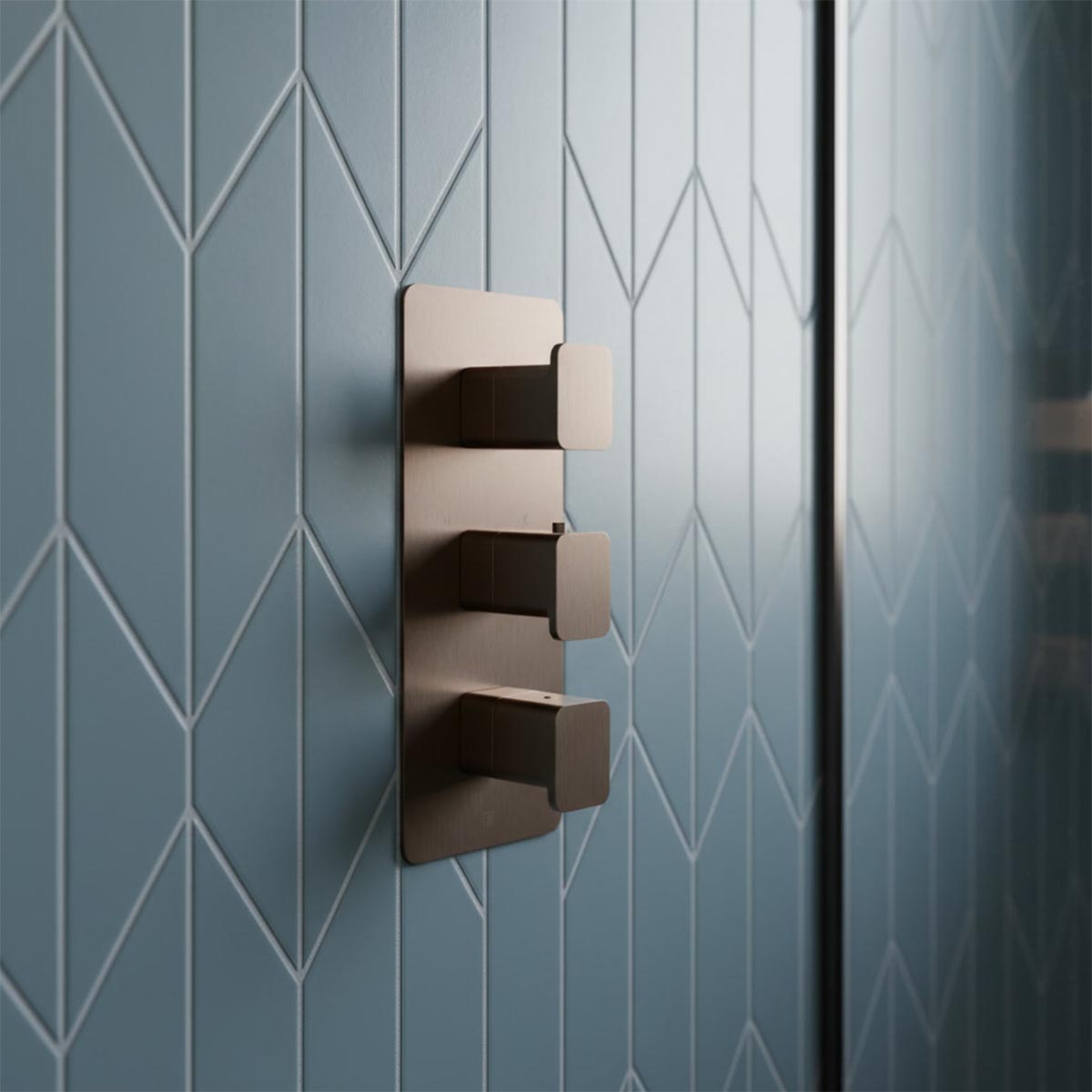

Turn a plain shower wall into a smart, flexible setup with this modern shower valve. The main mechanism is concealed behind the surface, leaving a slim rectangular backplate with three square lever handles arranged vertically. The upper and lower handles operate two connected outlets independently, such as an overhead shower and handset, both available separately, while the centre lever adjusts the temperature. Thermostatic regulation keeps the chosen setting steady, helping to reduce sudden hot or cold changes during use.

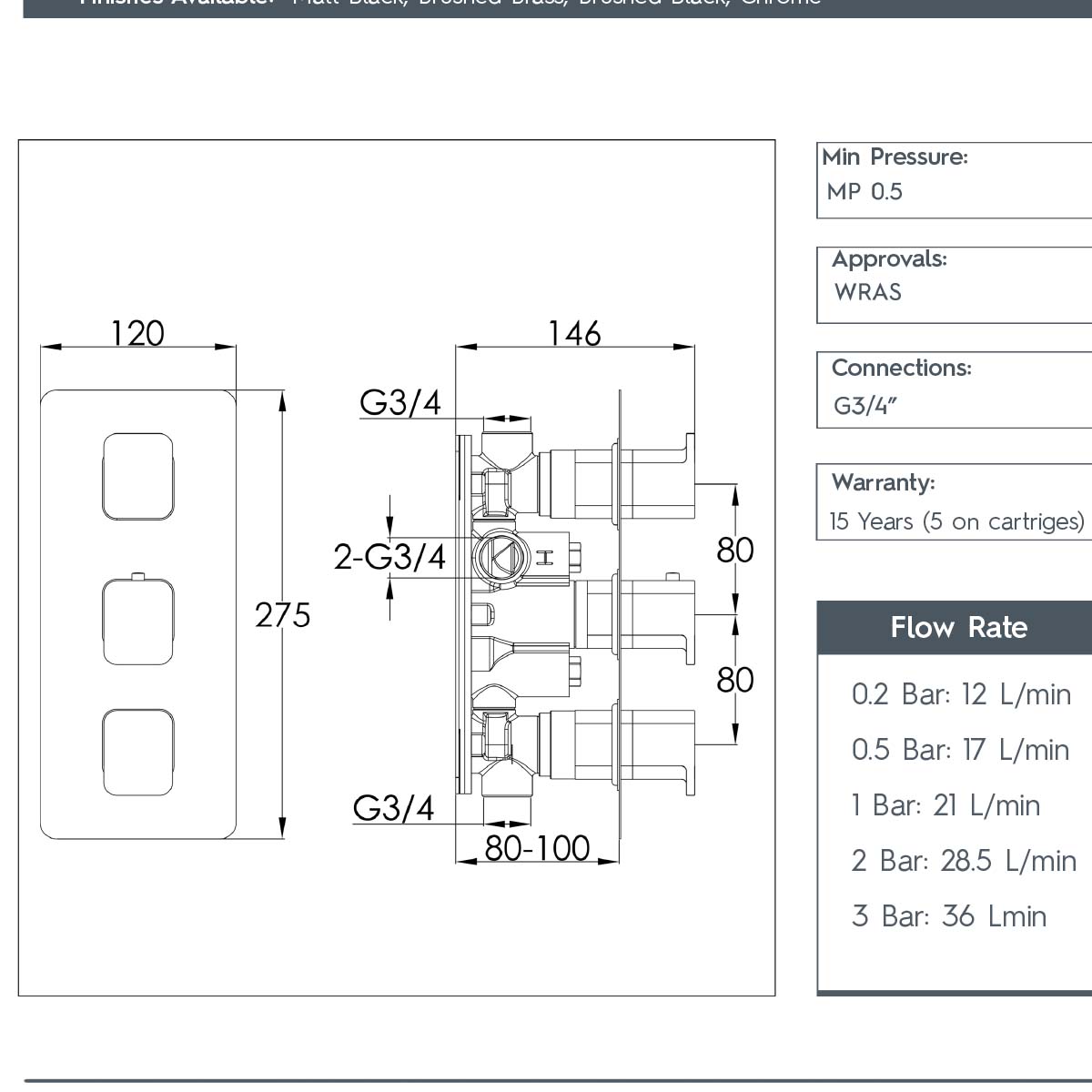

Made from durable brass with a warm brushed bronze finish, the wall-mounted fitting measures 275mm in height, 120mm in width and 146mm in projection. The three handles are positioned 80mm apart to create a balanced, easy-to-use layout. WRAS approved, it is designed to operate from a minimum water pressure of 0.5 bar.

Features & Benefits:

Solid brass construction
Modern, brushed bronze finish
Three square handles
Concealed vertical wall installation
Height: 275mm
Width: 120mm
Projection: 146mm
WRAS approved
Minimum operating pressure: 0.5 bar
15-years of guarantee

Flow Rate:

0.2Bar: 12L/min
0.5Bar: 17L/min
1Bar: 21L/min
2Bar: 28.5L/min
3Bar: 36Lmin

Product Code	TR31690BRZ
Type	Concealed Shower Valves
Shape Plate	Rectangular
Material	Brass
Colour	Bronze
Finish	Brushed Bronze
Style	Modern
Mounting Type	Wall-Mounted
Number of Outlets	2 Outlets
Handle Type	Square, Triple Control
Cartridge Type	Ceramic Disc
Height (mm)	275
Width (mm)	120
Projection (mm)	146
Orientation	Portrait
Minimum Water Pressure (bar)	0.5
Temperature Control	Thermostatic
Manufacturer Guarantee	15-years
