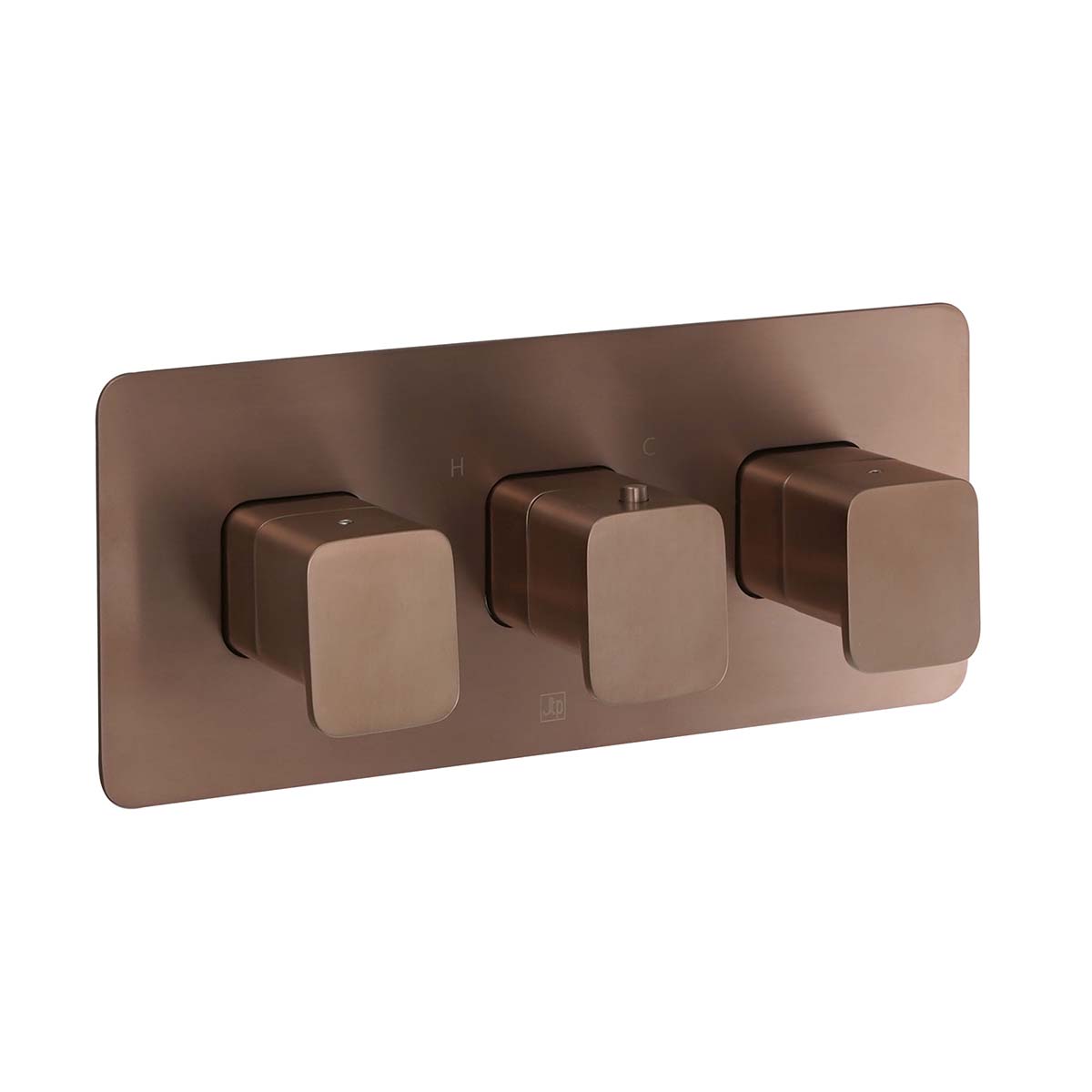

This modern 2 outlet shower valve uses three handles to manage two connected shower functions from one concealed fitting. The controls on either side operate the outlets independently, making it easy to use an overhead shower head or riser rail kit, both sold separately. The centre lever adjusts the water flow and temperature, while a small button above it allows the preset heat limit to be overridden when required. Thermostatic regulation maintains the chosen setting and reduces unexpected hot or cold changes.

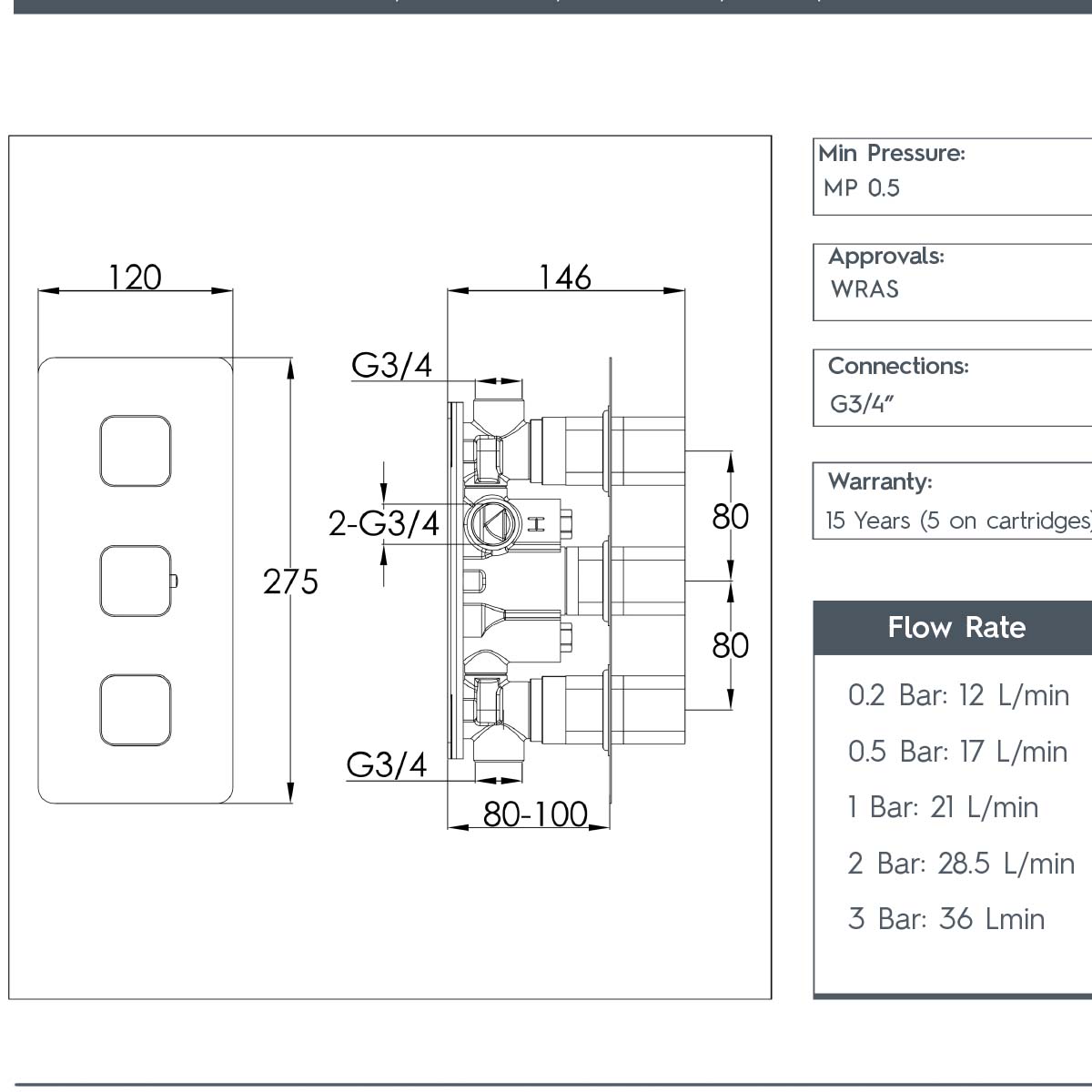

Suitable for systems operating from a minimum water pressure of 0.5 bar, the brushed bronze concealed thermostatic valve is built from durable brass. Its horizontal rectangular backplate measures 275mm in width and 120mm in height, with a projection of 146mm for a neat wall-mounted installation.

Features & Benefits:

Brushed bronze finish over durable brass
Three-handle, two-outlet control
Independent operation for each shower function
Thermostatic temperature control
Concealed horizontal wall fitting
Width: 275mm
Height: 120mm
Projection: 146mm
G3/4" thread connections
Minimum water pressure: 0.5 bar
15-years of guarantee

Flow Rate:

0.2Bar: 12L/min
0.5Bar: 17L/min
1Bar: 21L/min
2Bar: 28.5L/min
3Bar: 36Lmin

Product code	TR31693BRZ
Type	Concealed shower valves
Shape plate	Rectangular
Material	Brass
Finish	Brushed Bronze
Colour	Bronze
Style	Modern
Mounting type	Wall mounted
Number of outlets	2 outlets
Handle type	Square, triple control
Cartridge type	Ceramic disc
Height (mm)	120
Width (mm)	275
Projection (mm)	146
Orientation	Landscape
Minimum water pressure	0.5
Temperature control	Thermostatic
Manufacturer guarantee	15 years
