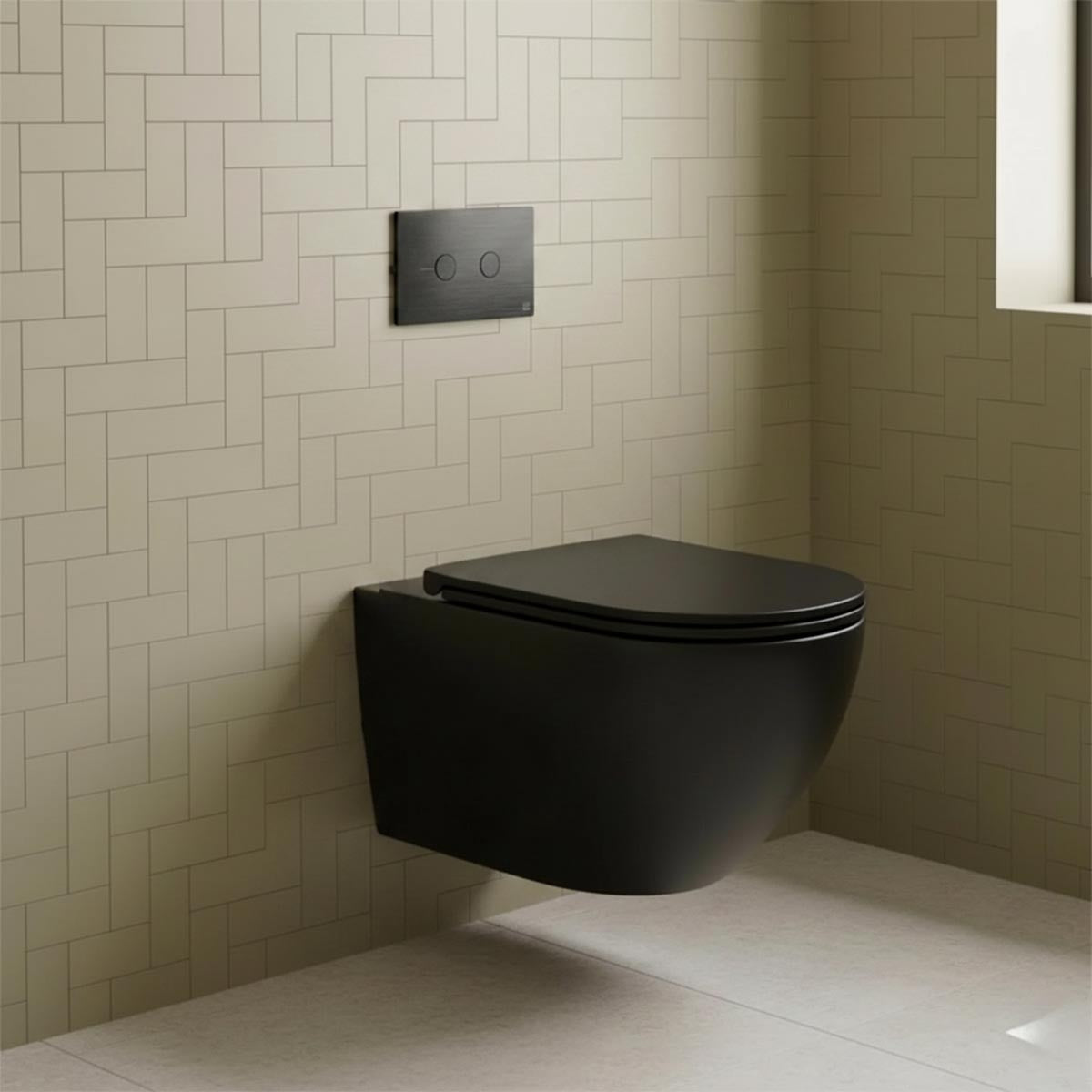

Matt Black Wall Hung Toilet with Seat & Concealed Cistern W.C Frame Set 0.82m and Brushed Black Flush Plate

Uniting sleek design with everyday practicality, this concealed toilet set features a D-shaped matt black seat, freestanding W.C. frame, concealed cistern and a brushed black flush plate as one complete arrangement.

Made from porcelain, the wall-hung pan offers a durable, easy-clean surface for everyday use. It has a soft close sandwich seat for added comfort and quieter operation. The rimless bowl helps reduce dirt traps, while tornado flush technology improves rinsing performance. A rear outlet allows neat connection to the concealed waste system for a clean finish.

Supporting the overall installation, the 0.82m W.C frame is designed to hold the suspended pan securely while hiding the cistern and service components behind the wall. Supplied with brackets and a W.C. bend, it allows dependable fitting and effective waste connection within the concealed space. The built-in cistern is equipped with a dual flush mechanism offering 3 litre/6 litre options, giving greater control over daily water use.

The brushed black flush plate provides the visible access point for operating the concealed cistern and may be installed for either front or top entry depending on project requirements. Its rectangular faceplate includes two pneumatic push buttons, each linked to a separate flush volume for smooth and accurate use. In addition, it offers practical access to the cistern for future servicing and maintenance.

Keeping the exterior clean and uncluttered, only the pan and flush plate remain visible, creating a smart integrated appearance suited to contemporary bathroom interiors.

Features & Benefits:

Wall Hung Toilet Pan:

• Matt black porcelain pan for a bright modern look
• Contemporary D-shaped design
• Rimless bowl helps make cleaning easier
• Tornado flush technology
• Rear outlet for concealed waste connection
• Height: 365mm
• Width: 365mm
• Projection: 495mm
• Includes a 2-year guarantee, extendable to 15 years on registration

Concealed Cistern & W.C. Frame:

• Floorstanding pre-wall frame
• Designed for wall hung toilet installation
• Creates a clean built-in finish
• Supplied with brackets and W.C. bend
• Front and top flush installation
• 3L/6L dual flush for water-saving use
• WRAS approved
• Height: 820mm
• Width: 400mm
• Includes a 2-year guarantee, extendable to 5 years on registration

Flush Plate:

• Brushed black finish
• Twin-button flush design
• Pneumatic operation for smooth performance
• Height: 145mm
• Width: 215mm
• Includes a 2-year manufacturer guarantee
