Exposed Thermostatic Shower with Adjustable Riser, Multifunction Shower Handheld and Bath Spout - Brushed Brass

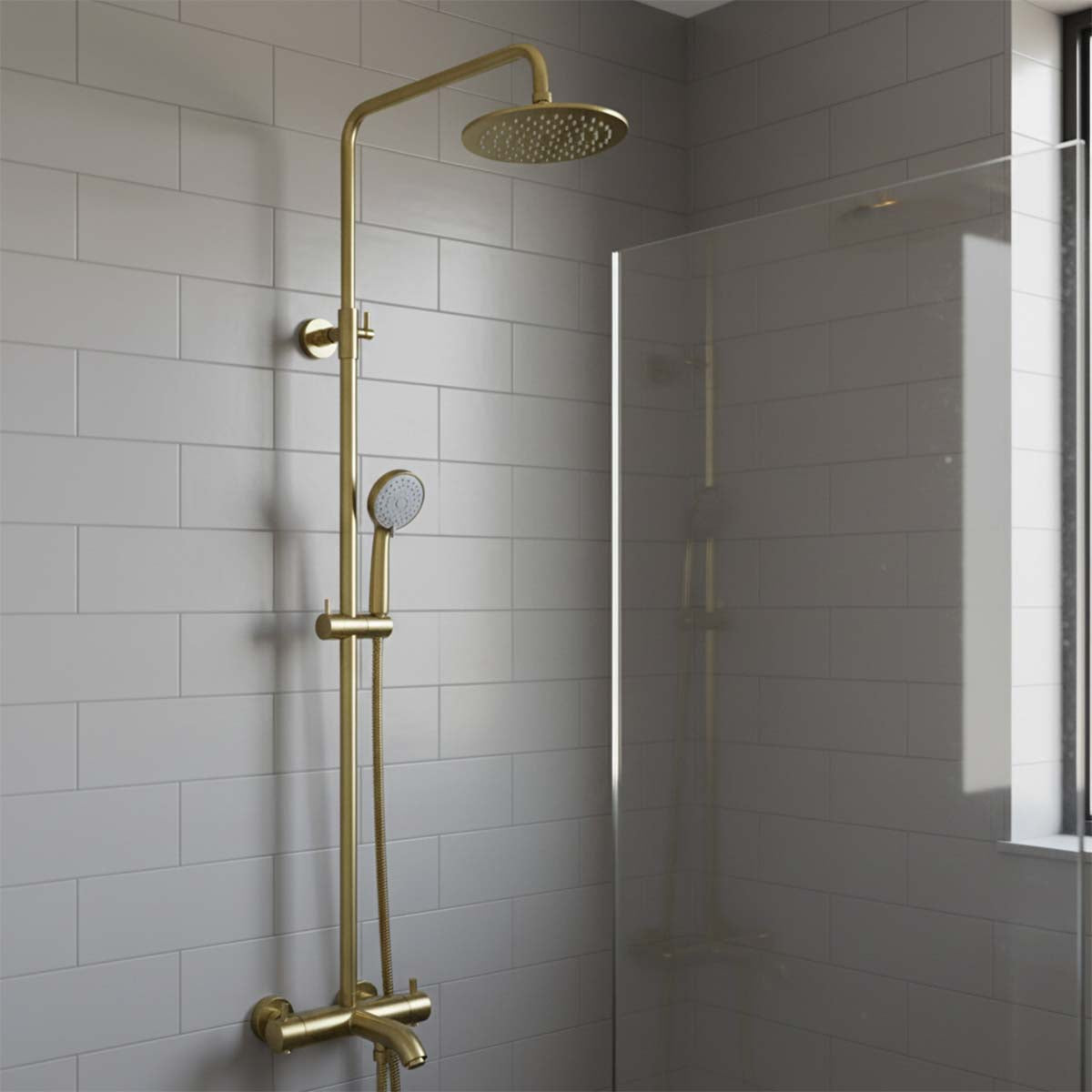

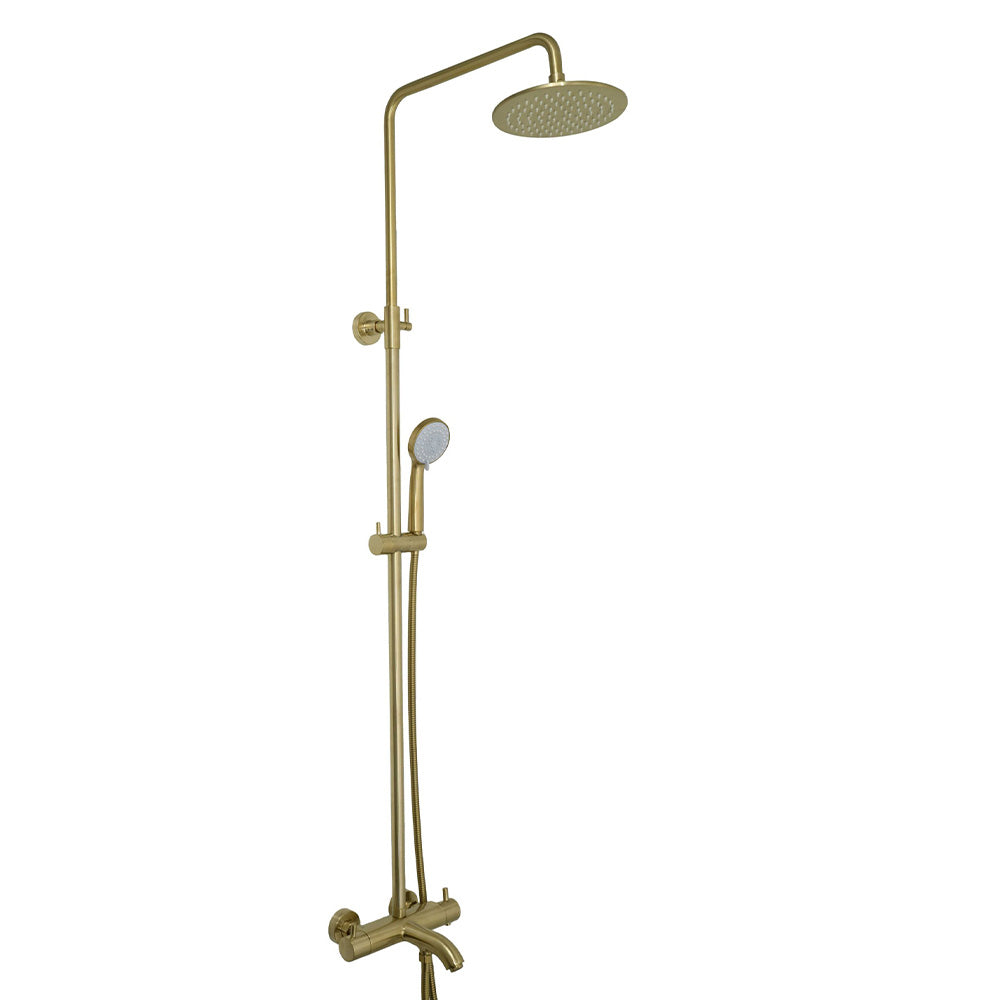

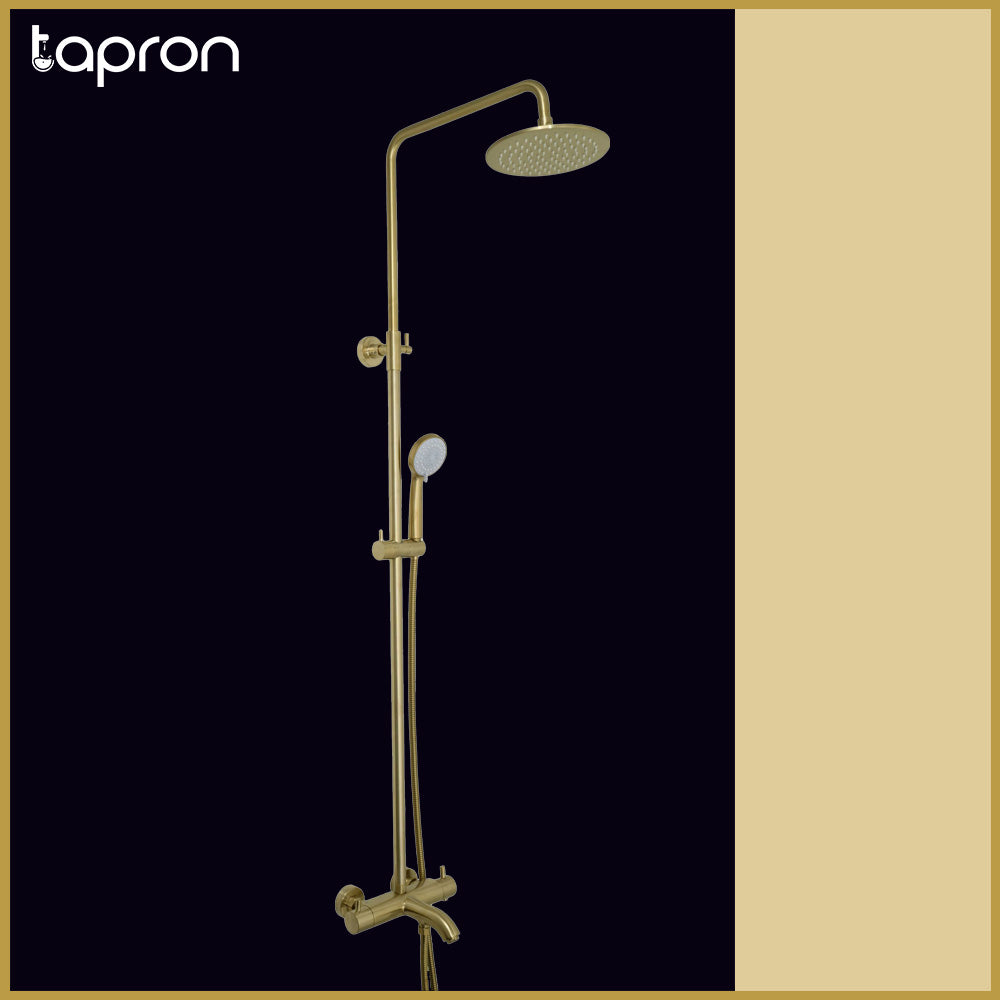

A shower that can do more without making the bathroom feel busier is exactly what this exposed thermostatic shower set is designed to offer. Made from brass and finished in brushed brass, the complete set includes a wall mounted bar shower valve, adjustable shower riser, rainfall shower head, bath spout and hand shower. The shower column keeps the controls and showering components accessible.

The three way shower valve controls allow you to adjust the water temperature and switch between the overhead shower, hand shower and bath spout. Turn the dials to regulate the temperature or supply water between the different showering and bathing functions. Ceramic disc cartridge provides smooth control and helps minimise unwanted drips. The integrated bath spout projects 135.3mm from the valve, providing a convenient way to fill the bath from the same fitting.

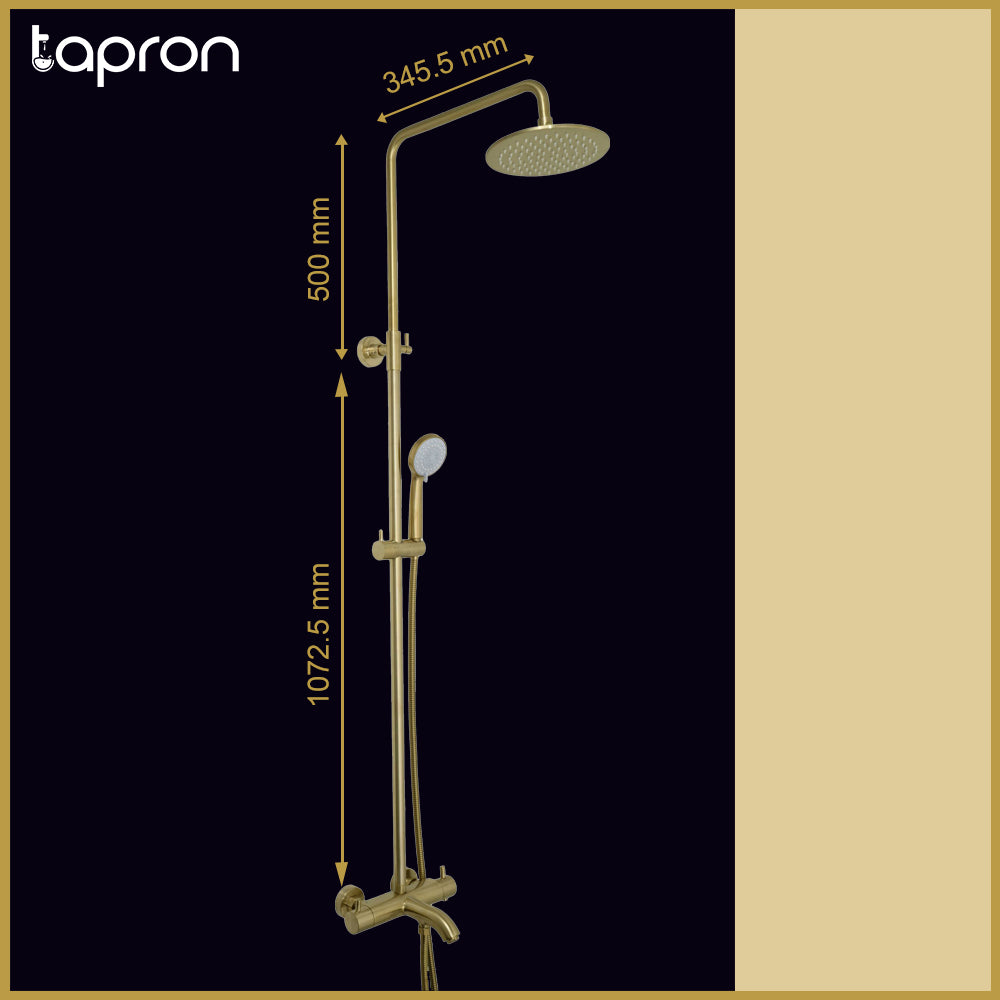

Above the valve, the adjustable shower riser carries water up to the overhead shower while also providing a mounting position for the hand shower. The lower section measures 1072.5mm, while the upper section can be adjusted between 90–500mm to give greater flexibility when setting the height of the shower. A circular bracket holds the hand shower against the riser and can be positioned at a comfortable height. At the top, the shower arm extends 345.5mm to position the rainfall head comfortably.

This stunning thermostatic shower bath column system suits any contemporary space and comes with a durable PVD coating, helping the set withstand regular use. The valve measures 264mm wide and uses G1/2 thread connections, with a minimum operating pressure of 1 bar and WRAS approval. Pair it with a coordinating brushed brass waste, for a considered look throughout the space. Backed by a 15-year manufacturer guarantee, including 5 years on the cartridge.

Features & Benefits:

• Solid brass construction with brushed brass finish and PVD coating
• Complete set includes wall mounted bar shower valve, rainfall shower, adjustable shower riser, hand shower and bath spout
• Exposed wall-mounted installation
• 3 way shower valve
• Ceramic disc cartridge
• Dual controls for temperature and shower function selection
• Adjustable upper riser section: 90–500mm
• Lower riser section: 1072.5mm
• Circular adjustable bracket for hand shower
• Bath spout projection: 135.3mm
• Overhead shower arm projection: 345.5mm
• Valve width: 264mm
• G1/2 thread connections
• Minimum water pressure: 1 bar
• WRAS approved
• 15-year manufacturer guarantee, including 5 years on cartridge

 Flow Rate Bath (Mix Water):

• 0.5Bar: 9.8L/min
• 1Bar: 11.9L/min
• 2Bar: 15L/min
• 3Bar: 18.5L/min

Flow Rate Shower (Mix Water):

• 0.5Bar: 7L/min
• 1Bar: 9.6L/min
• 2Bar: 13L/min
• 3Bar: 15.6L/min
