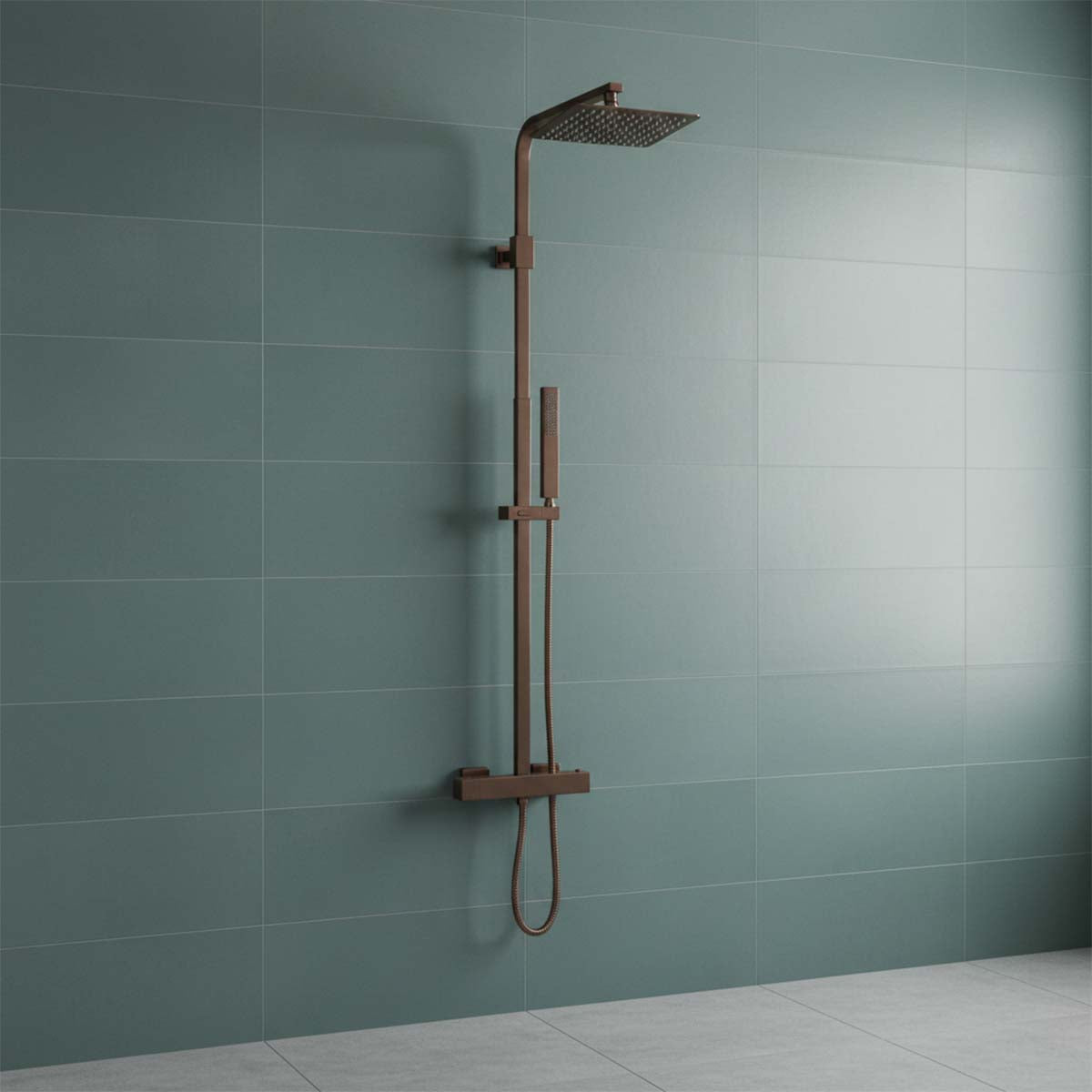

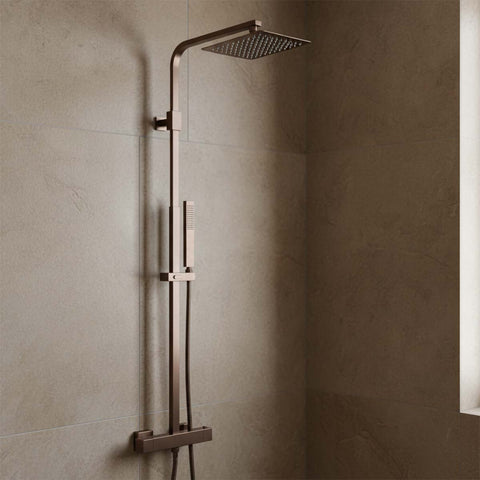

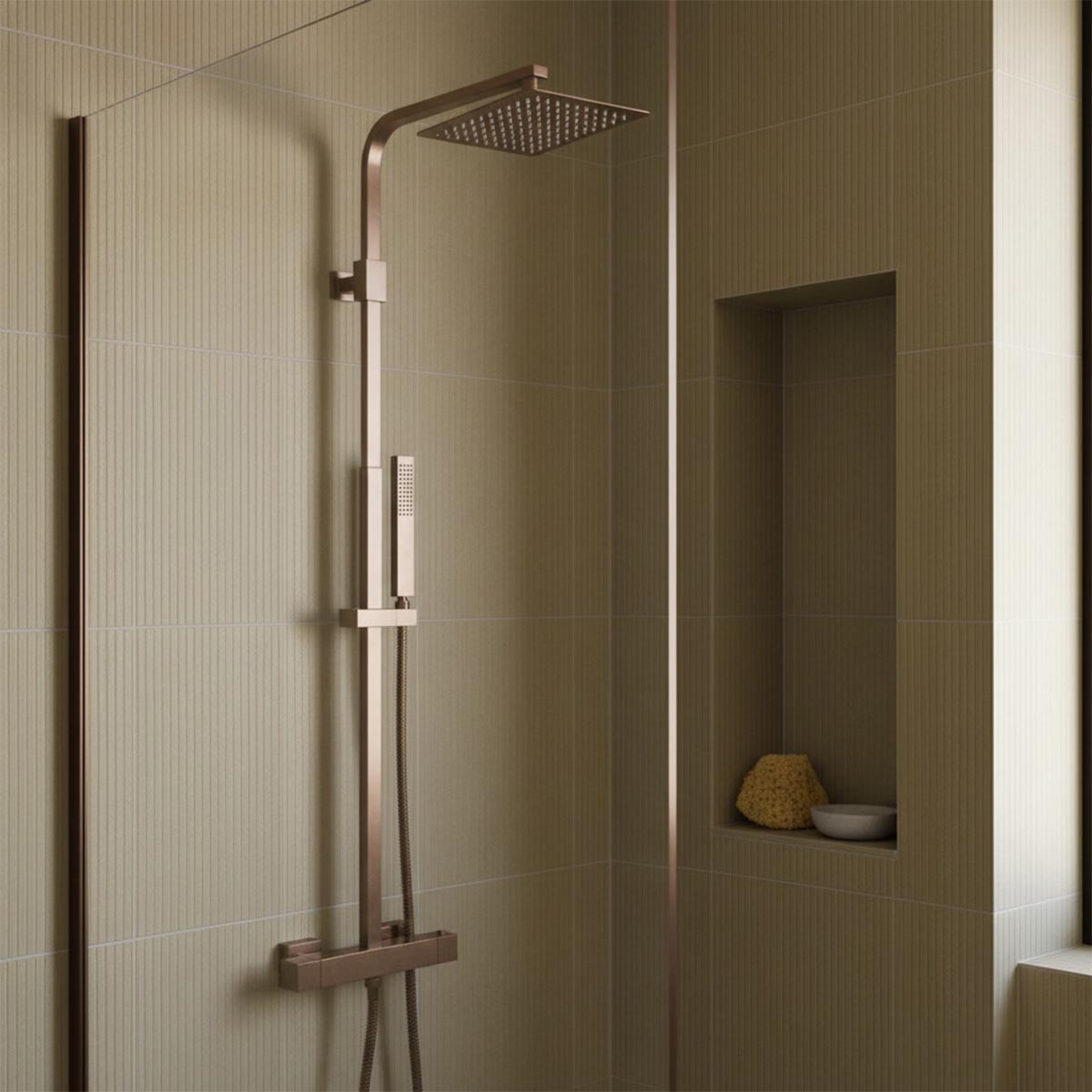

Square Exposed Thermostatic Bar Valve 2 Outlets and Multi-Function Handheld Shower - Brushed Bronze

Bring a refined architectural character to the bathroom with this exposed brushed bronze shower bar valve, combining an thermostatic valve, a square shower head and adjustable handset in a clean, coordinated arrangement.

The exposed valve keeps flow and temperature control within easy reach, with separate dials for each function. Its thermostatic mechanism helps maintain a comfortable temperature, while ceramic disc technology provides smooth operation and helps minimise unwanted drips. G1/2" connections and an HP1 minimum pressure requirement make it suitable for compatible high-pressure installations.

An adjustable shower riser rail kit allows the single-function handset position to be tailored, with the upper section extending by 80–520mm. The flexible hose gives the brushed bronze handheld shower head freedom of movement for more directed rinsing, while the 310.5mm projection of the square bronze shower head provides generous coverage. Rubber spray nozzles on both components make limescale easier to remove with a simple wipe.

Together, the square shower head with handheld creates a versatile bronze shower mixer giving you both broad overhead coverage and a more targeted option when required. With an overall height of 1227mm and a 678mm lower riser, the shower head combo set maintains a practical installation profile. A 15-year manufacturer guarantee, including 5 years on the cartridge, provides added reassurance for everyday use.

Features & Benefits:

• Solid brass construction with brushed bronze and PVD coating
• Exposed rectangular thermostatic shower valve
• Dual dials for water flow and temperature control
• Ceramic disc technology
• Adjustable rectangular shower riser rail
• Single-function pencil shower handset with hose
• Brushed bronze overhead shower head
• G1/2" thread connections with HP1 minimum pressure

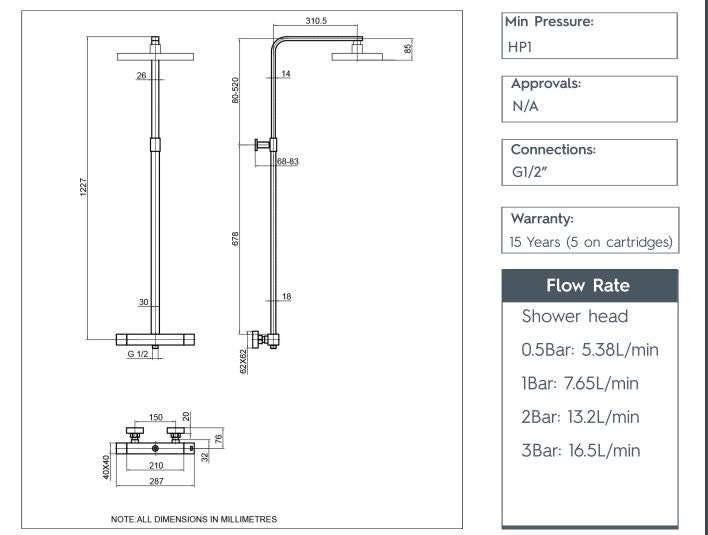

• 1227mm overall height; 310.5mm shower head projection
• 15-year manufacturer guarantee, including 5 years on the cartridge

Flow Rate:

Shower Head

0.5Bar: 5.38L/min
1Bar: 7.65L/min
2Bar: 13.2L/min
3Bar: 16.5L/mi
