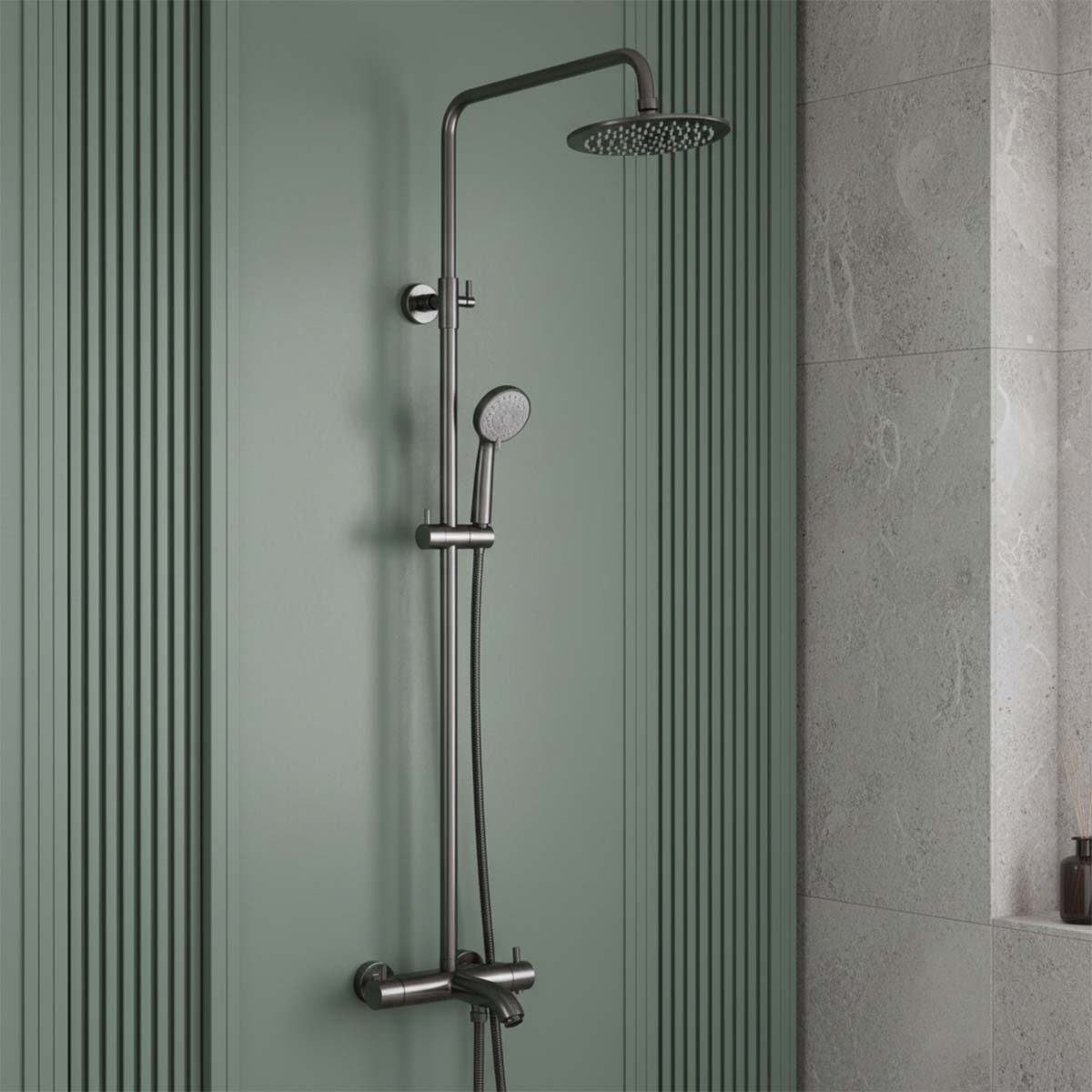

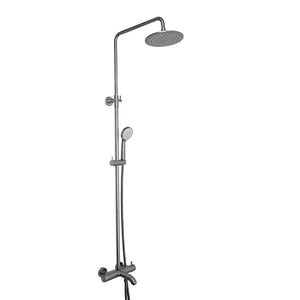

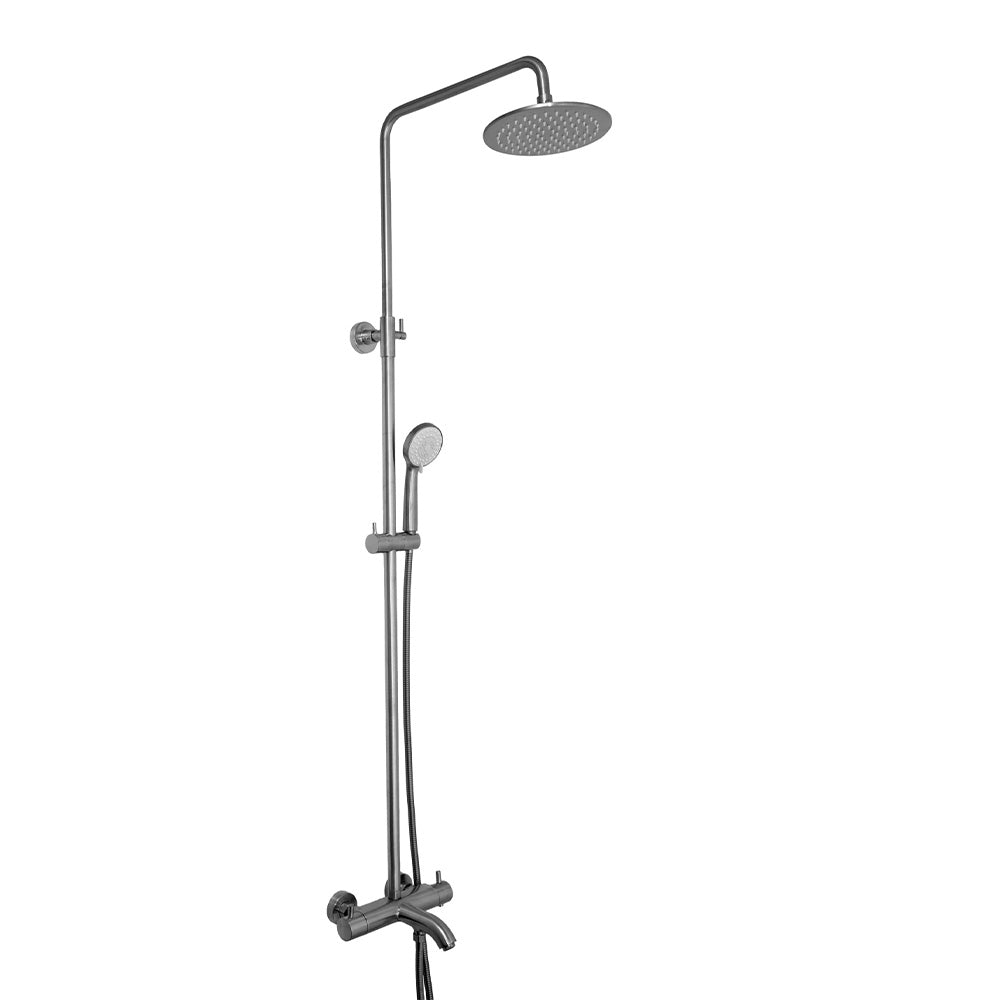

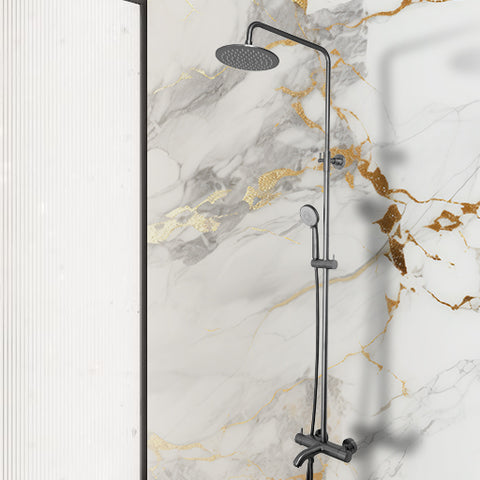

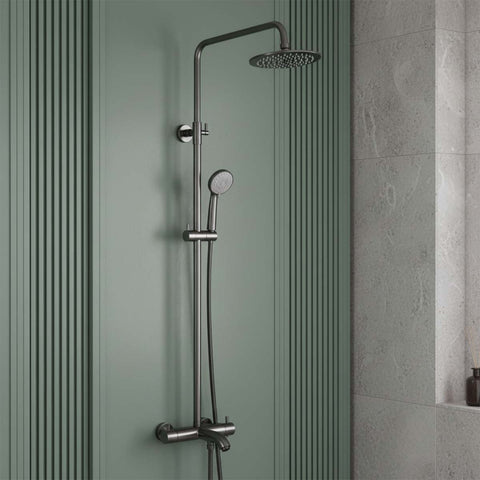

Exposed Thermostatic Shower Mixer with Adjustable Riser, Multi-function Handshower and Bath Spout - Brushed Black

Designed for bathrooms where both showering and bathing need to work from one cohesive fitting, this shower column combines a round shower head, adjustable hand shower and integrated bath spout with an exposed thermostatic valve. The wall-mounted arrangement keeps each function readily accessible, while the brushed black finish gives the brass construction a distinctive modern character. With everything integrated into one system, it offers a practical solution for a bath with shower without compromising on the clean appearance of the installation.

The exposed valve provides straightforward control over the water supply and temperature, with a dial at either end of the 264mm-wide body. One control manages the flow while the other provides thermostatic temperature adjustment, allowing you to switch between the brass shower head, handset and bath spout with ease. Ceramic disc cartridge technology supports smooth, reliable operation, while the integrated spout projects 135.3mm to provide a convenient filling point for the bath.

Above the valve, the shower riser combines fixed and adjustable sections to make positioning more adaptable during installation. The lower section measures 1072.5mm, while the upper section can be adjusted from 90–500mm. A wall-mounted holder allows the handset to slide to a comfortable height, and the flexible hose makes it easy to direct the water for targeted rinsing or everyday washing. The 345.5mm shower arm positions the round shower head at a comfortable reach, while rubber spray nozzles on both the overhead head and handset help remove limescale with a simple wipe.

Finished in brushed black, the brass body is protected by a PVD coating designed to withstand the demands of regular bathroom use. The system uses G1/2 thread connections, operates from a minimum pressure of 1 bar and carries WRAS approval, making it suitable for a range of modern wall mounted bathroom installations.

Features & Benefits:

• Solid brass construction with brushed black PVD finish
• Complete set includes bar shower valve, rainfall shower, adjustable hand shower, shower riser and bath spout
• Exposed wall-mounted installation
• Bar valve with dual dials for temperature and shower function control
• Thermostatic temperature control
• Ceramic disc cartridge
• Adjustable bracket for hand shower
• Upper riser adjustment: 90–500mm
• Lower riser height: 1072.5mm
• Shower arm projection: 345.5mm
• Bath spout projection: 135.3mm
• Valve width: 264mm
• G1/2 thread connections
• Minimum water pressure: 1 bar
• WRAS approved
• 15-year manufacturer guarantee, including 5 years on cartridge

Flow Rate- Bath (Mix Water):

• 0.5Bar: 9.8L/min
• 1Bar: 11.9L/min
• 2Bar: 15L/min
• 3Bar: 18.5L/min

Flow Rate- Shower (Mix Water):

• 0.5Bar: 7L/min
• 1Bar: 9.6L/min
• 2Bar: 13L/min
• 3Bar: 15.6L/min
