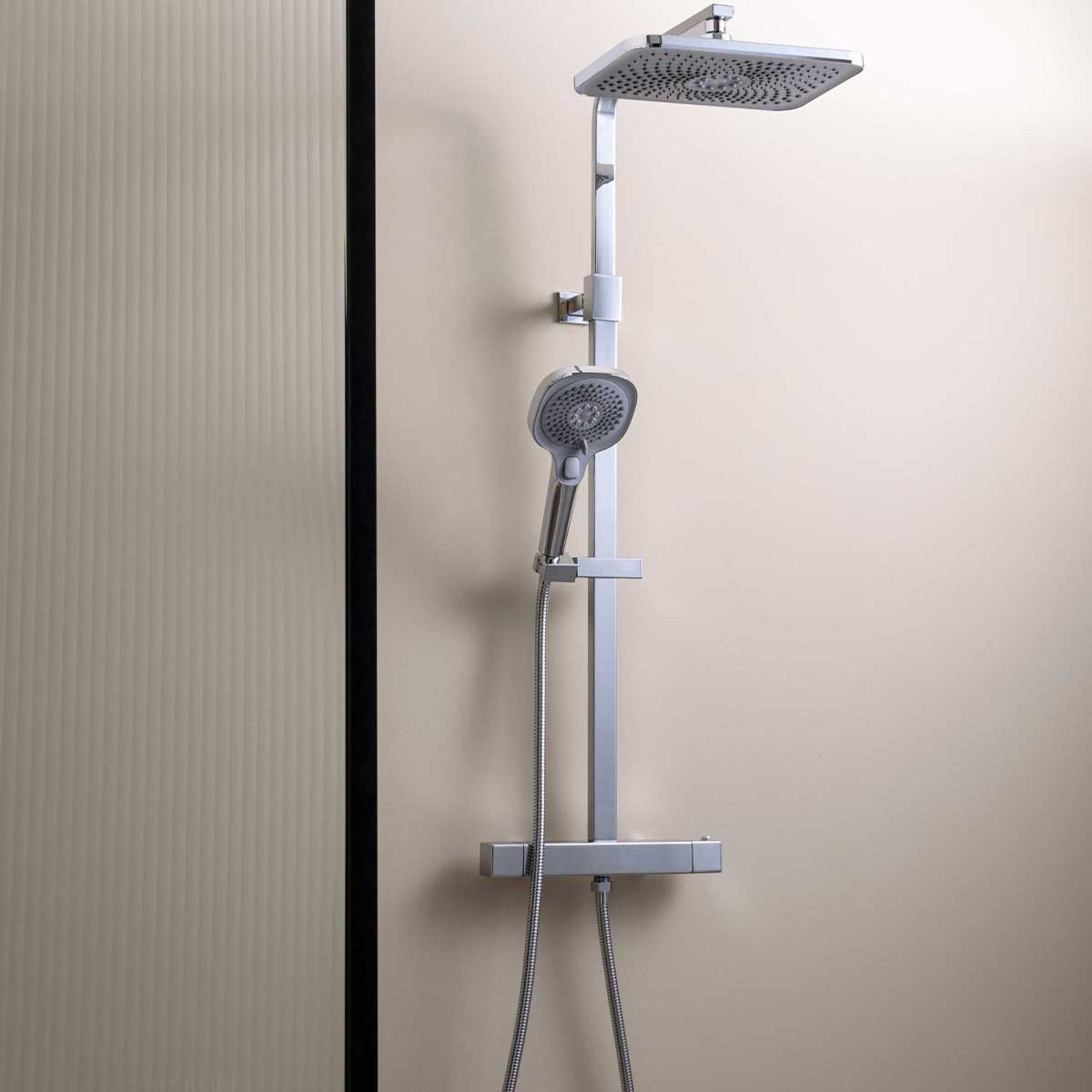

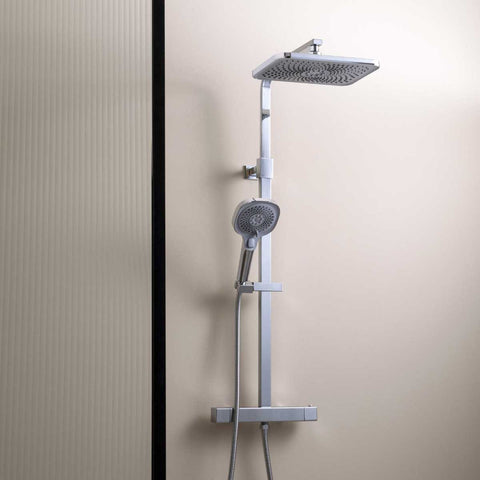

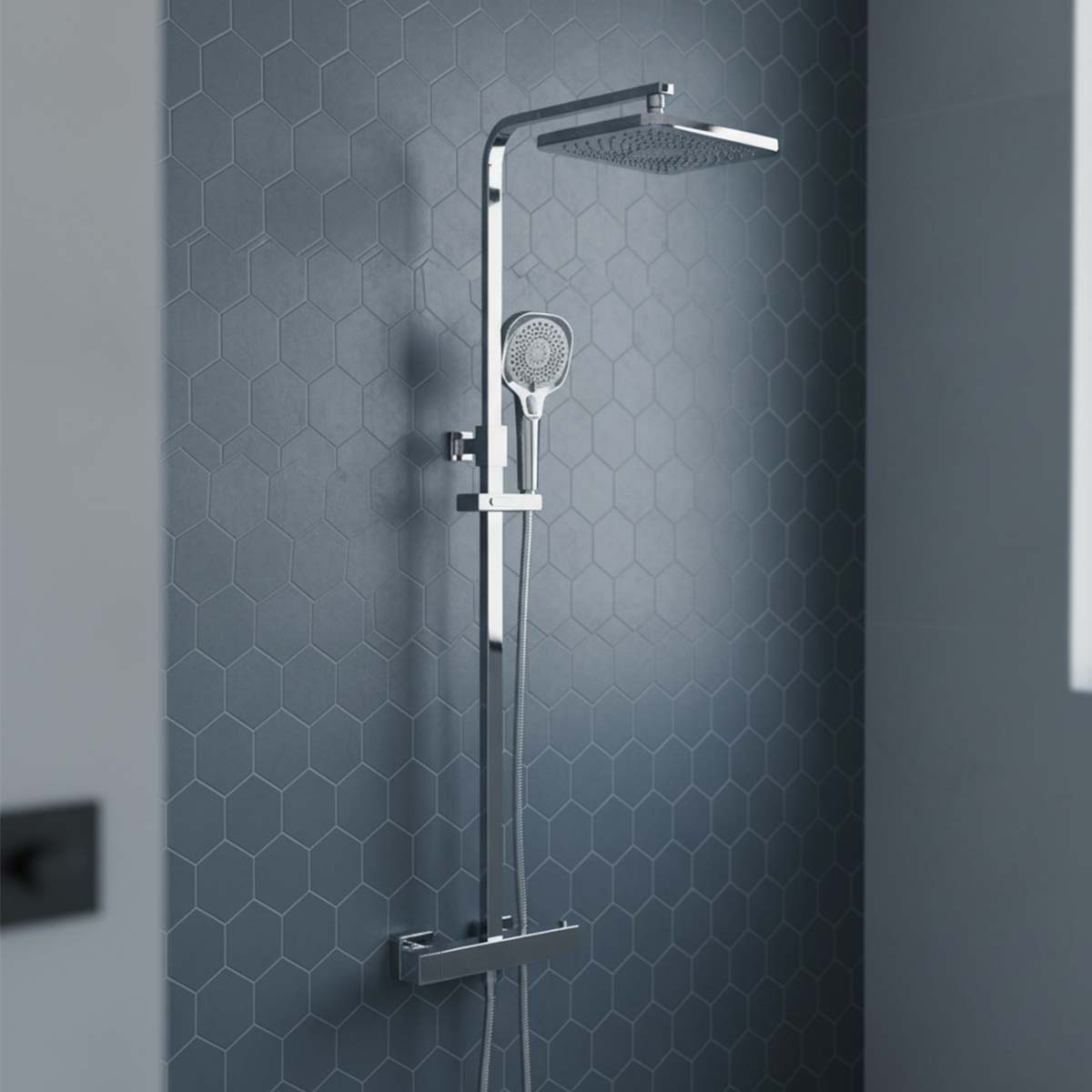

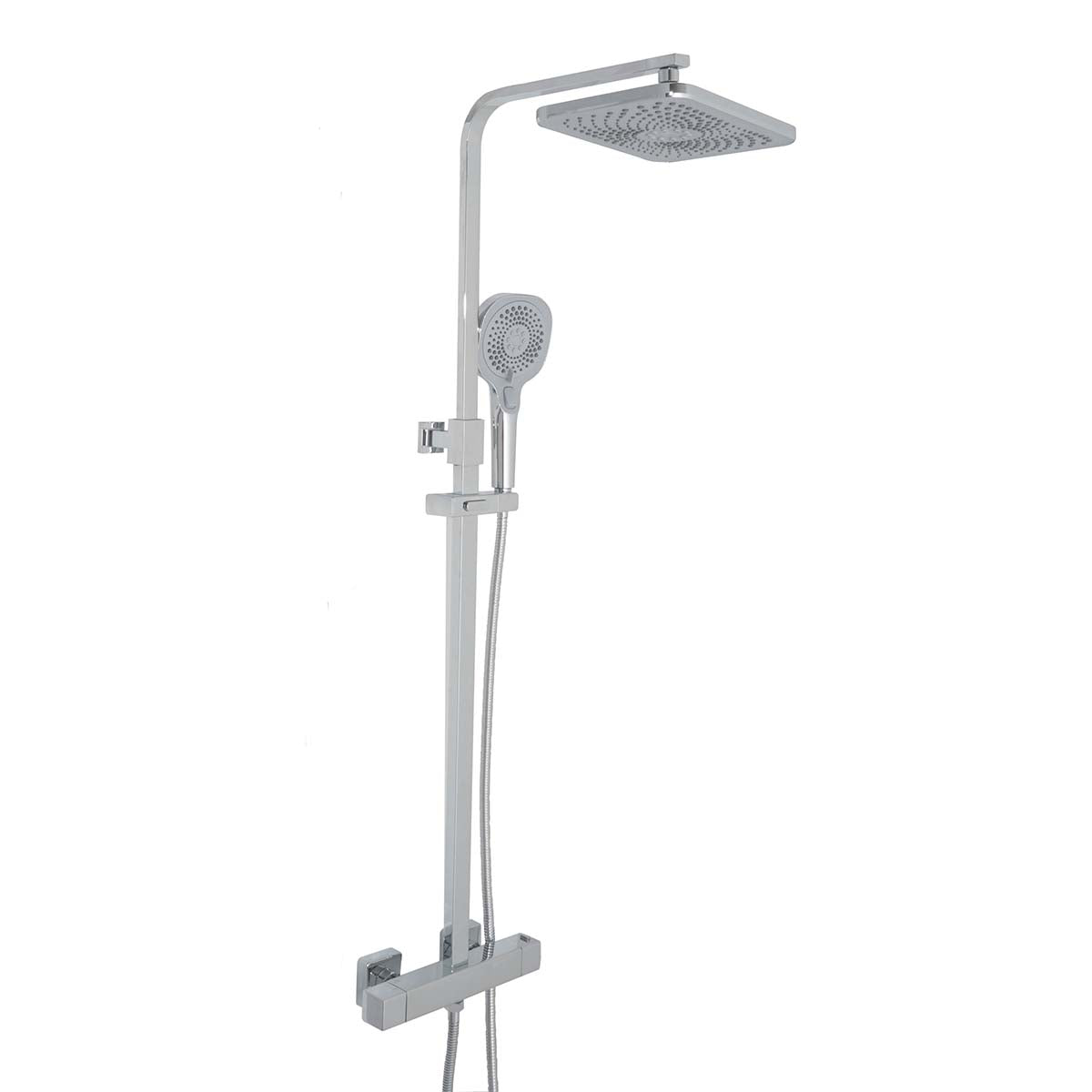

Square Thermostatic Mixer Shower with Fixed Shower Head and Handheld Shower - Chrome

Designed around a neat vertical profile, this chrome thermostatic shower set brings the essential elements of a versatile showering setup together in one coordinated arrangement. The solid brass construction is finished in bright chrome, with the wall mounted shower bar valve sitting at the base, a shower riser rail extending upwards and a square overhead shower positioned above. An adjustable handheld shower completes the setup, giving you a second showering position.

The dual exposed thermostatic valve keeps operation intuitive, with two controls placed at either end of its body. One regulates the water temperature preventing the risk of scalding, while the other allows you to change between the overhead shower and handheld shower.

The riser rail then brings the different elements together, carrying water upwards to the overhead shower while providing a sliding mount for the square multifunction handheld shower. Its holder can be moved along the rail to find a comfortable position, allowing the rail height to be set between 80–520mm during installation while offering multiple spray options. The overhead shower head projects 310.5mm from the wall, providing comfortable reach.

With an overall height of 1227mm, G1/2 thread connections and a minimum operating pressure of 1 bar, the system is suited to compatible high-pressure plumbing installations. Continue the look with a coordinating chrome shower waste or drain and matching bathroom accessories. A 15-year manufacturer guarantee, including 5 years on the cartridge, provides added reassurance for everyday use.

Features & Benefits:

• Solid brass construction with bright chrome finish

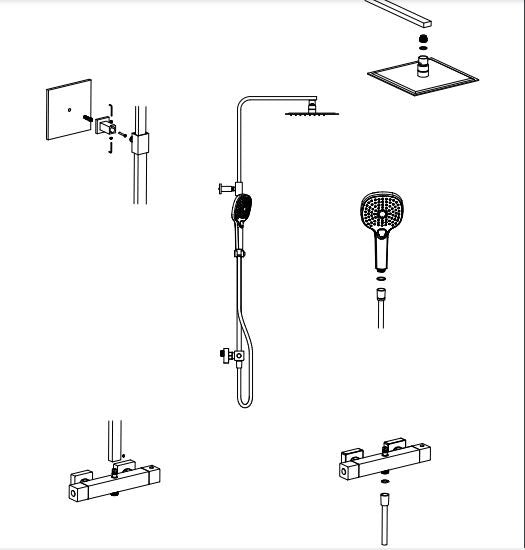

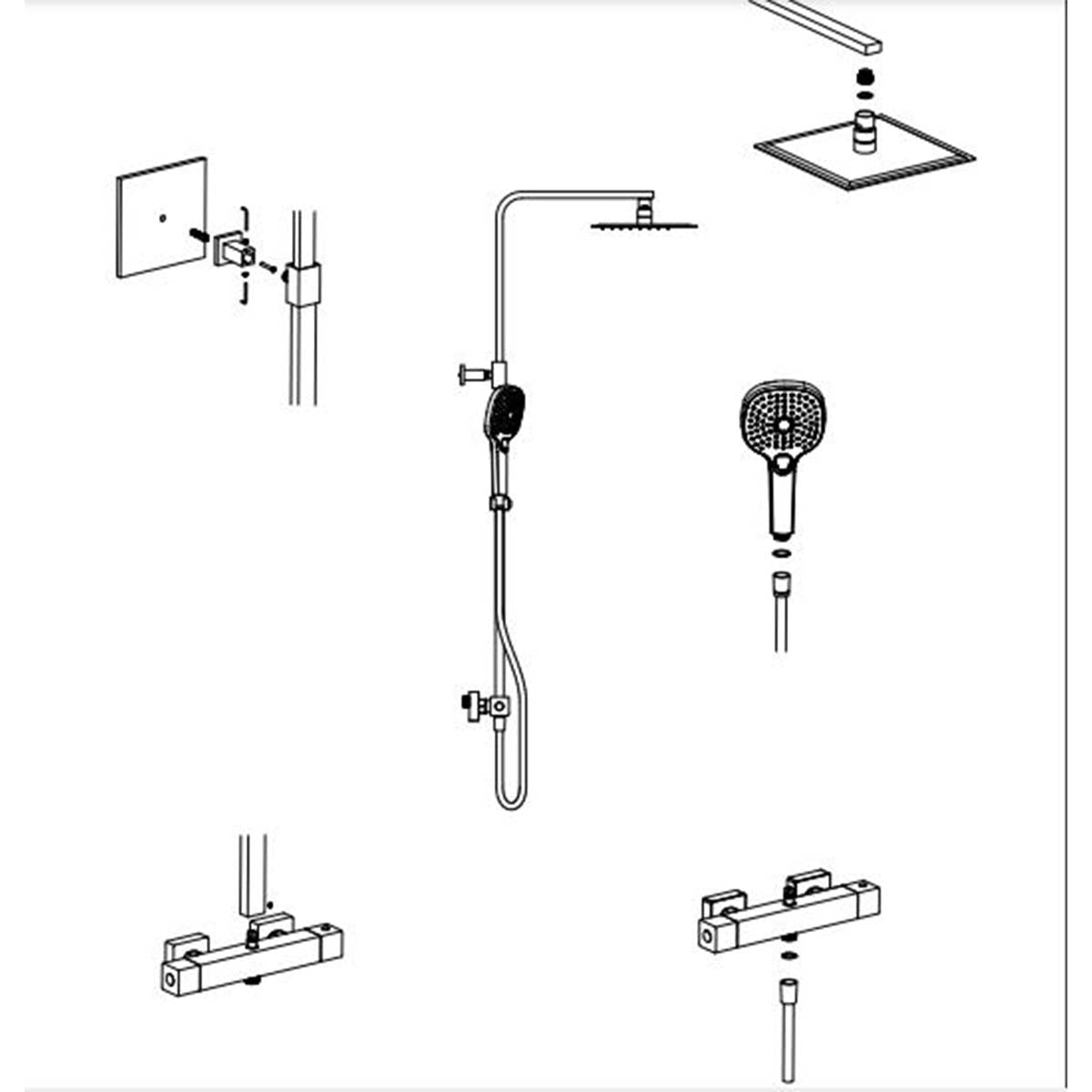

• Complete set includes thermostatic exposed bar valve, overhead shower, adjustable shower riser rail and adjustable multifunction handheld shower
• Wall-mounted installation
• Dual controls for temperature adjustment and switching between showering options
• Thermostatic temperature control
• Ceramic disc cartridge
• Riser height adjustable from 80–520mm

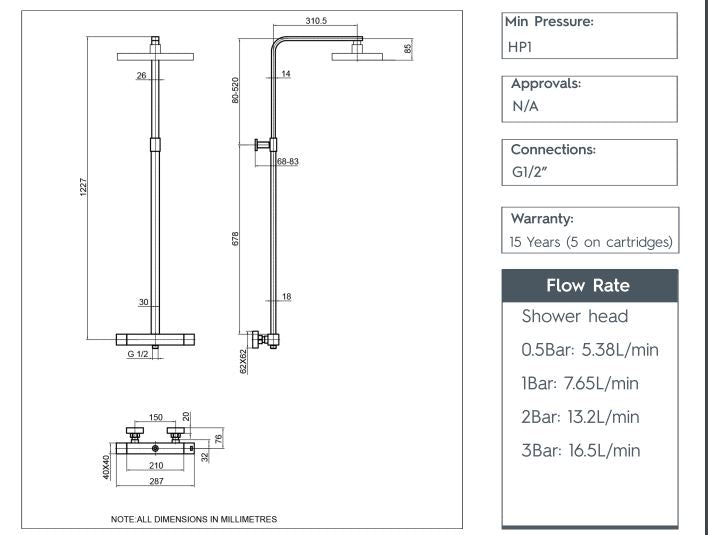

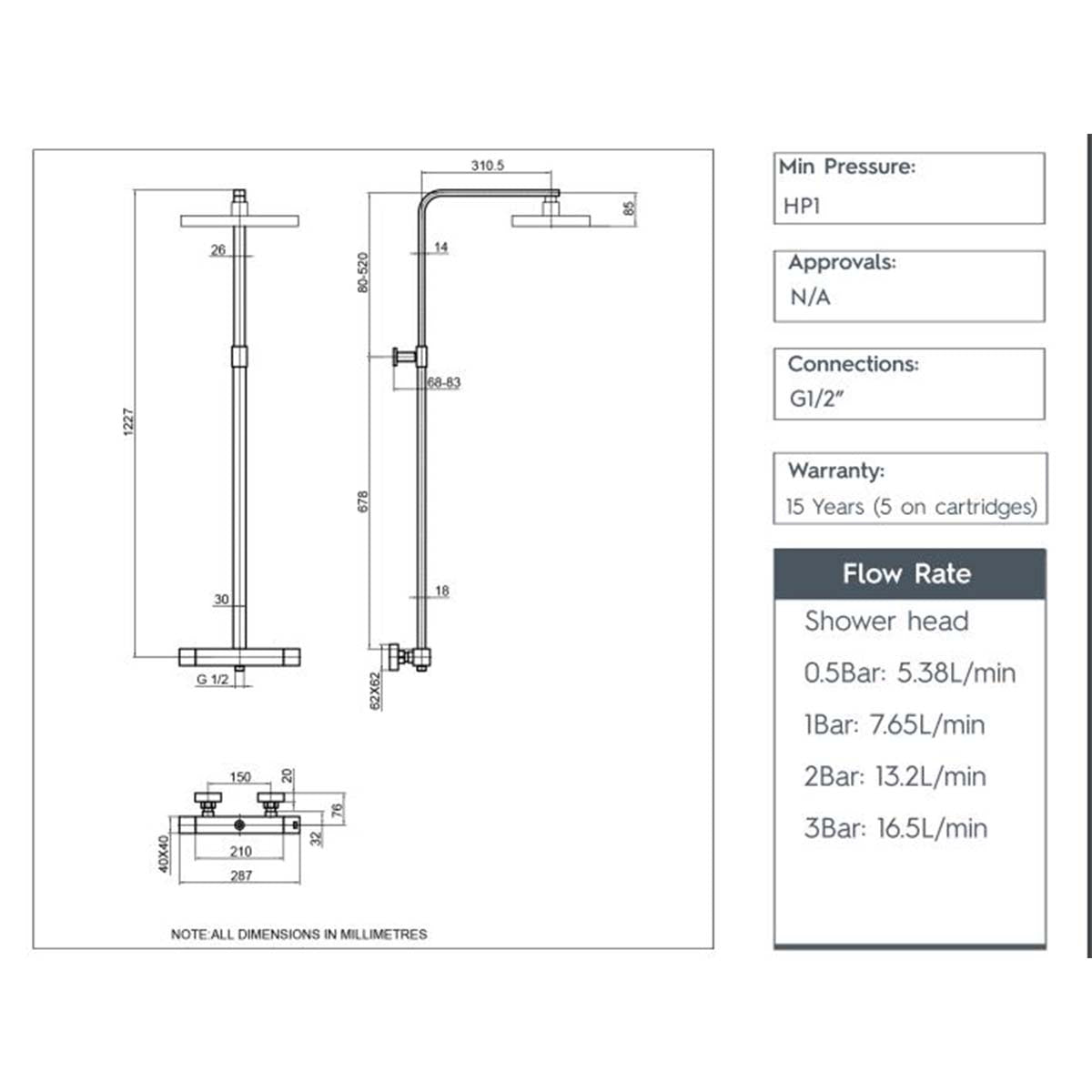

• Overall height: 1227mm
• Overhead shower projection: 310.5mm
• G1/2 thread connections
• Minimum water pressure: 1 bar
• 15-year manufacturer guarantee, including 5 years on cartridge

Flow Rate - Shower head:

• 0.5Bar: 5.38L/min
• 1Bar: 7.65L/min
• 2Bar: 13.2L/min
• 3Bar: 16.5L/min
