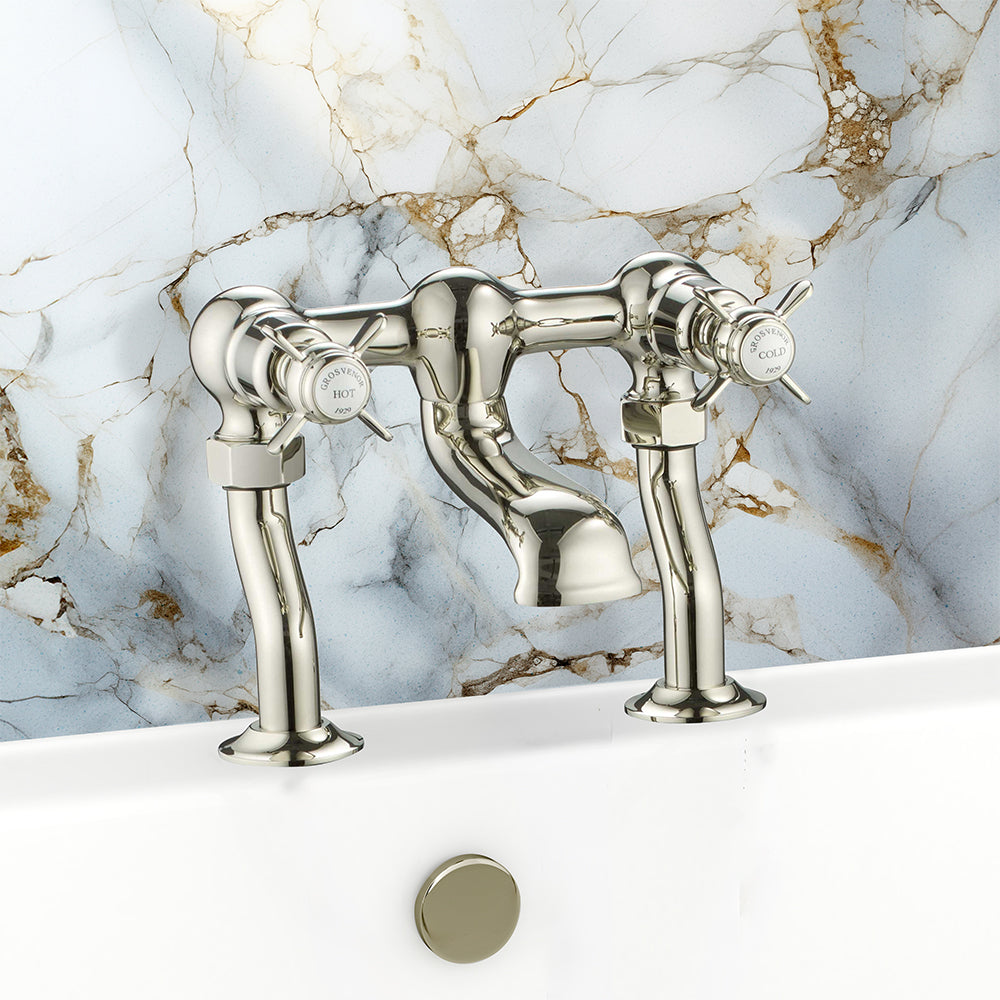

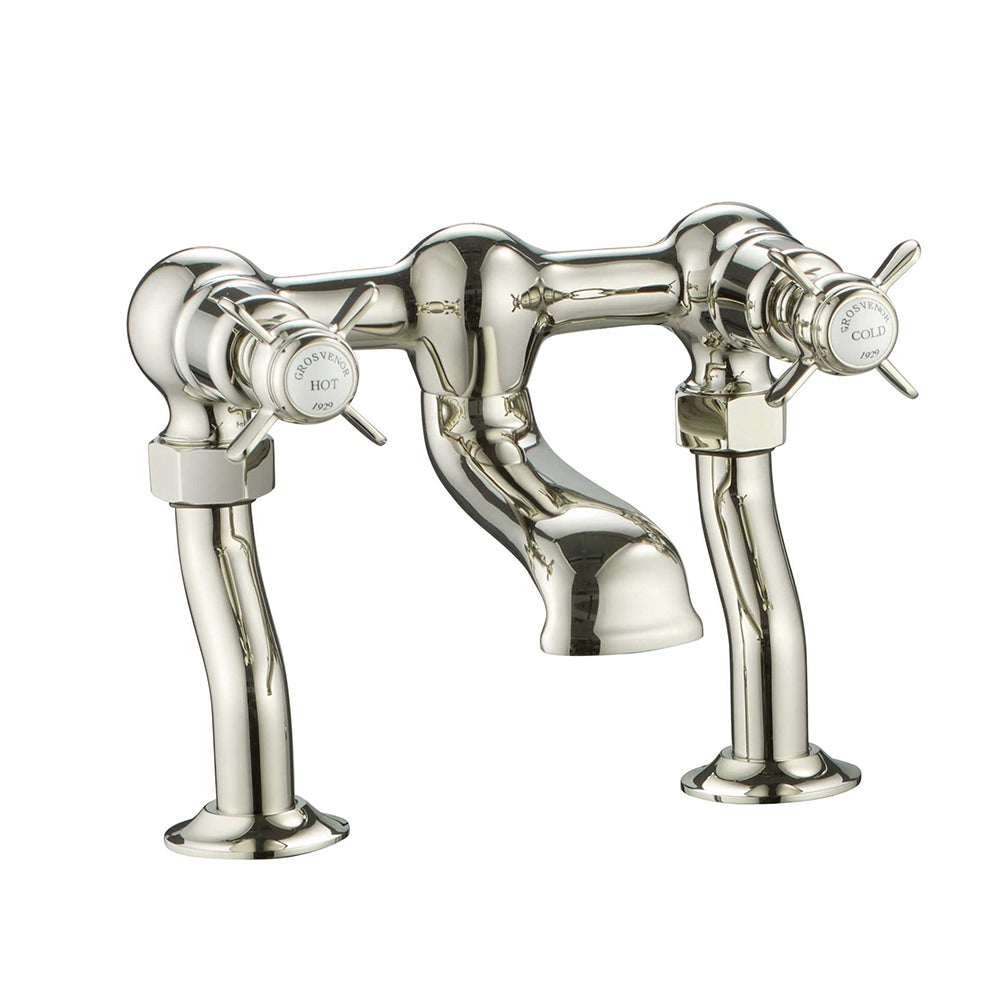

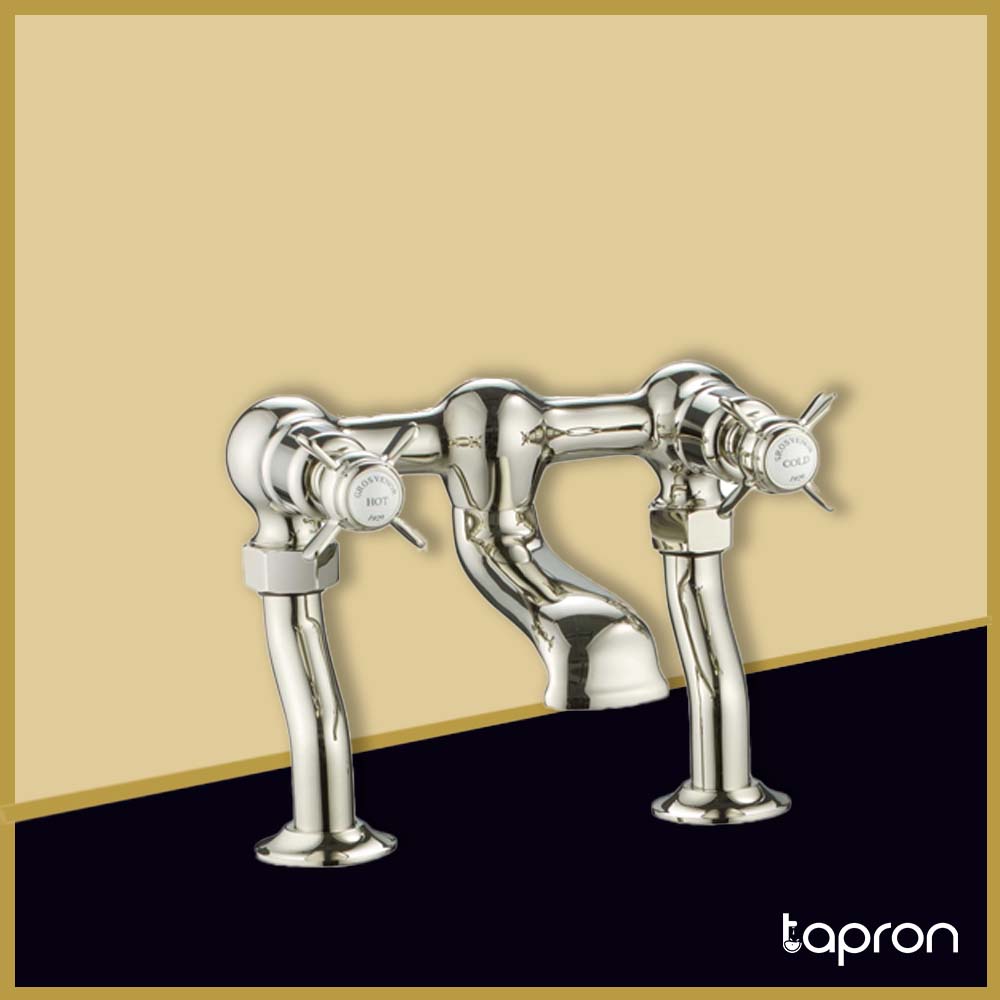

Traditional Deck Mounted Bath Filler Tap - Nickel

The distinctive shape of this bridge-style nickel bath tap comes from its raised horizontal body, which connects two upright pinch crosshead handles to a gently curved central spout. Designed for two-hole deck mounting, it offers an elegant alternative to separate pillar taps, with balanced proportions that reflect the character of Victorian bathroom brassware.

Made from brass, the traditional bath filler tap features separate valves for hot and cold water. Turning each handle opens or closes its respective supply, allowing you to regulate the flow and adjust the temperature while filling the bathtub. Both streams meet inside the connecting bridge before passing through the fixed outlet, providing a single flow rather than two individual streams.

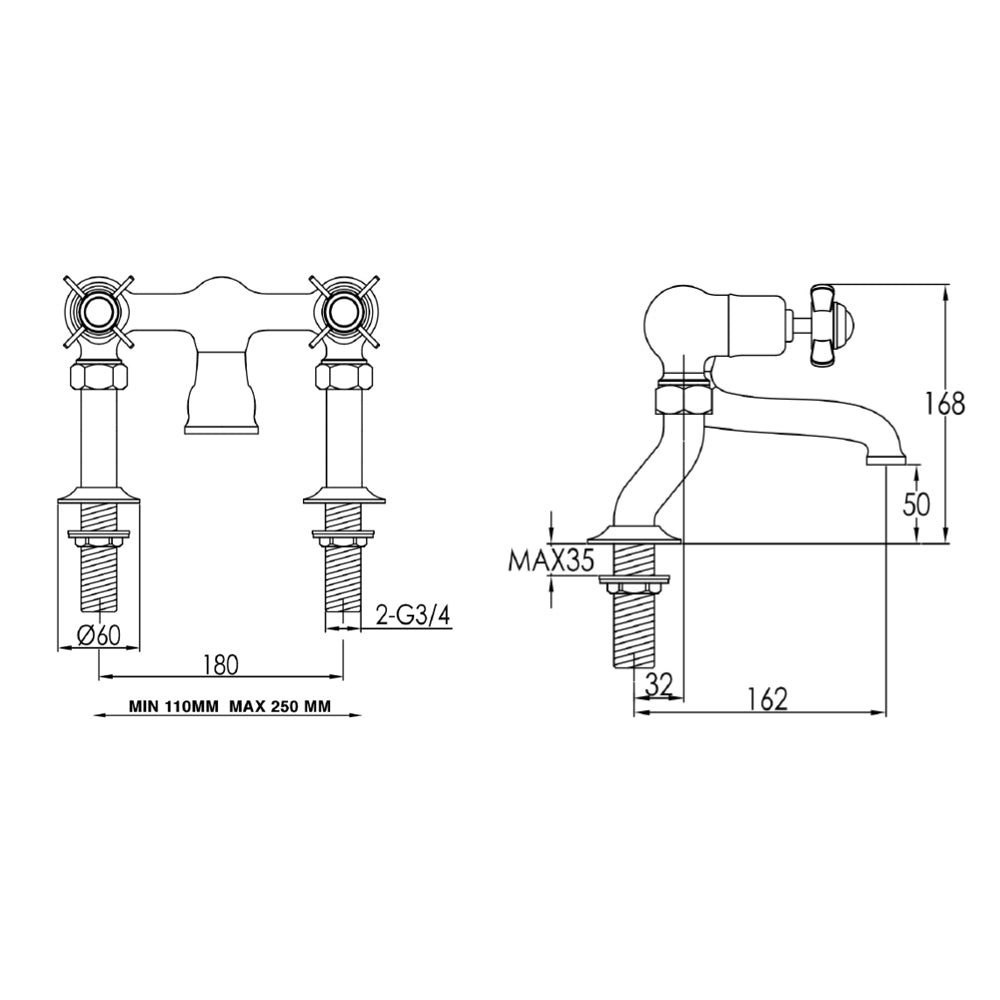

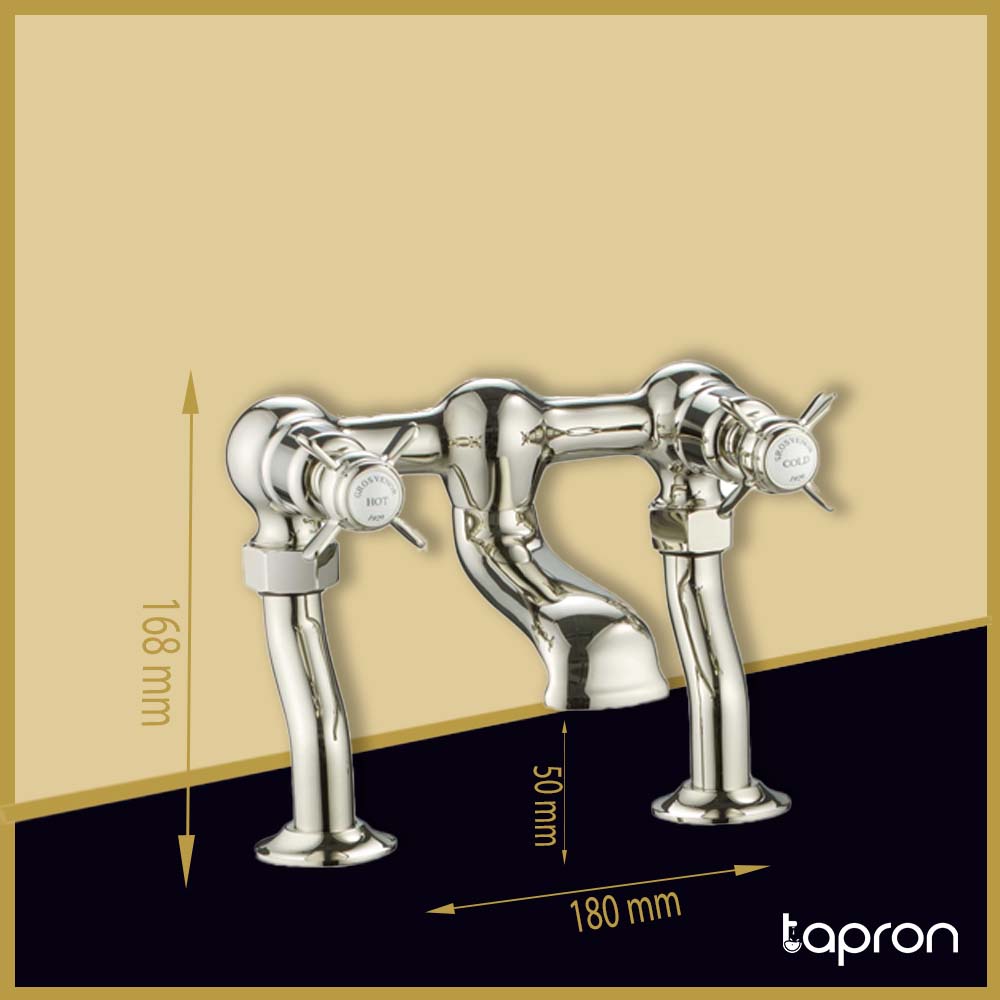

Standing 168mm high with a 162mm projection, the vintage bath tap requires pre-drilled openings spaced 180mm apart along the bath edge. The 3/4" threaded connections allow attachment to the plumbing, and a minimum water pressure of 0.2 bar is required for operation.

For a different installation style, wall and floor-mounted versions are also available, alongside matching bath wastes and bathroom accessories, all sold separately.

Features and Benefits:

• Brushed nickel finish lends a sophisticated heritage look
• Strong brass construction
• Bridge profile captures timeless Victorian charm
• Twin-hole bath deck fitting creates a seamless arrangement
• Pinch crosshead grips offer effortless hot and cold adjustment
• Curved spout combines water through one outlet
• Hand-operated controls make temperature regulation simple
• Ceramic disc mechanism helps minimise leaks and dripping
• Operates with water pressure starting from 0.2 bar
• G3/4" threaded inlets allow secure plumbing connections
• Width: 180mm
• Height: 162mm
• Projection: 162mm
• Covered by a 15-year manufacturer's guarantee

Flow Rate Bath:

• 0.2 Bar: 9L/min
• 0.5 Bar: 10.5L/min
• 1 Bar: 12.5L/min
• 2 Bar: 17L/min
• 3 Bar: 20.2L/min
