Traditional Wall Mounted Bath Mixer Tap with Handheld Shower and Lever Handles

Finished in polished chrome, this Victorian chrome bath tap with shower attachment is crafted from solid brass and accented with black ceramic details for a refined period look. Its classic bridge design brings the separate elements together in a balanced arrangement, while the two-hole wall installation keeps the bath rim clear and everything within comfortable reach.

Separate lever handles control the hot and cold supplies independently, allowing you to adjust the flow and balance the temperature as the bath fills. A dedicated diverter lever changes the water route from the spout to the telephone-style handset, providing a second outlet for showering or rinsing when needed.

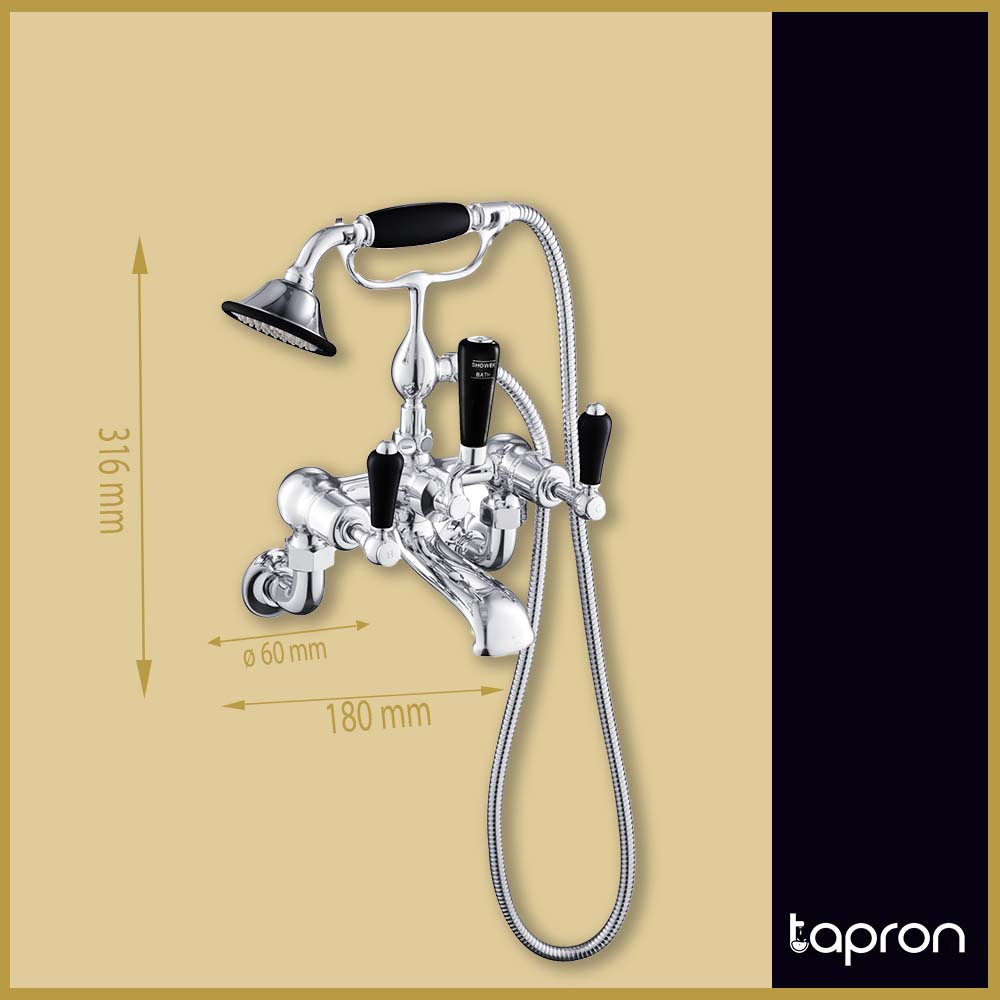

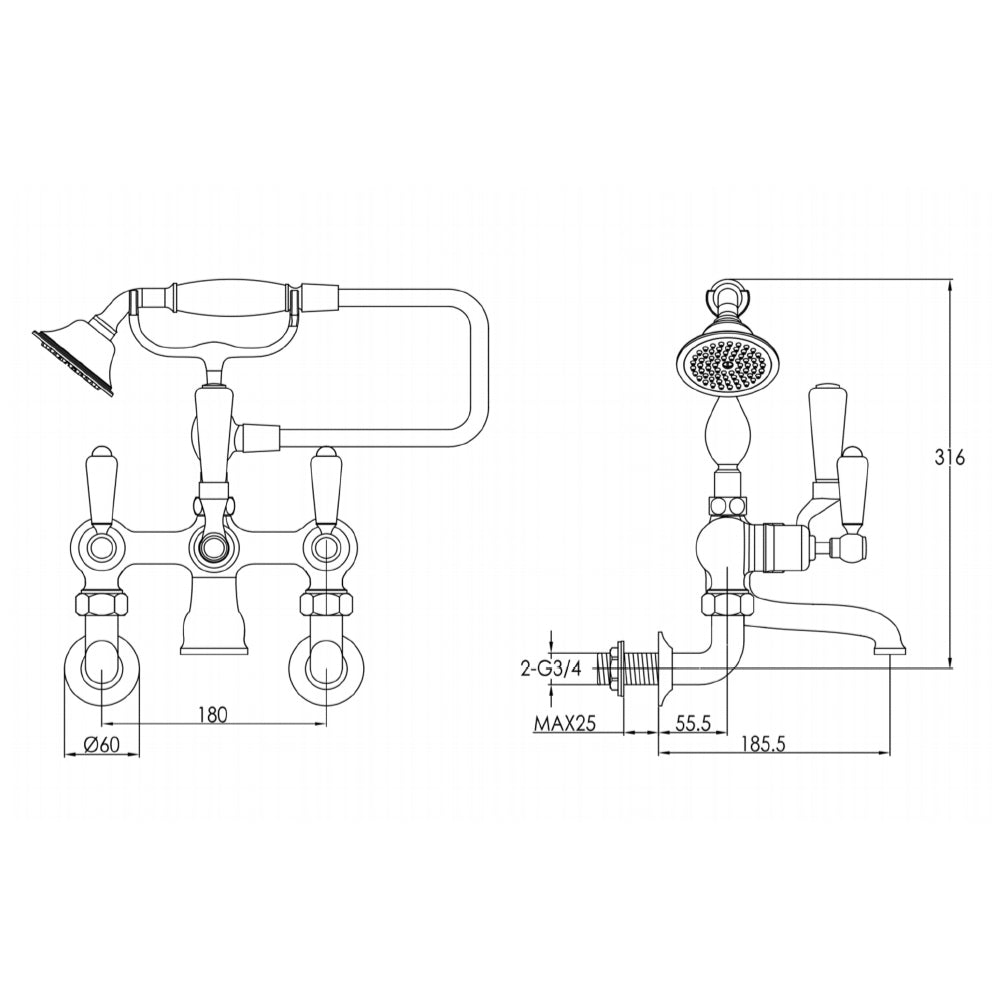

A flexible hose gives the telephone style handheld showerhead freedom of movement, while the cradle holder above the tap provides a convenient place to return it after use. This traditional wall mounted bath tap measures 316mm in height, 180mm in width and has a 185.5mm projection. It connects using G3/4" fittings, with 60mm round backplates neatly covering the wall mounting points.

If the bathroom layout calls for another installation method, deck-mounted and floor-mounted versions are also offered, with a matching chrome bath waste available separately.

Features & Benefits:

• Bright polished chrome surface
• Robust solid brass construction
• Traditional bridge-style mixer with handset
• Dual-function design for filling and rinsing
• Curved, fixed filling spout
• Independent levers manage hot and cold supplies
• Black H & C indices provide clear identification
• Centre diverter selects between filler and handset
• Telephone-style hand shower with flexible hose and cradle
• Quarter-turn ceramic discs support smooth, drip-resistant use
• Two-hole wall fitting leaves the tub rim uncluttered
• Simple to install and maintain
• Height: 316mm
• Width: 180mm
• Projection: 185.5mm
• G3/4" threaded inlets
• Minimum operating pressure: 0.2 bar
• 15-year manufacturer’s guarantee

Flow Rate Bath:

• 0.2Bar: 9L/min
• 0.5Bar: 10.5L/min
• 1Bar: 12.5L/min
• 2Bar: 17L/min
• 3Bar: 20.2L/min

Flow Rate Shower:

• 0.2Bar: 6L/min
• 0.5Bar: 7.6L/min
• 1Bar: 8.8L/min
• 2Bar: 12L/min
