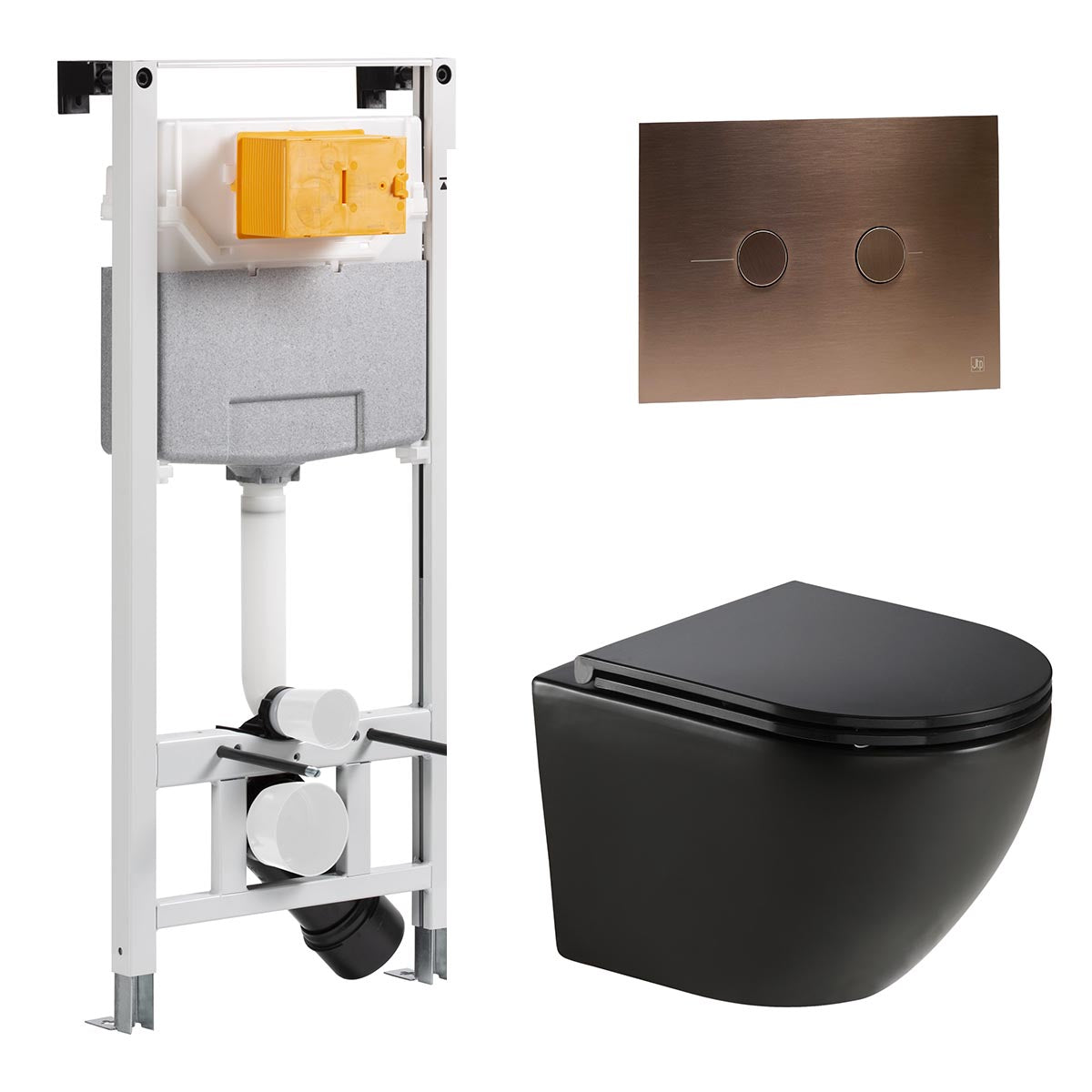

Wall Hung Toilet with Seat & 1.2m Pre-Wall W.C Cistern Frame and Brushed Bronze Flush Plate

Designed for modern pre-wall bathroom installations, this toilet set combines a matt black wall-hung toilet seat, 1.2 m floor-mounted W.C. frame, integrated cistern, and brushed bronze flush plate in one coordinated arrangement.

Crafted from porcelain, the D-shaped bowl provides a strong, non-porous and easy-care surface suited to everyday use and features a soft-close seat for added comfort and quieter closing. Its rimless interior helps reduce areas where residue may gather, while tornado flush technology improves water circulation for a more even rinsing performance. The rear outlet is arranged for connection within the concealed service area, keeping pipework neatly hidden from view.

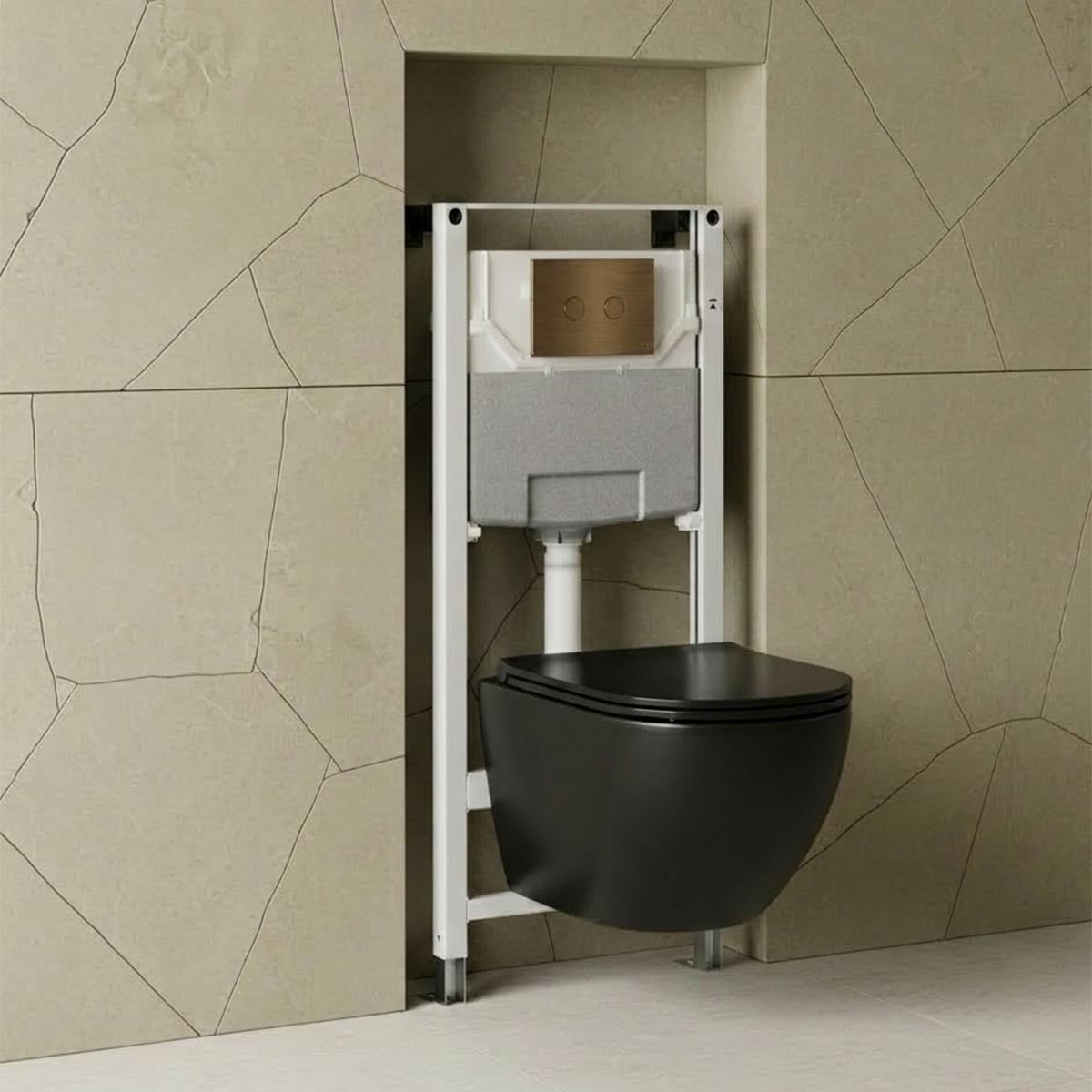

Providing reliable structural support, the 1200mm metal frame is designed for secure pre-wall installation and stable load distribution for the suspended unit. Its full-height construction houses the cistern and associated connections neatly within the framework. Supplied brackets allow accurate positioning, while the W.C. bend connects the outlet to the waste run. The built-in cistern features a dual flush system with 3L/ 6L options, supporting reduced or full-volume flushing for better water efficiency in daily use. All working components remain concealed behind the finished wall for a cleaner overall appearance.

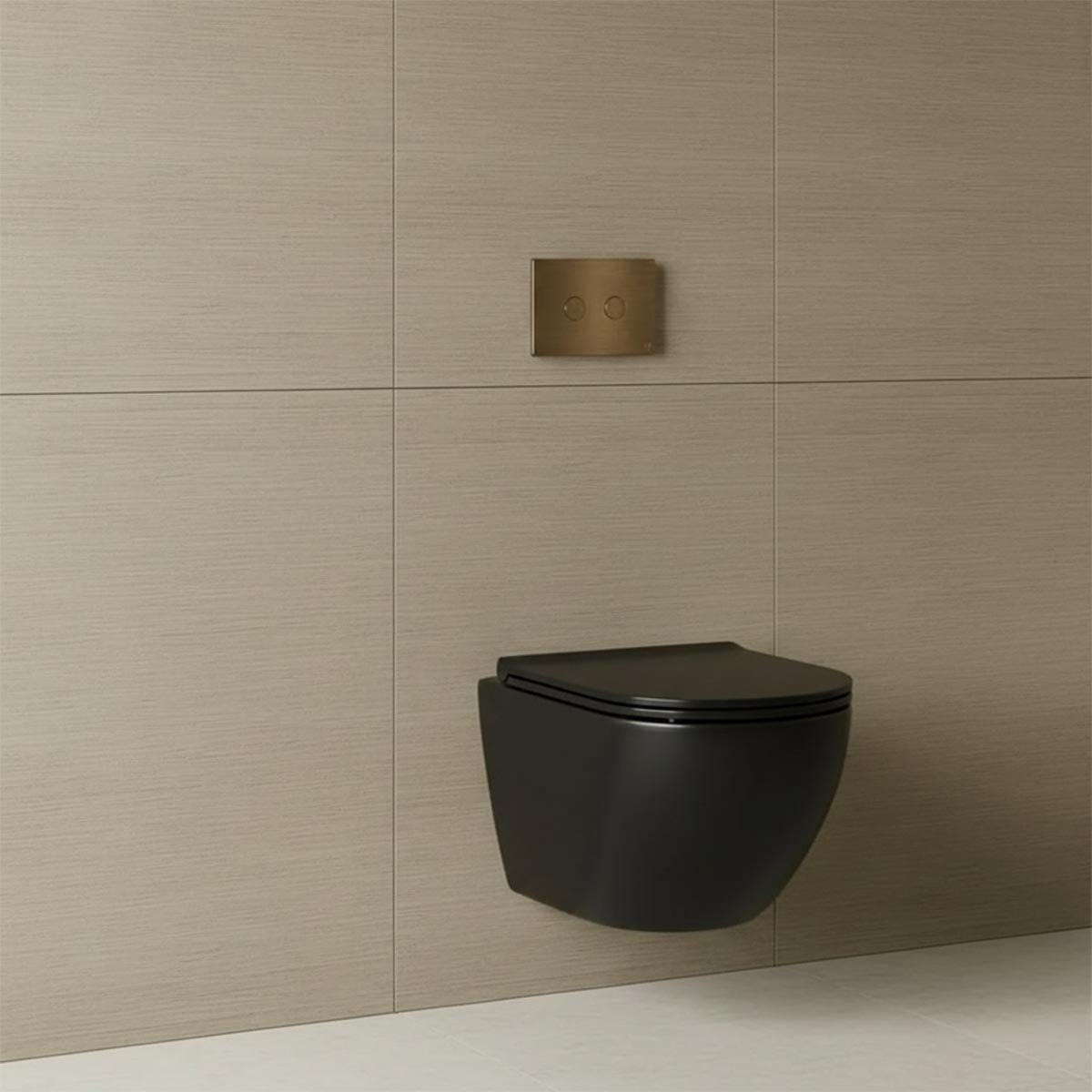

The brushed bronze flush plate acts as the visible operating point for the concealed cistern and is intended for front access installation. Its rectangular faceplate features two pneumatic push buttons for smooth and dependable operation, while also allowing convenient access for servicing and maintenance. Once fitted, only the toilet and flush plate remain on display.

Features & Benefits:

Wall Hung Toilet Pan:

• D-shaped wall hung toilet
• Matt black finish
• Strong porcelain build
• Rimless bowl for easy cleaning
• Tornado flush technology
• Rear outlet for concealed waste connection
• Height: 365mm
• Width: 365mm
• Projection: 495mm
• 2-year guarantee, extendable to 15 years on registration

Concealed Cistern & W.C. Frame:

• Floorstanding pre-wall metal support frame
• Made for wall hung toilet installation
• Concealed cistern for a cleaner look
• Includes brackets and W.C. bend
• Dual flush 3L/6L cistern
• Front flush installation
• WRAS approved
• Height: 1200mm
• Width: 500mm
• 2-year guarantee, extendable to 5 years on registration

Flush Plate:

• Dual-button flush plate
• Brushed bronze finish
• Pneumatic flush operation
• Height: 145mm
• Width: 215mm
• 2-year manufacturer guarantee
